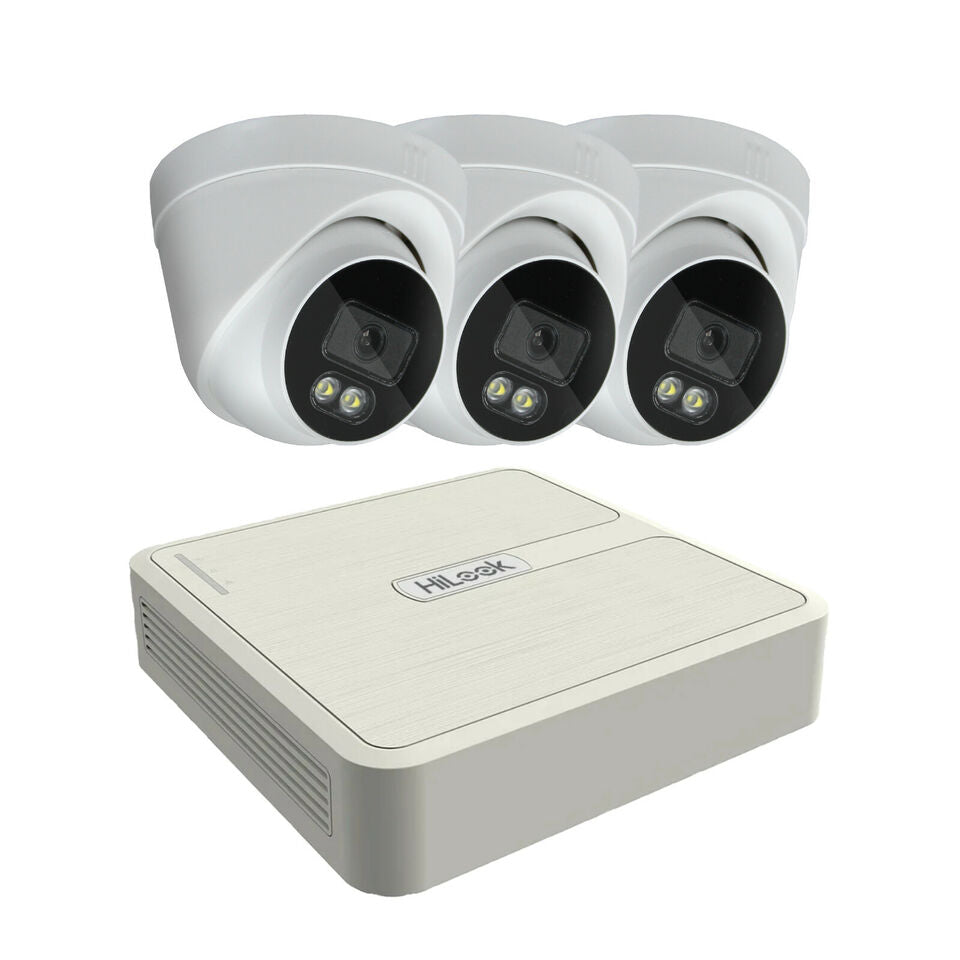

1X DVR 4-Channel Hikvision Hilook (DVR-104G)
1X HDD 1TB (pre installed)
3X 2MP Hizone Pro ColorVu & Built-in Microphone 1080P Cameras
3X 20M BNC Cables
1X 4-Way Power Splitter
1X Power Supply for Cameras
1X User Manual
1X Mouse
4-ch
DVR-104G
Video compression H.264+/H.264
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback 4-ch
Network
Remote connection 32
Network protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary interface
SATA 1, SATA interface
Capacity Up to 6 TB capacity for each disk
USB interface Rear panel: 2 × USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 8 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD) ≤1 kg (2.2 lb)
Camera
Image Sensor 2MP 24/7 ColorVu Lens
Signal System PAL/NTSC
Resolution 1080p x 1920p
Frame Rate 1080P @ 25 fps/30 fps
Min. Illumination 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
Lens 3.6mm fixed focal lens
Field of View 3.6mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°
Lens Mount M16
Light Alarm Solid Light Alarm (White Light)
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR / 2D DNR
Language English
Function Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Audio
Built-in Microphone
General
Operating Conditions -40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
Power Supply 12V DC ± 25%
Consumption Max. 5.1 W
Protection Level IP67 Waterproof
Material Main body: Metal, Enclosure: Plastic
White Light Range Up to 25m (up to 15m number plate effective)
Communication HIKVISION-C
Dimension 194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
Weight Approx. 350 g (0.77 lb.)
