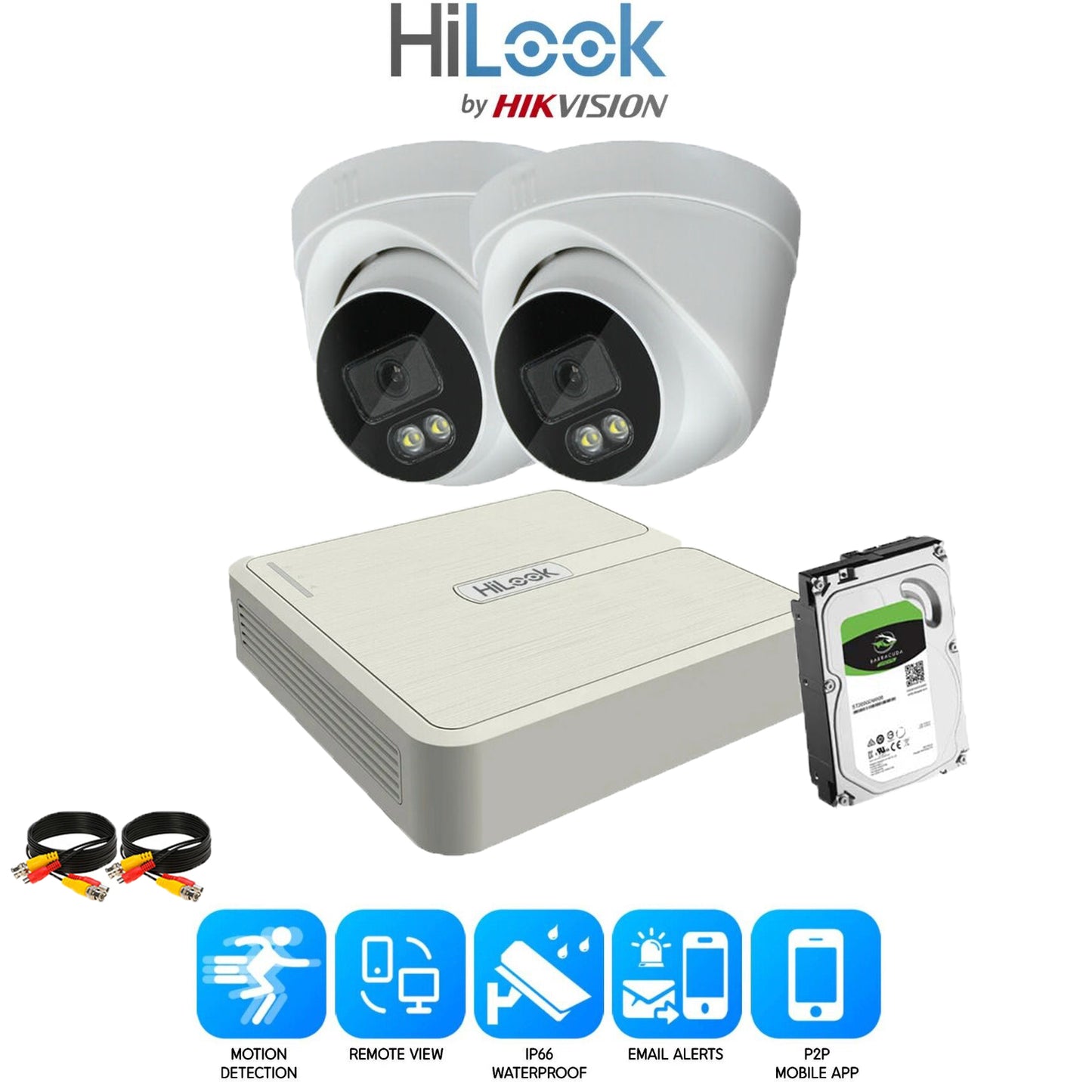

PACKAGE INCLUDED:

1X DVR 4-Channel Hikvision Hilook (DVR-104G)

1X HDD 1TB (pre installed)

2X  2MP Hizone Pro ColorVu & Built-in Microphone 1080P Cameras

2X 20M BNC Cables

1X 4-Way Power Splitter

1X Power Supply for Cameras

1X User Manual

1X Mouse

4-ch
DVR-104G
Video compression    H.264+/H.264
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame rate
Main stream:

When 1080p lite mode enabled:

1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

When 1080p lite mode not enabled:

For 720p stream access:

720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For SD stream access:

WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video bit rate    32 Kbps to 4 Mbps
Dual stream    Support
Stream type    Video, Video & Audio
Audio compression    G.711u
Audio bit rate    64 Kbps
Video and Audio
IP video input
1-ch (up to 5-ch)

Up to 1080p resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input    4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input    1080p25, 1080p30, 720p25, 720p30
AHD input    1080p25, 1080p30, 720p25, 720p30
HDCVI input    1080p25, 1080p30, 720p25, 720p30
CVBS input    PAL/NTSC
VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio output    1-ch, RCA (Linear, 1 KΩ)
Two-way audio    1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous playback    4-ch
Network
Remote connection    32
Network protocol    TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface    1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary interface
SATA    1, SATA interface
Capacity    Up to 6 TB capacity for each disk
USB interface    Rear panel: 2 × USB 2.0
Alarm in/out    N/A
General
Power supply    12 VDC, 1.5 A
Consumption (without HDD)    ≤ 8 W
Working temperature    -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity    10% to 90%
Dimension (W × D × H)    260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD)    ≤1 kg (2.2 lb)
Camera
Image Sensor    2MP 24/7 ColorVu Lens
Signal System    PAL/NTSC
Resolution    1080p x 1920p
Frame Rate    1080P @ 25 fps/30 fps
Min. Illumination    0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
Shutter Time    PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
Lens    3.6mm fixed focal lens
Field of View    3.6mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°
Lens Mount    M16
Light Alarm    Solid Light Alarm (White Light)
Day & Night    Color
WDR (Wide Dynamic Range)    ≥130 dB
Angle Adjustment    Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White Light    Auto/Off
Image Mode    STD/HIGH-SAT/HIGHLIGHT
AGC    Yes
Day/Night Mode    Color
White Balance    Auto/Manual
AE (Auto Exposure) Mode    WDR, BLC, HLC, Global, HLS
Privacy Mask    4 programmable privacy masks
Motion Detection    4 programmable motion areas
Noise Reduction    3D DNR / 2D DNR
Language    English
Function    Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light
Interface

Audio

Built-in Microphone
General
Operating Conditions    -40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
Power Supply    12V DC ± 25%
Consumption    Max. 5.1 W
Protection Level    IP67 Waterproof
Material    Main body: Metal, Enclosure: Plastic
White Light Range    Up to 25m (up to 15m number plate effective)
Communication    HIKVISION-C
Dimension    194.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)
Weight    Approx. 350 g (0.77 lb.)
