HIKVISION HILOOK COLOURVU 5MP CCTV SYSTEM UHD AUDIO MIC DVR CAMERAS SECURITY KIT 4CH DVR 2xCameras 1TB HDD
HIKVISION HILOOK COLOURVU 5MP CCTV SYSTEM UHD AUDIO MIC DVR CAMERAS SECURITY KIT 4CH DVR 2xCameras 1TB HDD

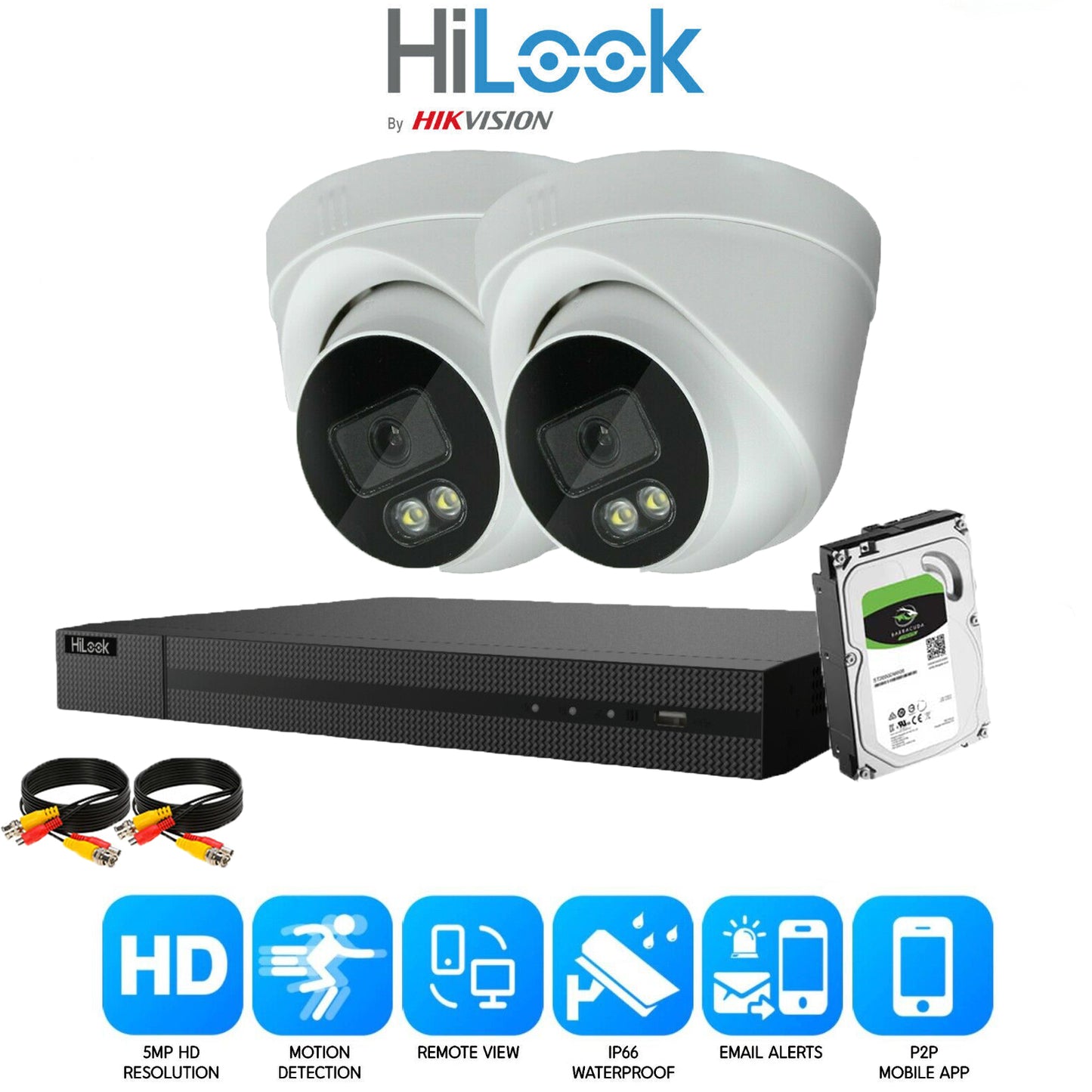

PACKAGE INCLUDED
1X DVR 4 Channel Hilook, (DVR 204Q-K1)
1X HDD 1TB (pre installed)
2X 5MP HiZone Pro ColorVu camera (if selected) (N506TWVU-5MP)
2X 20M BNC Cable
1X Power Splitter
1X Power Supply for Cameras
Recording device (DVR) and the cameras are covered by a 2 year back-to-base manufacturer warranty.
24/7 COLOR IMAGE NO MATTER DAY OR NIGHT
The sensor enables the cameras to deliver Full HD Colorful images day and night, seeing enhanced visual evidence, like the colour of the cars, clothing and more. Enjoy much clearer and less fish-eye effective videos than other 5mp cameras with our high-performance sensor.
HiZone Pro Camera
N506TWVU-5MP
Image Sensor 5MP Resolution
Signal System PAL/NTSC
Resolution 2560 (H) × 1920 (V)
Frame Rate 5MP
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm fixed focal lens
Field of View 2.8 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night 24/7 Colour Imaging
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode DWDR,BLC,HLC,Global,HLS
Noise Reduction 2D DNR
Language English
Function Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.5 W
Protection Level IP66
Material Main body: Metal, Enclosure: Plastic
White Light Range Up to 20m (10m number plate reading effective)
Communication HIKVISION-C
Dimension Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
Weight Approx. 318 g (0.70 lb.)
4-ch
Video / Audio Input
Video compression H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input 4CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input 5MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
AHD Input 5MP
CVI Input 5MP
CVBS Input Support
IP Video Input 1-ch Up to 5MP resolution
Audio compression G.711u
Audio input / Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution 5MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF
Frame rate 5MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF
Video bit rate 32 Kbps – 6 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 4CH
Network Management
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity
External Interface
Network interface 1; 10M / 100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB2.0
General
Power supply 12v DC
Consumption Max 8W
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 260 x 222 x 45 mm
Weight Approx. 1Kg
WDR is the acronym for Wide Dynamic Range. It is a technology that some video cameras have and that serves to compensate for problems with exposure to light. With WDR technology, the camera compensates for images where there are dark and bright areas, in which there is a great decompensation and we cannot see sharp images if we use a normal camera. With this technology, a balance between brightness and darkness is achieved, notably improving image quality and obtaining a more uniform result, thanks to this dynamic treatment of light.
300 TOSHIBA SURVEILLANCE HARD DRIVE (UP TO 6TB)
Use for:
• Surveillance Digital Video Recorders (DVRs)
• Surveillance Network Video Recorders (NVRs)
• Hybrid DVRs (analog and IP)
NETWORK & ETHERNET ACCESS
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management. Max. 8/16/32 Mbps incoming bandwidth, 72/96/128 Mbps total bandwidth.
ADVANTAGE COLORVU SECURITY CAMERAS
In complete darkness, the built-in supplement light turns on automatically to help security cameras capture full-color night vision images. Not only can prove color night vision the light can also be used as floodlights to light up to your pathway, garden, porch or yard.
MOTION DETECTION & RICH ALERTS
The camera security system detects moving objects and triggers alerts when danger occurs. Users will be sent push notifications immediately to their smart devices, allowing for quick action when trouble arises.
24/7 Continuous Record: The DVR will record videos 24/7 regardless of what’s happening day & night.
One of the more obvious advantages of colour cameras is that you are able to view your images in colour. Not only is the colour more appealing to the user, but also it is crucial when it comes time to identify key components of a perpetrator. If they ask you what colour clothing the individual is wearing or what colour car they drive away in, you will have all of that information readily available.
MORE THAN JUST VIDEO
These listen-in security cameras come with a built-in microphone that can hear and record audio, which provides you with additional evidence (such as voices) It will extend your security coverage as well. Not only that, you will receive real-time alerts, including push notifications to your smartphones, email alerts and the warning sound of the DVR buzzer, whenever there is movement detected by those cameras.
