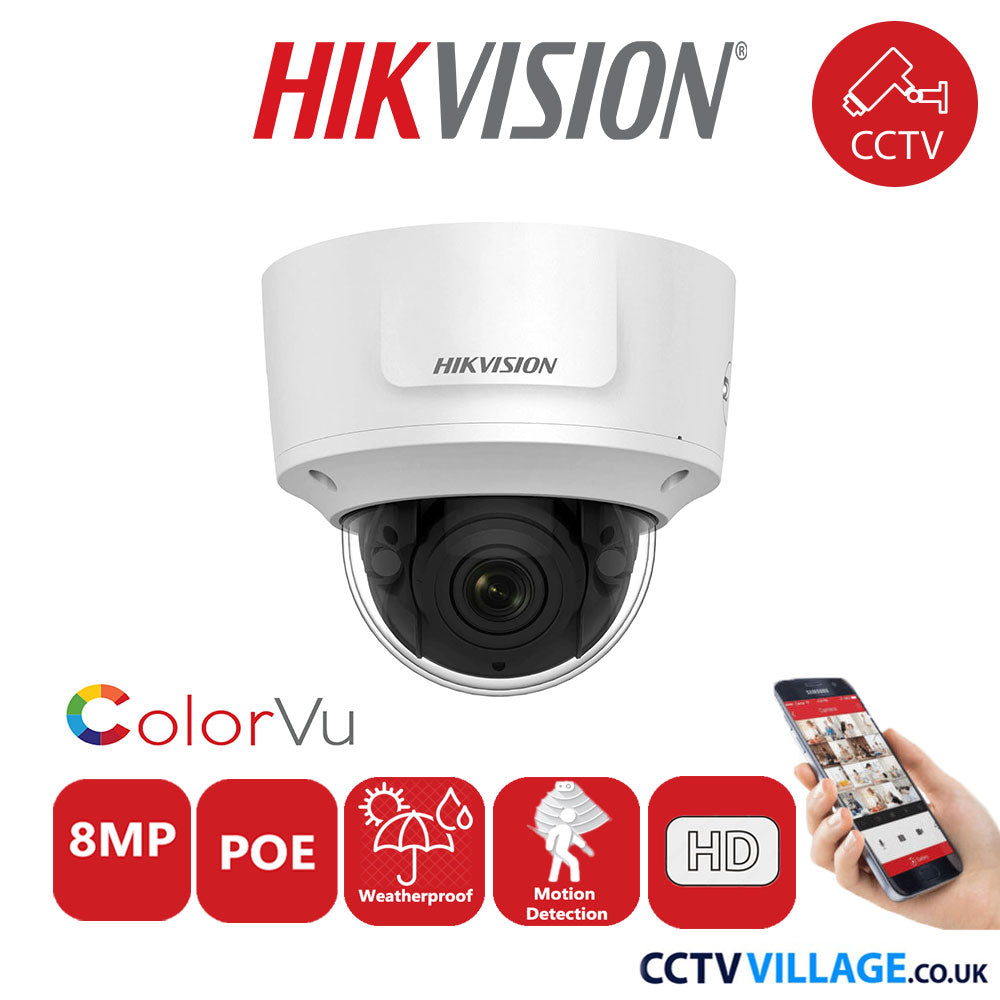

Hikvision 8MP DS-2CD2783G0-IZS Dome Camera

Camera
Image Sensor
1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR Cut Filter
Wide Dynamic Range
120dB
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
DNR
3D DNR
Lens
Lens
2.8 to 12 mm
Auto-Iris
No
Aperture
F1.6
Focus
Auto
FOV
Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
Lens Mount
Φ14
Lens Type
Motorized
Illuminator
IR Range
Up to 30 m
Wavelength
850nm
Decoding
Audio compression
G722.1/G.711/G726/MP2L2/PCM/MP3
Video
Max. Resolution
3840 × 2160
Main Stream
50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 16 Mbps
SVC
H.264 and H.265 encoding support
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHZ/48kHz
Smart Feature-Set
Smart Event
Line crossing detection, intrusion detection, face detection
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Image Enhancement
BLC/3D DNR/HLC
Image Setting
Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Wi-Fi
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users ,3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Firmware Version
5.6.3
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm
1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output
1Vp-p composite output (75 Ω) (For adjustment only)
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Approval
Impact Protection
IK10
Compression Standard
H.264+
Main stream supports
H.265+
Main stream supports
Smart Feature-set
Face Detection
Yes
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Reset
Yes
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
Material
Metal
Dimensions
Φ153.4 × 133.1 mm (Φ6" × 5.2")
Weight
Camera: 1287 g (2.8 lb.)
Interface Protection
IP66
