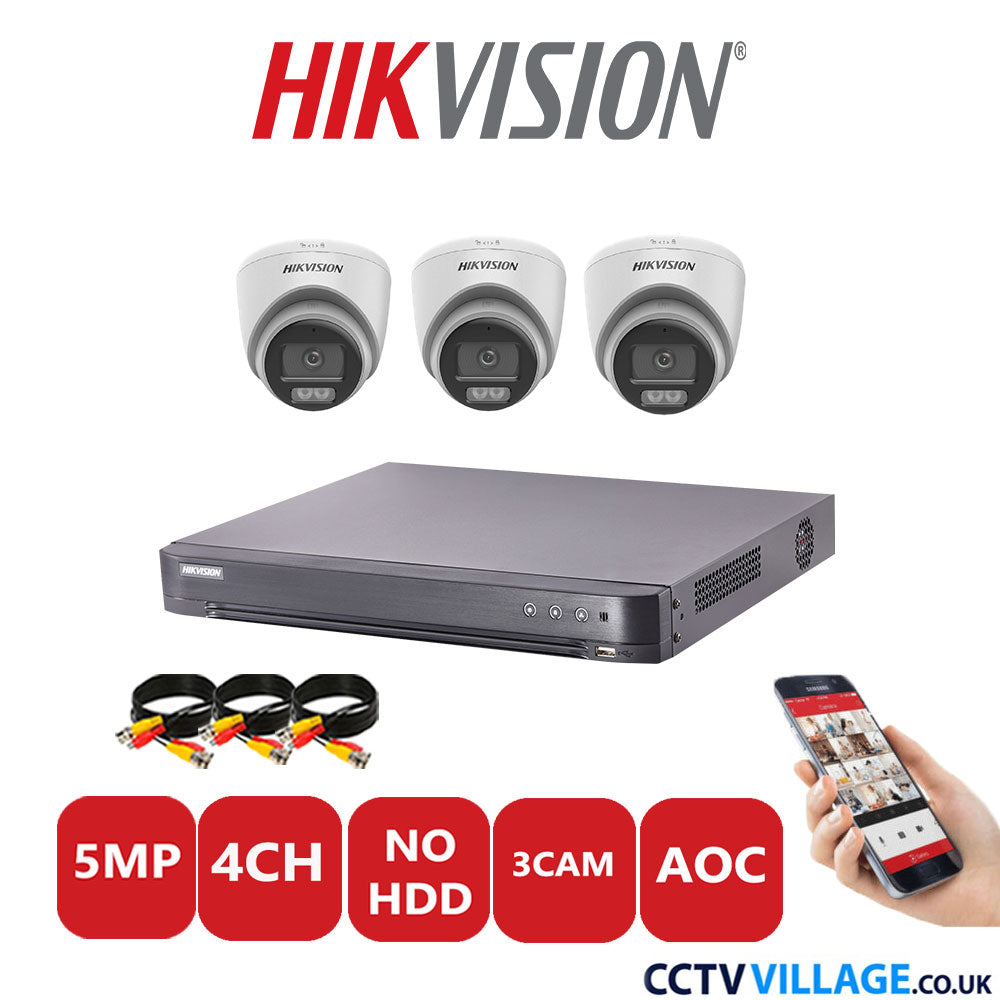

Hikvision 5MP system three cameras with audio without HDD

What is included in the box?

1x Hikvision DVR 4 channel (iDS-7204HQHI-K1/2S)

(No HDD Included)

3x Hikvision 5MP cameras in White (DS-2CE72KF0T-LFS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

--------------------------------------------------------------------

DVR's Technical Specifications :

Recording
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
Main stream:

When 1080p lite mode not enabled:

For 4 MP stream access:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate
32 Kbps to 6 Mbps
Dual stream
Support
Stream type
Video, Video & Audio
Audio compression
G.711u
Audio bit rate
64 Kbps
Video and Audio
IP video input
2-ch (up to 6-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input
4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input
1080p25, 1080p30, 720p25, 720p30
CVBS input
PAL/NTSC
HDMI/VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz,HDMI/VGA Simultaneous Output

Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output
1-ch, RCA (Linear, 1 KΩ)
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback
4-ch
HDTVI input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S, for channel 1/2 of iDS-7208HQHI-K1/4S, and for channel 1/2/3/4 of iDS-7216HQHI-K1/4S.

CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Network
Remote connections
32
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Alarm in/out
N/A
USB interface
2 × USB 2.0
Serial interface
RS-485 (half-duplex)
General
Power supply
12 VDC
Working temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity
10% to 90%
Weights (without HDD)
≤ 1.16 kg (2.6 lb)
Consumption(without HDD)
≤ 10 W
Dimensions(W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

-----------------------------------------------------

Camera's Technical Specifications :

Camera
Image Sensor
3K CMOS
Signal System
PAL/NTSC
Resolution
2960 (H) × 1665 (V)
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

CVI: 4 MP @25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination
0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens
2.8 mm, 3.6 mm fixed focal lens
Field Of View
2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°

3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°

Lens Mount
M12
Light Alarm
Solid Light Alarm (White Light)
Day & Night
ICR
WDR (Wide Dynamic Range)
Digital WDR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
Supplement Light Type
IR,

White Light

Supplement Light Range
IR: Up to 40 m,White Light: Up to 40 m
Smart Supplement Light
Yes
White Light
Auto/Off
Image Mode
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Day/Night Mode
Auto
White Balance
Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode
HLS;DWDR;BLC;HLC;Global
Noise Reduction
2D DNR
Language
English
Function
Smart IR;Brightness;Sharpness;AGC;Anti-Banding
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Audio In
Built-in mic
General
Power
12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Protection Level
IP67
Material
Enclosure: Plastic Main body: Metal
Communication
HIKVISION-C
Dimension
Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
Weight
Approx. 320 g (0.71 lb.)
