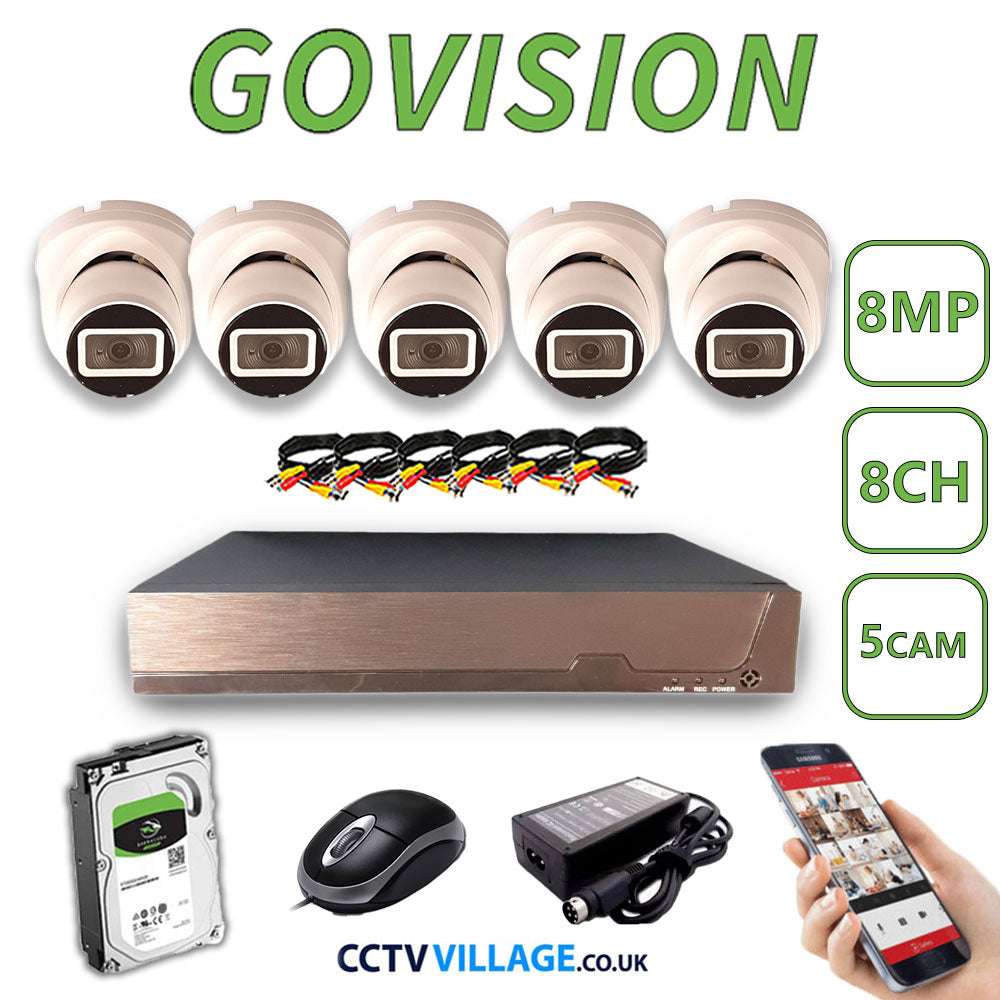

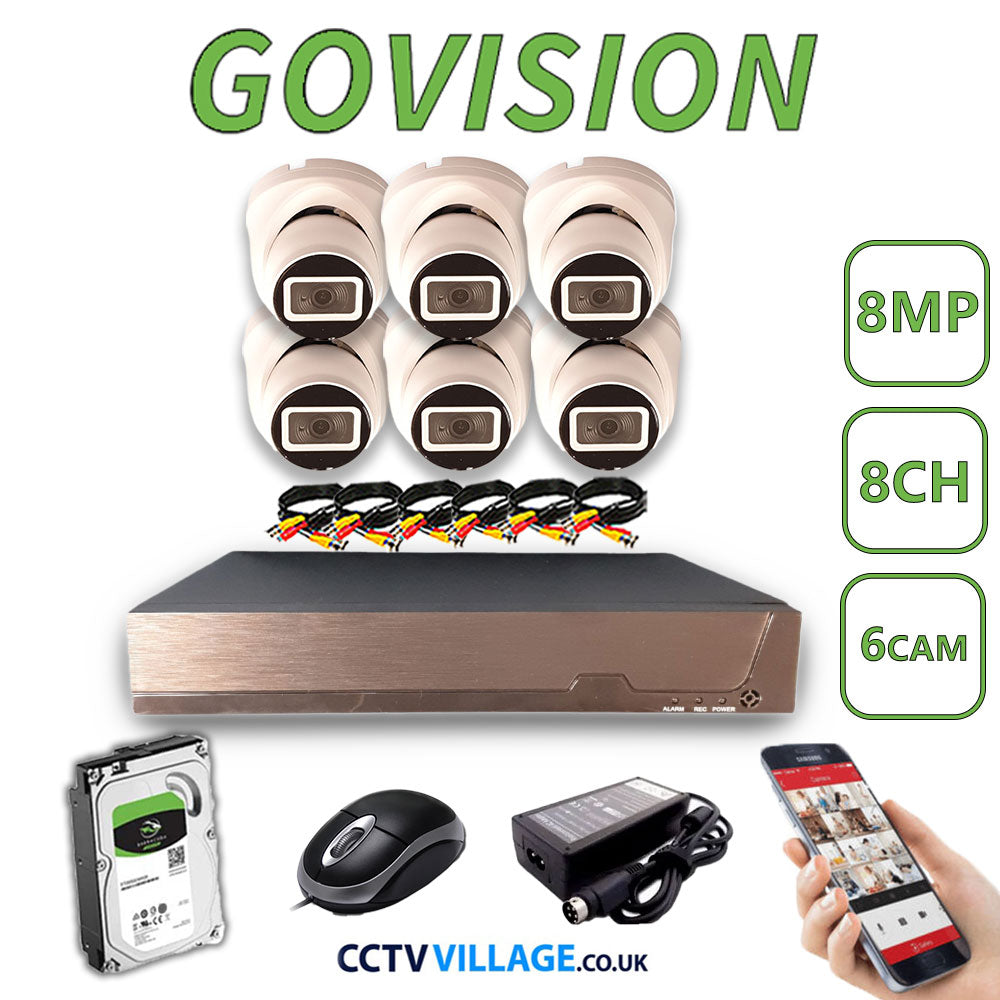

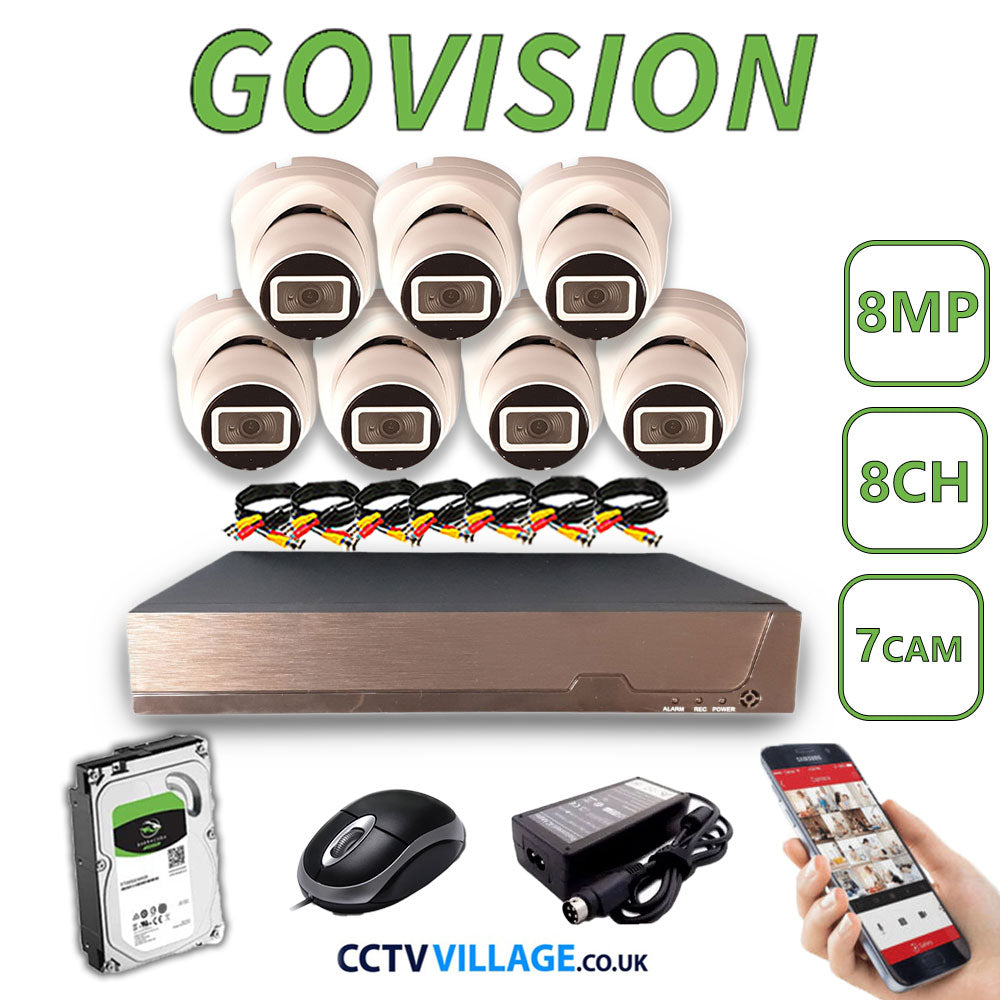

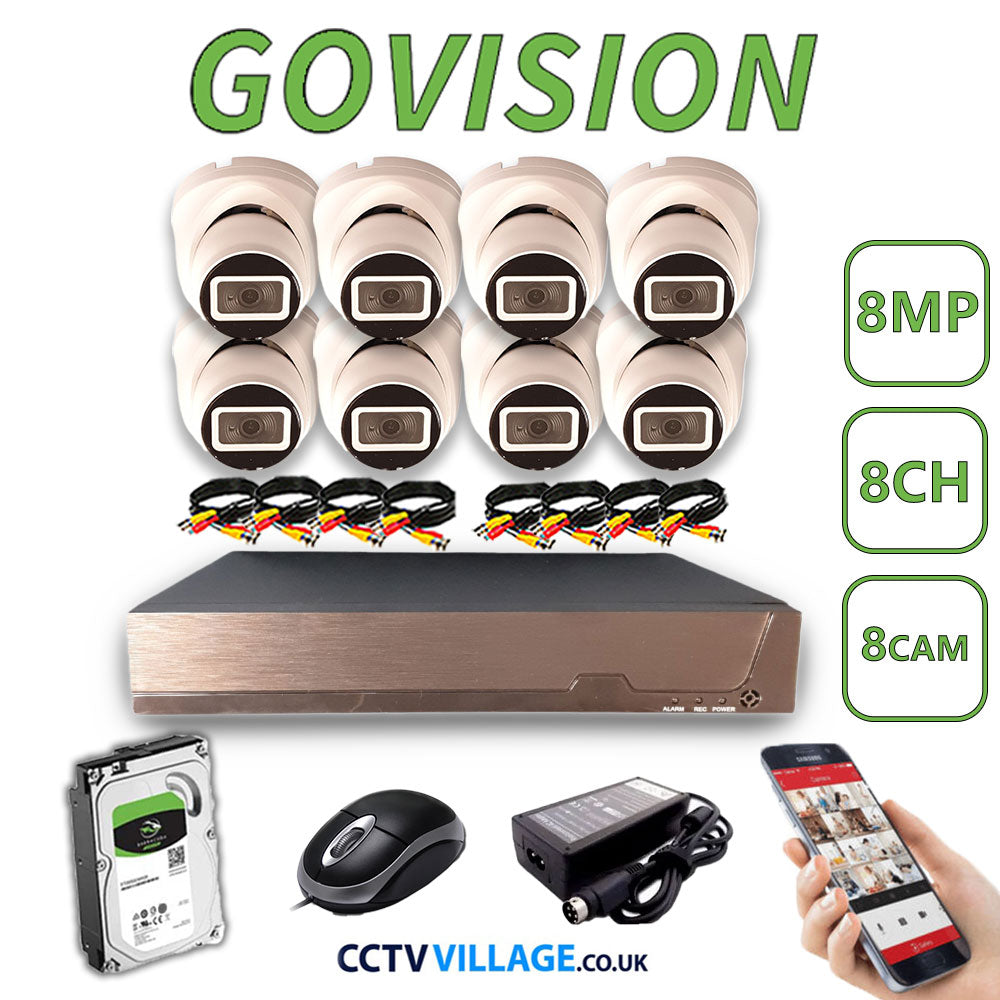

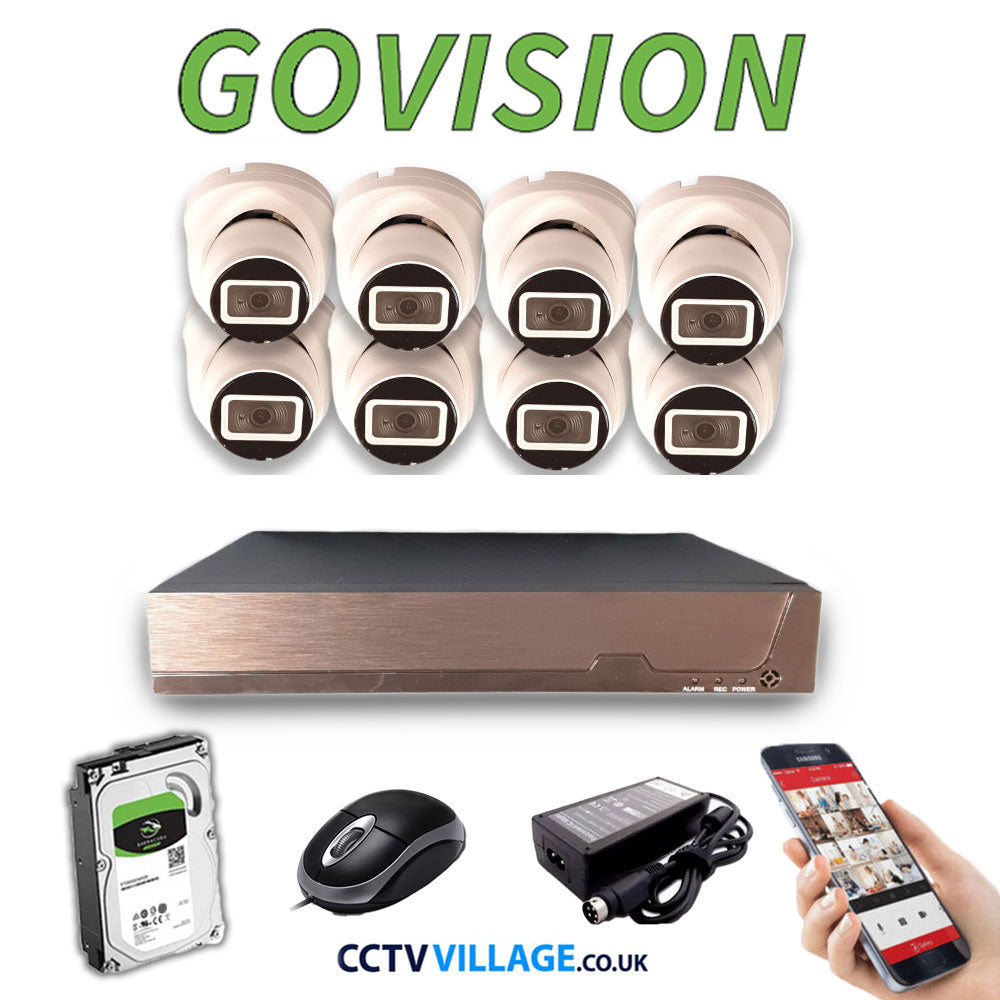

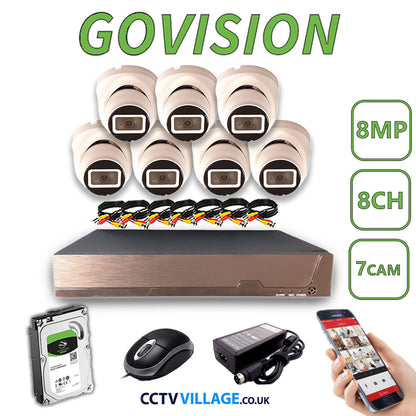

Govision 8MP CCTV System with 8CH DVR

What is included in the box?

1x Govision DVR 8 channel - (DVR-D3008H-8MP)

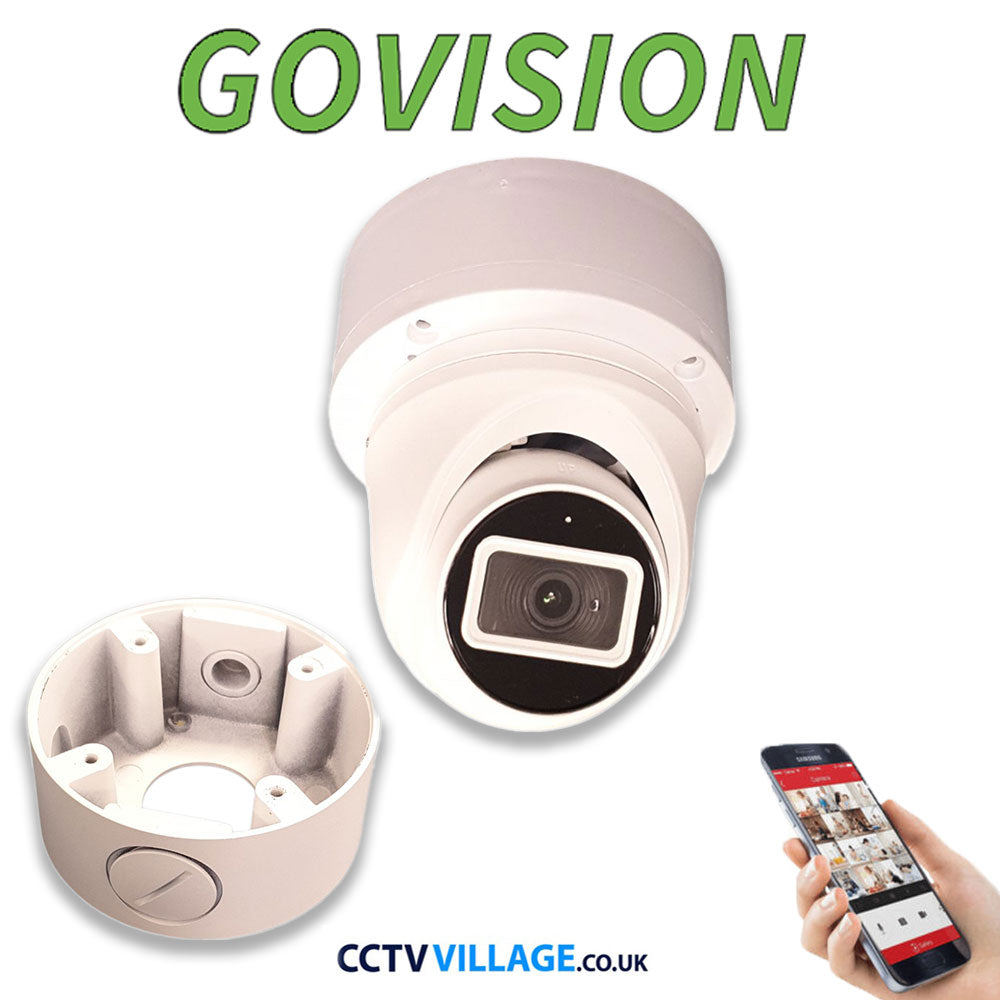

Up to 8x Govision 8MP camera in white (GV505TW-8MP)

1TB , 2TB or 4TB HDD installed inside the DVR

5,6,7 or 8 base for each camera (if you choose the option)

Camera power supply

Power supply & mouse for DVR

20m BNC cable for each camera

NOTE:

If you include the hard drive option, recording will work out of the box.

If you don’t, you must connect your own hard drive; otherwise, the system will only display video and won’t record.

Camera's Technical Specifications:

Camera
GV505T8MPW
Image Sensor    1/2.7 inch CMOS
Effective Pixels    3840 (H)× 2160 (V), 4K
Scanning System    Progressive
Electronic Shutter Speed    PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio    >65dB
Minimum Illumination    0.03Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance    30m (98.4 ft)
IR On/Off Control    Auto; manual
IR LED Number    1
Pan/Tilt/Rotation Range    Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type    Fixed-focal
Mount Type    M12
Focal Length    2.8mm
Max. Aperture    F2.0
Angle of View    2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical)
Iris Type    Fixed iris
Close Focus Distance    2.8mm: 1.0 m (3.3 ft)
Video
Frame Rate    CVI: 4K@25/30fps; 4K@15fps; 5M@20fps;
4M@25fps/30fps;
AHD: 4K@15fps;
TVI: 4K@15fps;
CVBS: 960H
Resolution    4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440);
960H (960 × 576/960 × 480)
Day/Night    Auto switch by ICR
BLC    BLC/HLC/WDR
WDR    DWDR
White Balance    Auto; manual
Gain Control    Auto; manual
Noise Reduction    2D NR
Smart IR    Yes
Mirror    Off/On
Privacy Masking    Off/On (8 area, rectangle)
Certifications
Certifications    CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output    Video output choices of CVI/TVI/AHD/CVBS by one
BNC port

Power
Power Supply    12V ±30% DC
Power Consumption    Max 4.3W (12V DC, IR on)
Environment
Operating Temperature    -40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
Storage Temperature    -40°C to +60°C (-40°F to 140°F);
<95% (non-condensation)
Protection Grade    IP67
Structure
Casing    Cover: plastic; inner core: metal
Camera Dimensions    Φ97 mm × 85.8 mm (Φ3.82"×3.38")
Net Weight    0.3Kg (0.66lb)
Gross Weight    0.38Kg (0.84lb)

DVR's Technical Specifications:

8-ch
Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    8CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input    5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVI Input    4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input    Support
IP Video Input    4-ch Up to 6MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate    Main stream:
8 MP@8fps / 5 MP@12fps/4 MP@15fps/3 MP@18fps / 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)
Sub-stream:
WD1/4CIF/CIF@25fpss
Video bit rate    32 Kbps - 10 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    8CH
Network Management
Remote Connections    64
Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    1 SATA interface
Capacity    Up to 8 TB capacity
External Interface
Network interface    1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB interface    Rear panel: 2 x USB2.0
General
Power supply    12v DC
Consumption    Max 20W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    315 × 242 × 45 mm
Weight    Approx. 2Kg
