Hikvision 8MP system one camera with audio without HDD

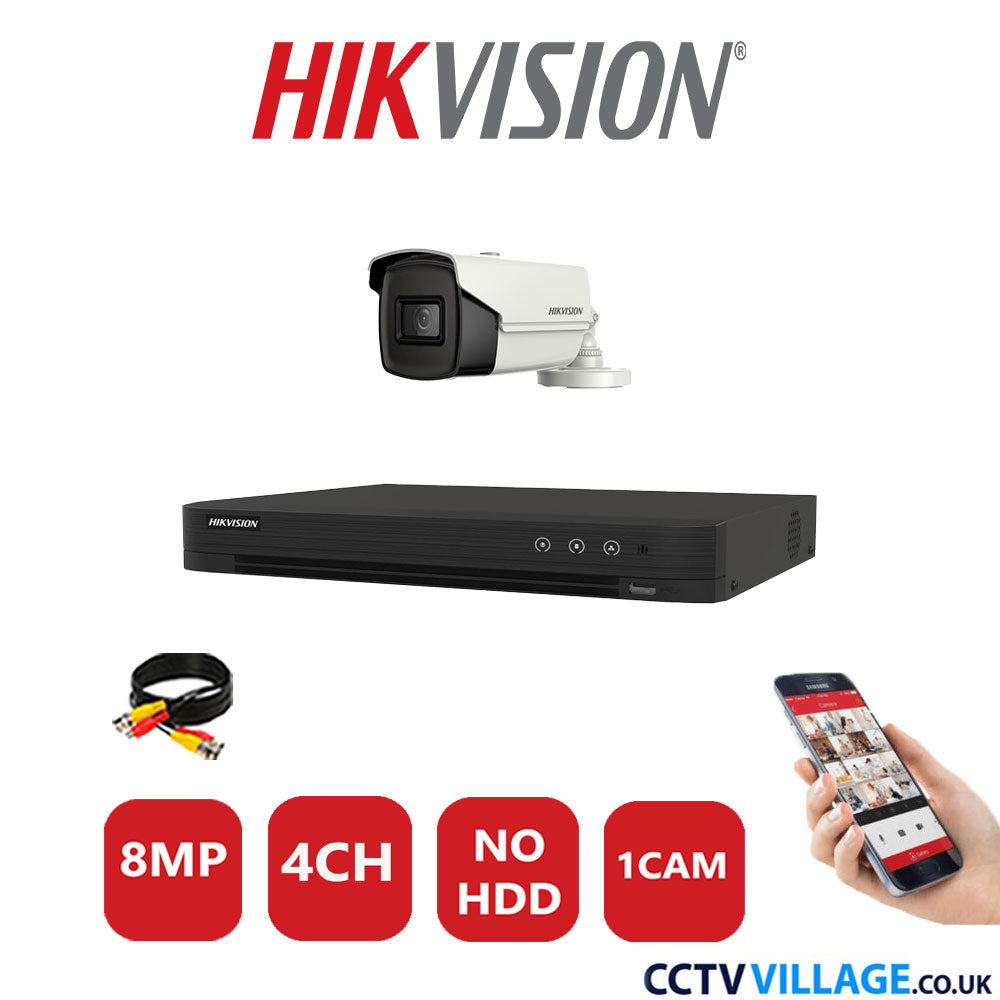

What is included in the box?

1x Hikvision DVR 4 channel (iDS-7204HUHI-M1/S)

(No HDD Included)

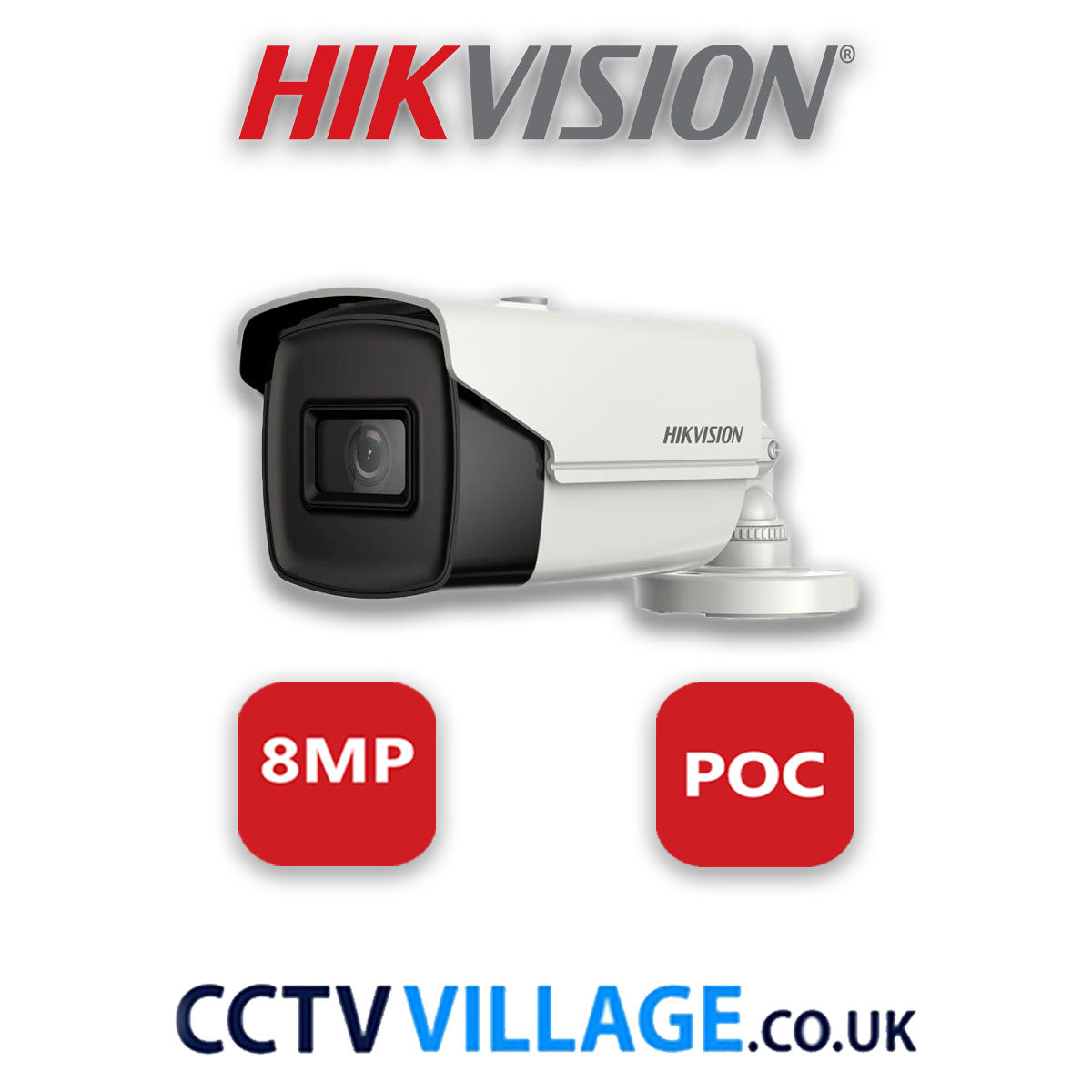

1x Hikvision 8MP camera in White (DS-2CE16U1T-IT3F)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

--------------------------------------------------------------------

DVR's Technical Specifications :

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis
Up to 4-ch
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search
Video and Audio
IP Video Input
2-ch (up to 6-ch)

Up to 8 MP resolution

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
HDMI:

1-ch, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

VGA:

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback
4-ch
HDTVI Input
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input
5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 10 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
96Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection
32
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 2.0

Alarm In/Out
N/A
General
Power Supply
12 VDC
Consumption
≤ 10 W
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight
≤ 1.16 kg (2.6 lb)

-----------------------------------------------------

Camera's Technical Specifications :

Camera
Image Sensor
8.29 MP progressive scan CMOS
Max. Resolution
3840 (H) × 2160 (V)
Min. Illumination
0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Focal Length & FOV
102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
Lens Mount
M16
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 60 m
Smart Supplement Light
Yes
Image Settings
Brightness;Sharpness;AGC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI: 8MP@12.5fps, 8MP@15fps

AHD: 8M@12.5fps, 8M@15fps

CVBS: 960H P/N

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC;HLC
Noise Reduction
2D DNR
White Balance
Auto/Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS;1 HD analog output
General
Power
12 VDC ± 25%, max. 5.3 W

*You are recommended to use one power adapter to supply the power for one camera.

Material
Front cover: Metal, Main body: Plastic
Dimension
81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
Weight
Approx. 435 g (0.96 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
