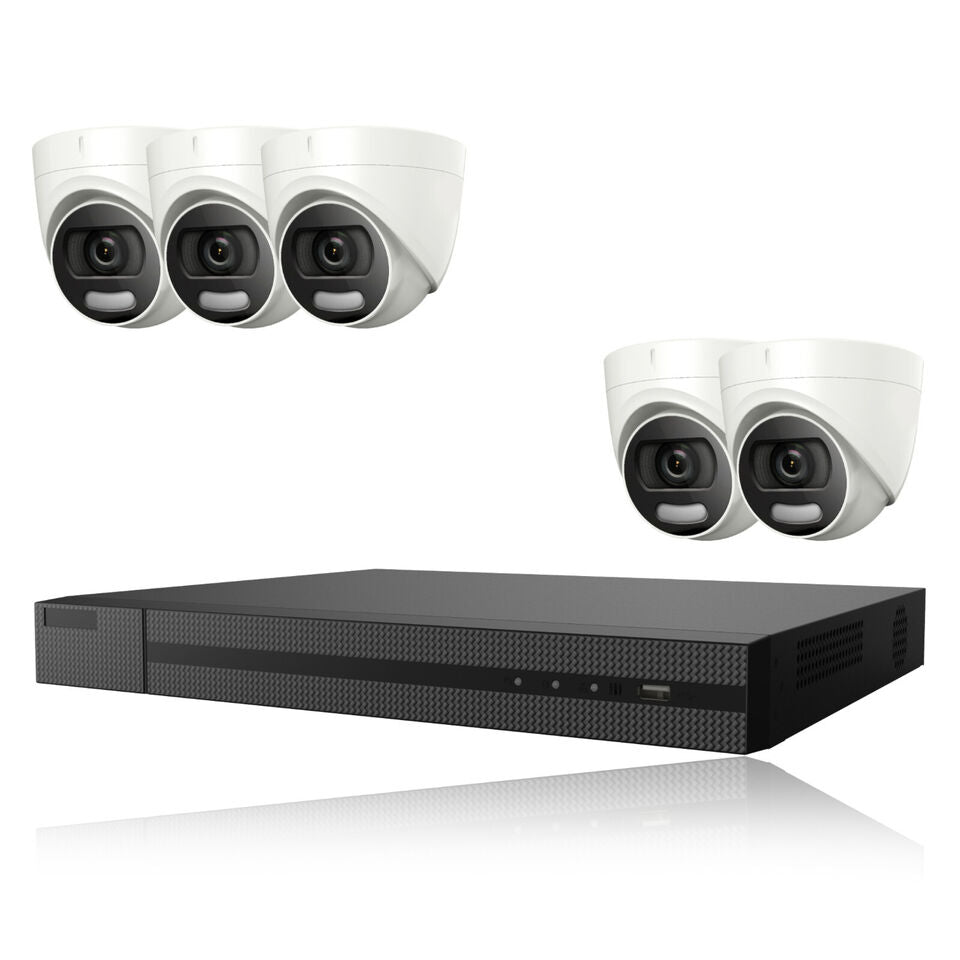

5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 8CH DVR 5x Cameras 6TB HDD

5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 8CH DVR 5x Cameras 6TB HDD

Regular price £474.00
Regular price Sale price £474.00
Sale Sold out
Including VAT. Shipping calculated at checkout.
  • Description
  • Description
  • ITEM DESCRIPTION

    • 1X DVR 8 Channel Hizone Pro Digital Video Recorder
    • 1X HDD 6TB (pre installed)
    • 5X Hizone Pro 5MP ColorVu camera, [ACT750W/G]
    • 5X 20M BNC cables
    • 1X Power Splitter
    • 1X Power Supply for Cameras
    • Video / Audio Input
      Video compression    H.265+/H.265/H.264+/H.264
      Analog and HD-TVI Video Input    8CH; BNC interface (1.0Vp-p, 75 Ω)
      HD-TVI Input    5MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
      Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
      AHD Input    1080P, 720P
      CVI Input    1080P, 720P
      CVBS Input    Support
      IP Video Input    2-ch Up to 5MP resolution
      Audio compression    G.711u
      Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
      Video / Audio Output
      HDMI / VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
      Encoding resolution    When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
      When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
      Frame rate    Main stream:
      When 1080p Lite mode not enabled:
      For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      For 3 MP stream access: 3 MP/1080p/720p….@15fps
      For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)
      For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)
      When 1080p Lite mode enabled:
      For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
      For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
      For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      Sub-stream:
      WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps
      Video bit rate    32 Kbps – 6 Mbps
      Audio output    1-ch, RCA (Linear, 1KΩ)
      Audio bit rate    64 Kbps
      Dual-stream    Support
      Stream type    Video, Video & Audio
      Synchronous playback    8CH
      Network Management
      Remote Connections    64
      Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
      Hard Disk
      SATA    1 SATA interface
      Capacity    Up to 6 TB capacity
      External Interface
      Network interface    1; 10M / 100M self-adaptive Ethernet interface
      USB interface    Rear panel: 2 x USB2.0
      General
      Power supply    12v DC
      Consumption    Max 12W
      Working temperature    -10 °C ~ +55 °C
      Working humidity    10% ~ 90%
      Dimensions (W x D x H)    260 x 222 x 45 mm
      Weight    Approx. 1Kg
      Camera Specification
      ACT750F
      Image Sensor    5 MP CMOS
      Signal System    PAL/NTSC
      Resolution    2560 (H) × 1944 (V)
      Frame Rate    TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
      Min. illumination    0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
      Shutter Time    PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
      Lens    2.8 mm fixed lens
      Horizontal Field of View    2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
      Lens Mount    M16
      Strobe Light Alarm    Yes
      WDR (Wide Dynamic Range)    ≥130 dB
      Angle Adjustment    Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
      Menu
      White Light    Auto/ Off
      Image Mode    STD/HIGH-SAT
      AGC    Yes
      Day/Night Mode    Color
      White Balance    Auto/Manual
      AE (Auto Exposure) Mode    WDR/ BLC/ HLC/ Global/ HLS
      Noise Reduction    3D DNR/2D DNR
      Language    English
      Function    Brightness, Sharpness, Mirror, Anti-Banding, Smart Light
      Interface
      Video Output    1 HD analog output
      General
      Operating Conditions    -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
      Power Supply    12 VDC ± 25% / PoC.af*You are recommended to use one power adapter to supply the power for one camera.
      Power Consumption    Max. 4 W
      Protection Level    IP67
      Material    Main Body: Metal, Enclosure: Plastic
      White Light Range    Up to 20 m
      Communication    HIKVISION-C
      Dimensions    Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
      Weight    Approx. 350 g ( 0.77 lb.)
