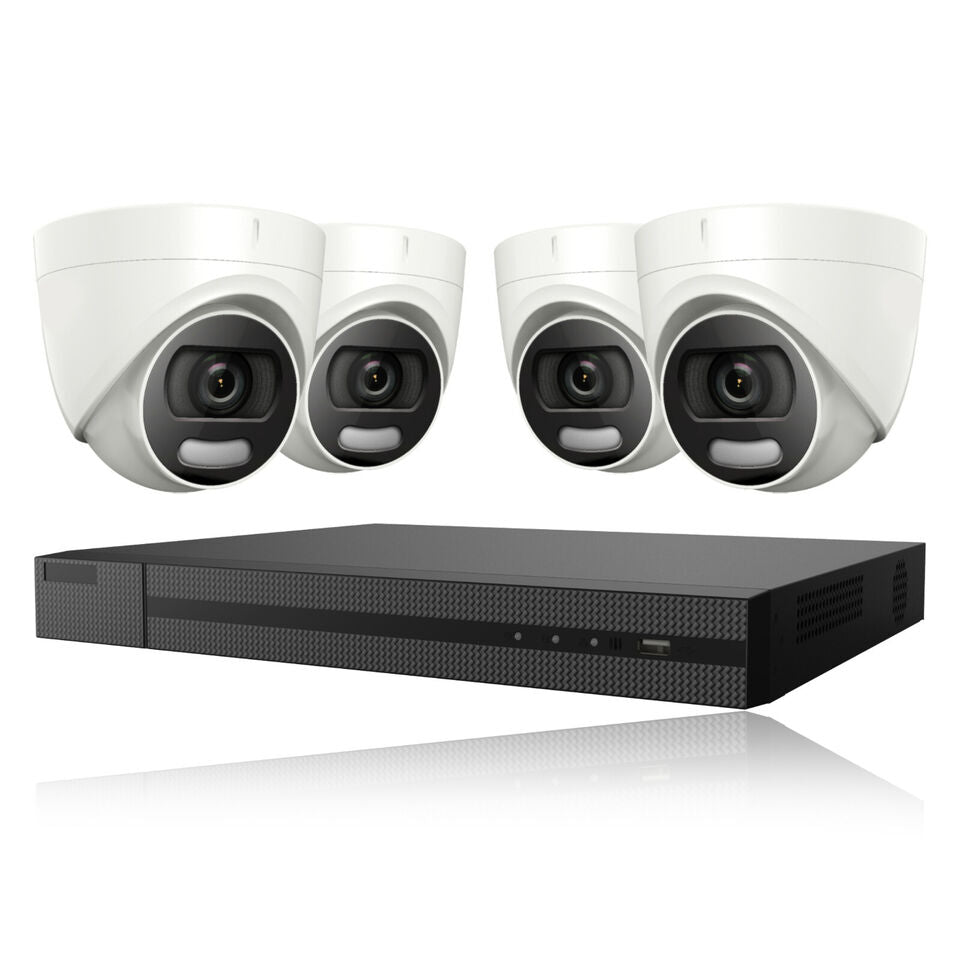

• 1X DVR 8 Channel Hizone Pro Digital Video Recorder
• 1X HDD 1TB (pre installed)
• 4X Hizone Pro 5MP ColorVu camera, [ACT750W/G]
• 4X 20M BNC cables
• 1X Power Splitter
• 1X Power Supply for Cameras


• Recording device (DVR) and the camera are covered by 2 years back-to-base manufacturer warranty.

• 2K UHD Video(High definition 2k video viewing, recording and playback)

  A 2K camera provides a video resolution of (2560×1440) with a 5 megapixel (MP) image sensor. These cameras are mainstream in today’s competitive security camera industry and deliver much clearer and sharper images and better quality videos than 1080p and 720p security cameras.

  H. 265 Video Compression

  (Double your storage with smarter coding)

  H. 265 or High-Efficiency Video Coding is the new standard of video compression which gives even better performance than H. 264. As 2K CCTV Cameras are becoming more popular, more bandwidth and storage capacities will be necessary.

  Remote Access

  (Live view, record & playback on your smartphone, tablet and PC)

  Remote monitoring uses an internet connection to take the images your CCTV cameras are picking up, and send them to an external remote monitoring station. These stations are specifically designed to respond rapidly to any suspicious activity, protecting your business or property from criminal damage.

  Motion Detection

  (Monitor the screen for you and alerts with unexpected movement)

  Motion detected recording is a feature on all our DVR recorders. The DVR monitors camera images and decides when it thinks there is movement. To do this the DVR looks at individual image frames and compares them to the previous one. If it sees differences then motion is assumed to have taken place.

  Email Alert and APP Alarm

  (Support with motion detection, instant email alert notification)

  All of the DVR and NVR video recorders offered by CCTV Camera World have the ability to send motion and alarm alerts. These can include emails alerts with or without a snapshot of the incident. You can send alerts based on motion detection, hard disk failure, or even camera loss.

  IP67 Durable Weatherproof Level

  (Durable weatherproof cameras for indoor and outdoor use)

  IP67 means that the product is protected against the effects of immersion in water to a depth between 15cm & 1 metre. To sum it up, any of our cameras with an IP rating of IP66 or IP67 are totally weatherproof, and are suitable for external installations without coming to any harm from the weather because lets face it.

DVR 8 Channel

Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    8CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    5MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
AHD Input    1080P, 720P
CVI Input    1080P, 720P
CVBS Input    Support
IP Video Input    2-ch Up to 5MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
Frame rate    Main stream:
When 1080p Lite mode not enabled:
For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p….@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps
Video bit rate    32 Kbps – 6 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    8CH
Network Management
Remote Connections    64
Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    1 SATA interface
Capacity    Up to 6 TB capacity
External Interface
Network interface    1; 10M / 100M self-adaptive Ethernet interface
USB interface    Rear panel: 2 x USB2.0
General
Power supply    12v DC
Consumption    Max 12W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    260 x 222 x 45 mm
Weight    Approx. 1Kg
Camera Specification
ACT750F
Image Sensor    5 MP CMOS
Signal System    PAL/NTSC
Resolution    2560 (H) × 1944 (V)
Frame Rate    TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
Min. illumination    0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time    PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens    2.8 mm fixed lens
Horizontal Field of View    2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
Lens Mount    M16
Strobe Light Alarm    Yes
WDR (Wide Dynamic Range)    ≥130 dB
Angle Adjustment    Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
White Light    Auto/ Off
Image Mode    STD/HIGH-SAT
AGC    Yes
Day/Night Mode    Color
White Balance    Auto/Manual
AE (Auto Exposure) Mode    WDR/ BLC/ HLC/ Global/ HLS
Noise Reduction    3D DNR/2D DNR
Language    English
Function    Brightness, Sharpness, Mirror, Anti-Banding, Smart Light
Interface
Video Output    1 HD analog output
General
Operating Conditions    -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply    12 VDC ± 25% / PoC.af*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption    Max. 4 W
Protection Level    IP67
Material    Main Body: Metal, Enclosure: Plastic
White Light Range    Up to 20 m
Communication    HIKVISION-C
Dimensions    Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
Weight    Approx. 350 g ( 0.77 lb.)
