CCTVVILLAGE

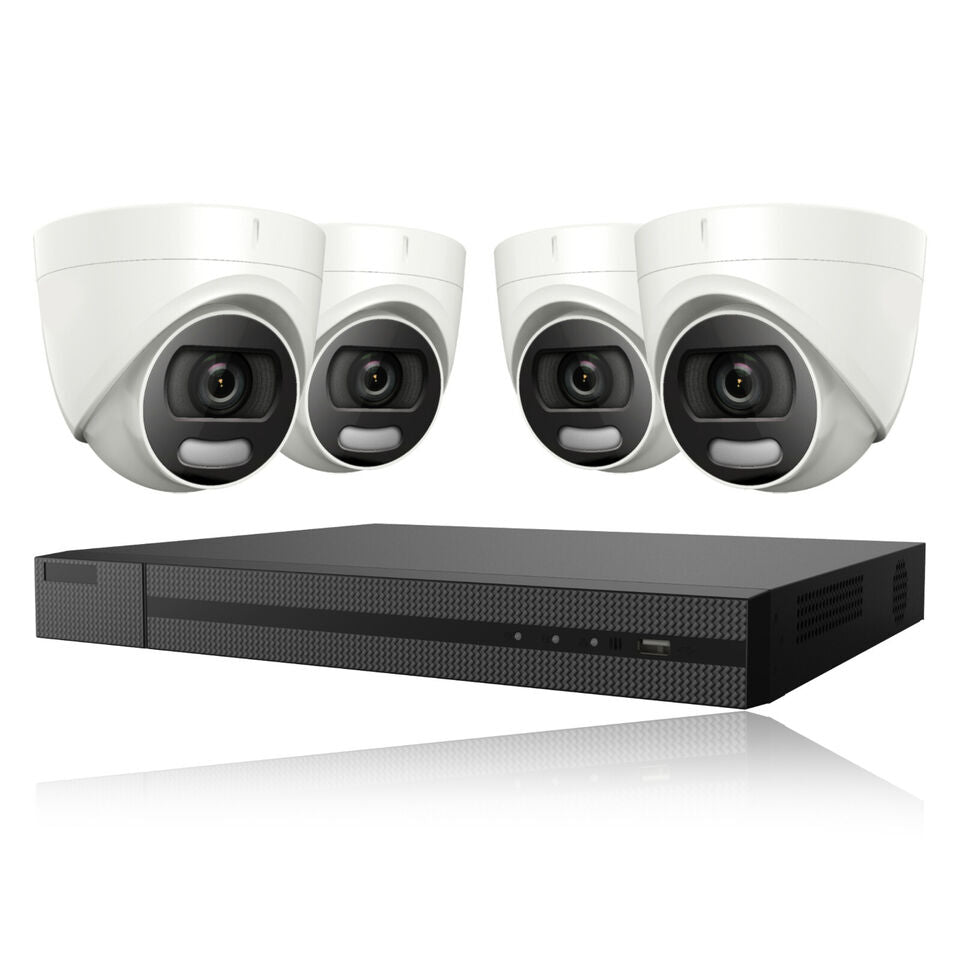

5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 4CH DVR 4x Cameras 2TB HDD

5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 4CH DVR 4x Cameras 2TB HDD

Regular price £307.00
Regular price Sale price £307.00
Sale Sold out
Including VAT. Shipping calculated at checkout.
  • Description
  • Description
  • ITEM DESCRIPTION

    • 1X DVR 4 Channel Hizone Pro Digital Video Recorder
    • 1X HDD 2TB (pre installed)
    • 4X Hizone Pro 5MP ColorVu camera, [ACT750W/G]
    • 4X 20M BNC cables
    • 1X Power Splitter
    • 1X Power Supply for Cameras

    • Recording device (DVR) and the camera are covered by 2 years back-to-base manufacturer warranty.
    • 2K UHD Video

      (High definition 2k video viewing, recording and playback)

      A 2K camera provides a video resolution of (2560×1440) with a 5 megapixel (MP) image sensor. These cameras are mainstream in today’s competitive security camera industry and deliver much clearer and sharper images and better quality videos than 1080p and 720p security cameras.

      H. 265 Video Compression

      (Double your storage with smarter coding)

      H. 265 or High-Efficiency Video Coding is the new standard of video compression which gives even better performance than H. 264. As 2K CCTV Cameras are becoming more popular, more bandwidth and storage capacities will be necessary.

      Remote Access

      (Live view, record & playback on your smartphone, tablet and PC)

      Remote monitoring uses an internet connection to take the images your CCTV cameras are picking up, and send them to an external remote monitoring station. These stations are specifically designed to respond rapidly to any suspicious activity, protecting your business or property from criminal damage.

      Motion Detection

      (Monitor the screen for you and alerts with unexpected movement)

      Motion detected recording is a feature on all our DVR recorders. The DVR monitors camera images and decides when it thinks there is movement. To do this the DVR looks at individual image frames and compares them to the previous one. If it sees differences then motion is assumed to have taken place.

      Email Alert and APP Alarm

      (Support with motion detection, instant email alert notification)

      All of the DVR and NVR video recorders offered by CCTV Camera World have the ability to send motion and alarm alerts. These can include emails alerts with or without a snapshot of the incident. You can send alerts based on motion detection, hard disk failure, or even camera loss.

      IP67 Durable Weatherproof Level

      (Durable weatherproof cameras for indoor and outdoor use)

      IP67 means that the product is protected against the effects of immersion in water to a depth between 15cm & 1 metre. To sum it up, any of our cameras with an IP rating of IP66 or IP67 are totally weatherproof, and are suitable for external installations without coming to any harm from the weather because lets face it.

      4 Channel DVR

      Video / Audio Input
      Video compression    H.265+/H.265/H.264+/H.264
      Analog and HD-TVI Video Input    4CH; BNC interface (1.0Vp-p, 75 Ω)
      HD-TVI Input    5MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
      Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
      AHD Input    1080P, 720P
      CVI Input    1080P, 720P
      CVBS Input    Support
      IP Video Input    1-ch Up to 5MP resolution
      Audio compression    G.711u
      Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
      Video / Audio Output
      HDMI / VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
      Encoding resolution    When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
      When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
      Frame rate    Main stream:
      When 1080p Lite mode not enabled:
      For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      For 3 MP stream access: 3 MP/1080p/720p….@15fps
      For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)
      For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)
      When 1080p Lite mode enabled:
      For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
      For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
      For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      Sub-stream:
      WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps
      Video bit rate    32 Kbps – 6 Mbps
      Audio output    1-ch, RCA (Linear, 1KΩ)
      Audio bit rate    64 Kbps
      Dual-stream    Support
      Stream type    Video, Video & Audio
      Synchronous playback    4CH
      Network Management
      Remote Connections    32
      Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
      Hard Disk
      SATA    1 SATA interface
      Capacity    Up to 6 TB capacity
      External Interface
      Network interface    1; 10M / 100M self-adaptive Ethernet interface
      USB interface    Rear panel: 2 x USB2.0
      General
      Power supply    12v DC
      Consumption    Max 8W
      Working temperature    -10 °C ~ +55 °C
      Working humidity    10% ~ 90%
      Dimensions (W x D x H)    260 x 222 x 45 mm
      Weight    Approx. 1Kg
      Camera Specification
      ACT750F
      Image Sensor    5 MP CMOS
      Signal System    PAL/NTSC
      Resolution    2560 (H) × 1944 (V)
      Frame Rate    TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
      Min. illumination    0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
      Shutter Time    PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
      Lens    2.8 mm fixed lens
      Horizontal Field of View    2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
      Lens Mount    M16
      Strobe Light Alarm    Yes
      WDR (Wide Dynamic Range)    ≥130 dB
      Angle Adjustment    Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
      Menu
      White Light    Auto/ Off
      Image Mode    STD/HIGH-SAT
      AGC    Yes
      Day/Night Mode    Color
      White Balance    Auto/Manual
      AE (Auto Exposure) Mode    WDR/ BLC/ HLC/ Global/ HLS
      Noise Reduction    3D DNR/2D DNR
      Language    English
      Function    Brightness, Sharpness, Mirror, Anti-Banding, Smart Light
      Interface
      Video Output    1 HD analog output
      General
      Operating Conditions    -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
      Power Supply    12 VDC ± 25% / PoC.af*You are recommended to use one power adapter to supply the power for one camera.
      Power Consumption    Max. 4 W
      Protection Level    IP67
      Material    Main Body: Metal, Enclosure: Plastic
      White Light Range    Up to 20 m
      Communication    HIKVISION-C
      Dimensions    Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
      Weight    Approx. 350 g ( 0.77 lb.)
