5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 4CH DVR 2x Cameras 4TB HDD

5MP COLORVU OUTDOOR CCTV SECURITY 24/7 COLOUR NIGHT VISION CAMERA SYSTEM KIT 4CH DVR 2x Cameras 4TB HDD

Regular price £259.00
Regular price Sale price £259.00
Sale Sold out
Including VAT. Shipping calculated at checkout.
  • Description
  • Description
  • ITEM DESCRIPTION

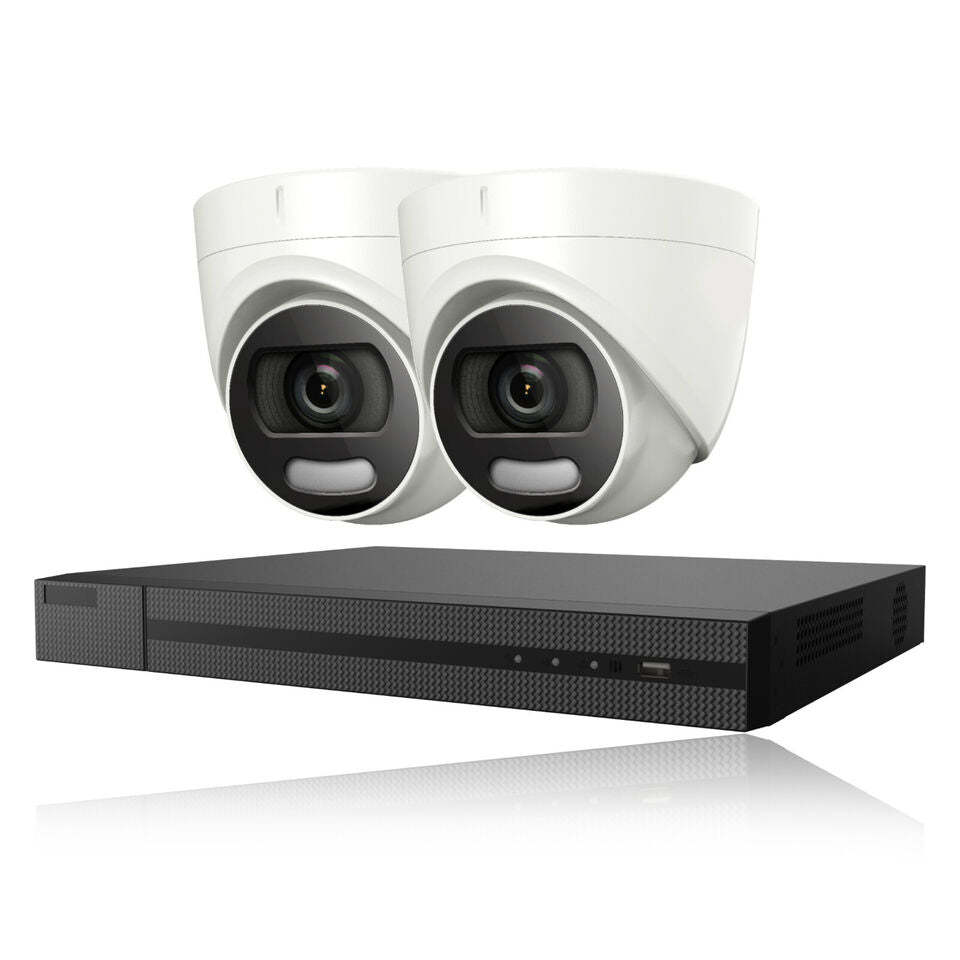

    1X DVR 4 Channel Hizone Pro Digital Video Recorder
    1X HDD 4TB (pre installed)
    2X Hizone Pro 5MP ColorVu camera, [ACT750W/G]
    2X 20M BNC cables
    1X Power Splitter
    1X Power Supply for Cameras

    Recording device (DVR) and the camera are covered by 2 years back-to-base manufacturer warranty.
    2K UHD Video

    (High definition 2k video viewing, recording and playback)

    A 2K camera provides a video resolution of (2560×1440) with a 5 megapixel (MP) image sensor. These cameras are mainstream in today’s competitive security camera industry and deliver much clearer and sharper images and better quality videos than 1080p and 720p security cameras.

    H. 265 Video Compression

    (Double your storage with smarter coding)

    H. 265 or High-Efficiency Video Coding is the new standard of video compression which gives even better performance than H. 264. As 2K CCTV Cameras are becoming more popular, more bandwidth and storage capacities will be necessary.

    Remote Access

    (Live view, record & playback on your smartphone, tablet and PC)

    Remote monitoring uses an internet connection to take the images your CCTV cameras are picking up, and send them to an external remote monitoring station. These stations are specifically designed to respond rapidly to any suspicious activity, protecting your business or property from criminal damage.

    Motion Detection

    (Monitor the screen for you and alerts with unexpected movement)

    Motion detected recording is a feature on all our DVR recorders. The DVR monitors camera images and decides when it thinks there is movement. To do this the DVR looks at individual image frames and compares them to the previous one. If it sees differences then motion is assumed to have taken place.

    Email Alert and APP Alarm

    (Support with motion detection, instant email alert notification)

    All of the DVR and NVR video recorders offered by CCTV Camera World have the ability to send motion and alarm alerts. These can include emails alerts with or without a snapshot of the incident. You can send alerts based on motion detection, hard disk failure, or even camera loss.

    IP67 Durable Weatherproof Level

    (Durable weatherproof cameras for indoor and outdoor use)

    IP67 means that the product is protected against the effects of immersion in water to a depth between 15cm & 1 metre. To sum it up, any of our cameras with an IP rating of IP66 or IP67 are totally weatherproof, and are suitable for external installations without coming to any harm from the weather because lets face it.



    4 Channel DVR

    Video / Audio Input
    Video compression    H.265+/H.265/H.264+/H.264
    Analog and HD-TVI Video Input    4CH; BNC interface (1.0Vp-p, 75 Ω)
    HD-TVI Input    5MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
    Note: The 3 MP signal input is only available for the first channel of DVR-204Q-K1, the first 2 channels of DVR-208Q-K1, and the first 4 channels of DVR-216Q-K1.
    AHD Input    1080P, 720P
    CVI Input    1080P, 720P
    CVBS Input    Support
    IP Video Input    1-ch Up to 5MP resolution
    Audio compression    G.711u
    Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
    Video / Audio Output
    HDMI / VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Encoding resolution    When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
    When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF
    Frame rate    Main stream:
    When 1080p Lite mode not enabled:
    For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    For 3 MP stream access: 3 MP/1080p/720p….@15fps
    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/…@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA…@25fps (P)/30fps (N)
    When 1080p Lite mode enabled:
    For 5 MP stream access: 5 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)
    For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
    For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    Sub-stream:
    WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps
    Video bit rate    32 Kbps – 6 Mbps
    Audio output    1-ch, RCA (Linear, 1KΩ)
    Audio bit rate    64 Kbps
    Dual-stream    Support
    Stream type    Video, Video & Audio
    Synchronous playback    4CH
    Network Management
    Remote Connections    32
    Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    Hard Disk
    SATA    1 SATA interface
    Capacity    Up to 6 TB capacity
    External Interface
    Network interface    1; 10M / 100M self-adaptive Ethernet interface
    USB interface    Rear panel: 2 x USB2.0
    General
    Power supply    12v DC
    Consumption    Max 8W
    Working temperature    -10 °C ~ +55 °C
    Working humidity    10% ~ 90%
    Dimensions (W x D x H)    260 x 222 x 45 mm
    Weight    Approx. 1Kg
    Camera Specification
    ACT750F
    Image Sensor    5 MP CMOS
    Signal System    PAL/NTSC
    Resolution    2560 (H) × 1944 (V)
    Frame Rate    TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
    Min. illumination    0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
    Shutter Time    PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
    Lens    2.8 mm fixed lens
    Horizontal Field of View    2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
    Lens Mount    M16
    Strobe Light Alarm    Yes
    WDR (Wide Dynamic Range)    ≥130 dB
    Angle Adjustment    Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
    Menu
    White Light    Auto/ Off
    Image Mode    STD/HIGH-SAT
    AGC    Yes
    Day/Night Mode    Color
    White Balance    Auto/Manual
    AE (Auto Exposure) Mode    WDR/ BLC/ HLC/ Global/ HLS
    Noise Reduction    3D DNR/2D DNR
    Language    English
    Function    Brightness, Sharpness, Mirror, Anti-Banding, Smart Light
    Interface
    Video Output    1 HD analog output
    General
    Operating Conditions    -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
    Power Supply    12 VDC ± 25% / PoC.af*You are recommended to use one power adapter to supply the power for one camera.
    Power Consumption    Max. 4 W
    Protection Level    IP67
    Material    Main Body: Metal, Enclosure: Plastic
    White Light Range    Up to 20 m
    Communication    HIKVISION-C
    Dimensions    Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″)
    Weight    Approx. 350 g ( 0.77 lb.)
