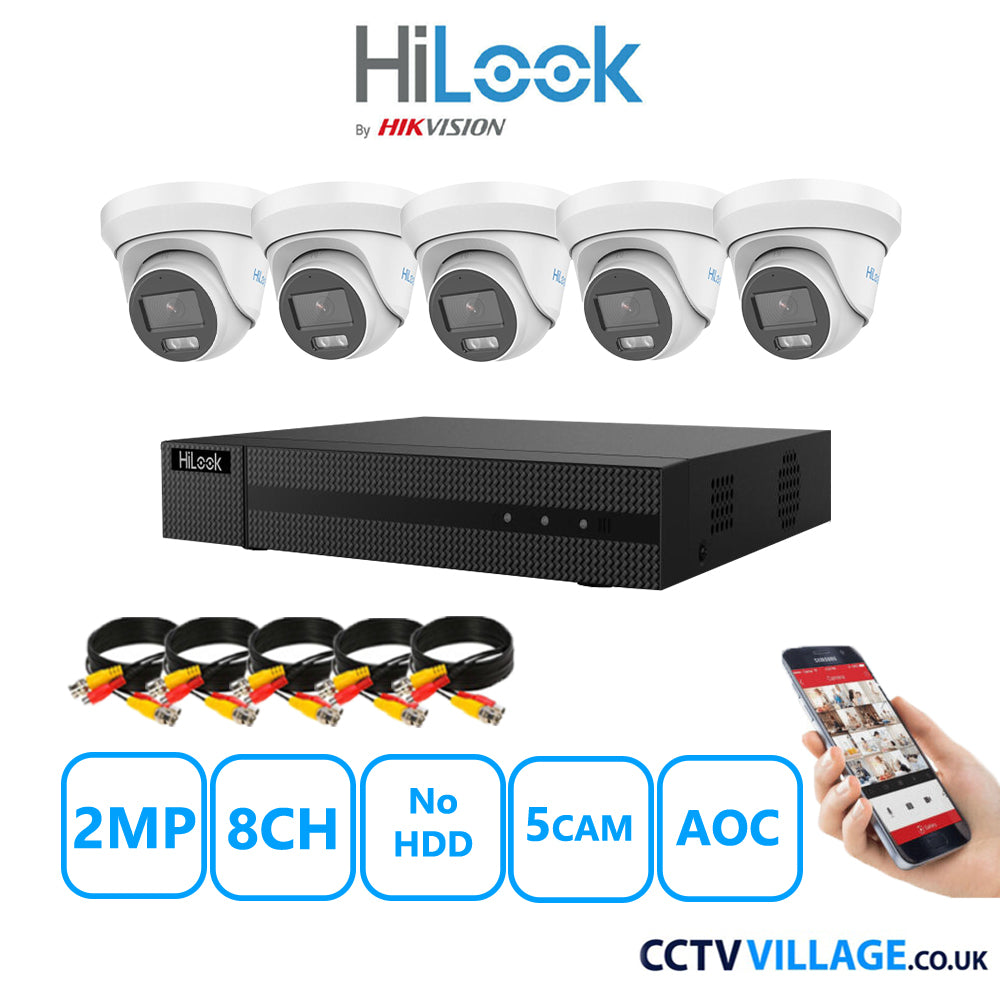

HiLook 2MP system five cameras with audio without HDD

What is included in the box?

1x HiLook DVR 8 channel (DVR-208G-M1)

(No HDD included)

5x HiLook 2MP cameras in White (THC-T229-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

------------------------------------------------------

DVR's Technical Specifications:

8-ch 1080p Lite 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 10-ch IP camera input (up to 5 MP)
Encoding ability up to 1080p
Max. 1200 m for 720p HDTVI signal
Product Data
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Video and Audio
IP Video Input
2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback8-ch
Network
Total Bandwidth72 Mbps
Remote Connection64
Network Protocol TCP/IP, PP PoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
General
Power Supply12 VDC, 1.5 A
Consumption≿17 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
≿1 kg (without HDD, 2.2 lb.)
,
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

,
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
,
IP Video Input
2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback8-ch
,
Total Bandwidth72 Mbps
Remote Connection64
Network Protocol TCP/IP, PP PoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
,
SATA1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
,
Power Supply12 VDC, 1.5 A
Consumption≿17 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
≿1 kg (without HDD, 2.2 lb.)

---------------------------------------

 Camera's Technical Specifications:

2MP ColorVu Audio Fixed Turret Camera
2MP ColorVu Audio Fixed Turret Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)

Available models:

THC-T229-MS(2.8mm)(HiLook STD)
THC-T229-MS(3.6mm)(HiLook STD)
Specification
Camera
Lens
Illuminator
Interface
General
Approval
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°

Lens Mount
M12
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode
Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR, BLC, HLC, Global
Noise Reduction
3D DNR/2D DNR
White Balance
Auto, Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm (White Light)
General
Material
Metal
Power
12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimension
Ø127.9 mm × 97.8 mm (5.04" × 3.86")
Weight
Approx. 473 g (1.04 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
