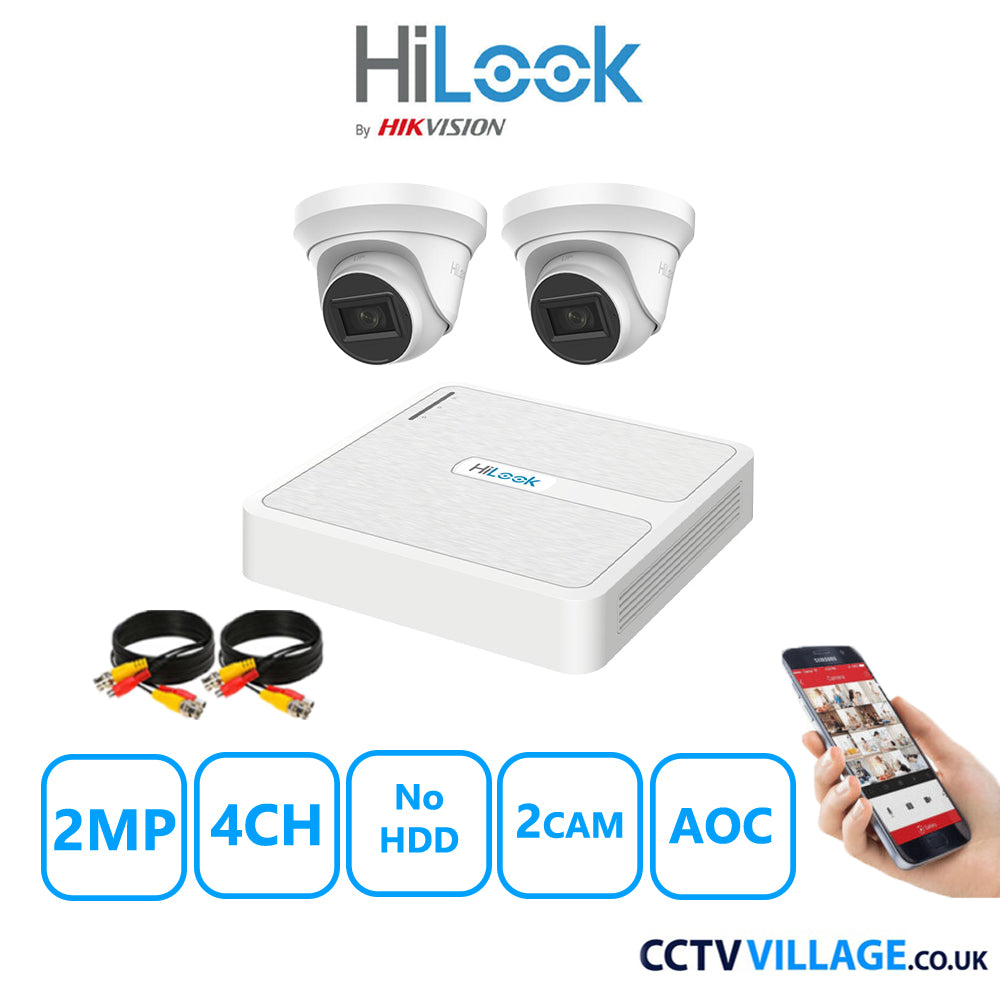

HiLook 2MP system two cameras with audio without HDD

What is included in the box?

1x HiLook DVR 4 channel - (DVR-104G-M1)

(No HDD Included)

2x HiLook 2MP cameras in White (THC-T220-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

----------------------------------------------------------

DVR's Technical Specifications :

Key Feature

Deep learning based human and vehicle targets classification of
Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 1080p)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Smart Function
Deep learning-based motion detection 2.0
Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
Storage and Playback
1 SATA interface (up to 6 TB capacity per HDD)
Smart search for efficient playback
Network & Ethernet Access
HiLook Hikvision & DDNS (Dynamic Domain Name System) for easy network management
DVR-104G-M1
TURBO HD DVR

Specification

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it
can classify human and vehicle, and extremely reduce false alarms caused by objects like
leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback 4-ch
Network
Total Bandwidth 64 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection 32
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 16 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight ≤ 0.8 kg (without HDD, 1.8 lb.)

-------------------------------------------------------

Camera's Technical Specifications :

Interface
Video Output
1 HD analog output
Switch Button
TVI/AHD/CVI/CVBS
Menu
Day/Night Mode
IR cut filter
DWDR (Digital Wide Dynamic Range)
Support
Language
English
Functions
Brightness, Sharpness, DNR, Mirror, Smart IR
Backlight Compensation
Support
Camera
Image Sensor
2 MP CMOS image sensor
Signal System
PAL/NTSC
Frame Rate
PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution
1920 (H) × 1080 (V)
Shutter Time
1/25 (1/30) s to 1/50,000 s
Min. Illumination
0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens
2.8 mm, 3.6 mm
Horizontal Field Of View
103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
Lens Mount
M12
Day & Night
IR cut filter
Synchronization
Internal synchronization
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
Power Supply
12 VDC ± 15%
Power Consumption
Max. 4 W
Material
Metal
IR Range
Up to 40 m
Dimensions
Ø 127.92 mm × 102.26 mm (Ø 5.04" × 4.03")
Weight
450 g (0.99 lb.)
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress Protection
IP66
