HiLook 2MP CCTV System 4 Channel DVR-104G-K1 with 2 Turret Cameras THC-T220-MS White 6TB HDD Full Kit

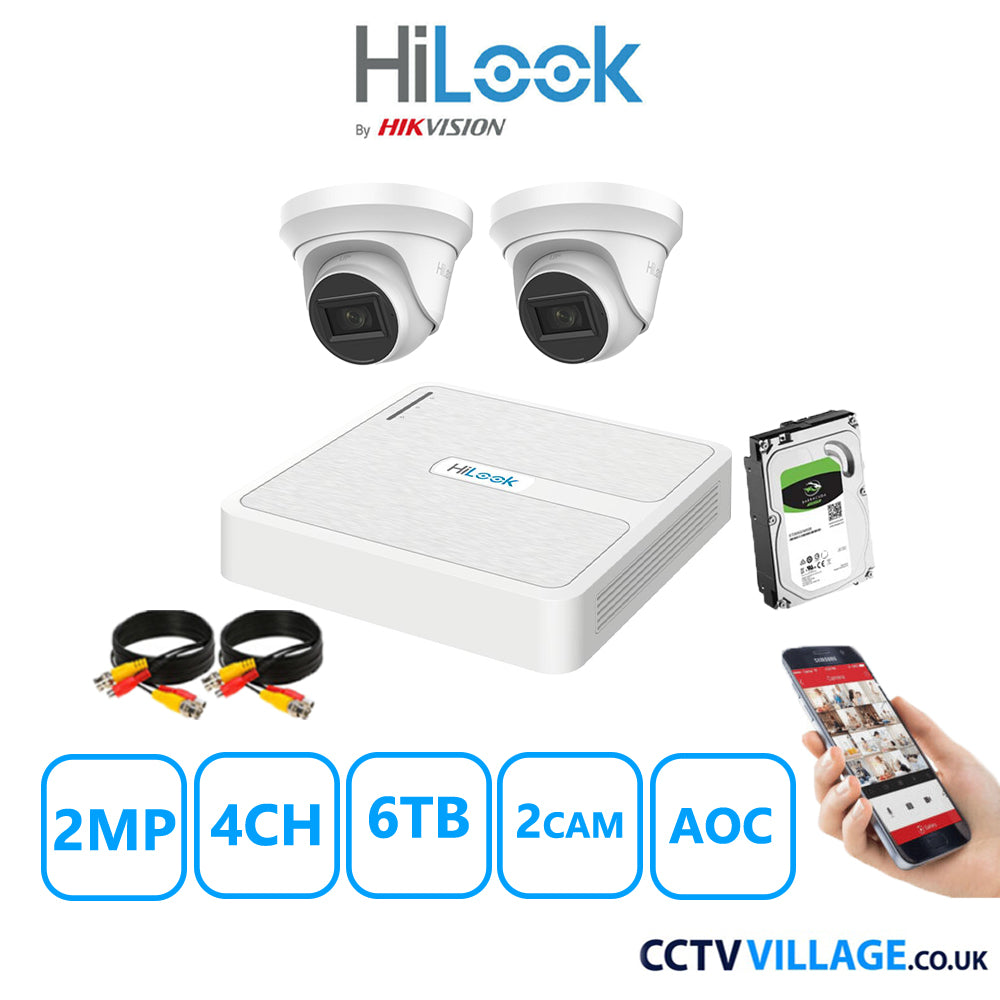

What is included in the box?

1x HiLook DVR 4 channel - (DVR-104G-K1)

6TB HDD Installed Inside the DVR

2x HiLook 2MP cameras in White (THC-T220-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

-----------------------------------------------------

DVR's Technical Specifications :

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video And Audio
IP Video Input
1-ch (up to 5-ch)

Up to 1080p resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous Playback
4-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate
Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
64 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
Remote Connection
32
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 16 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight
≤ 0.8 kg (without HDD, 1.8 lb.)

-------------------------------------------------------

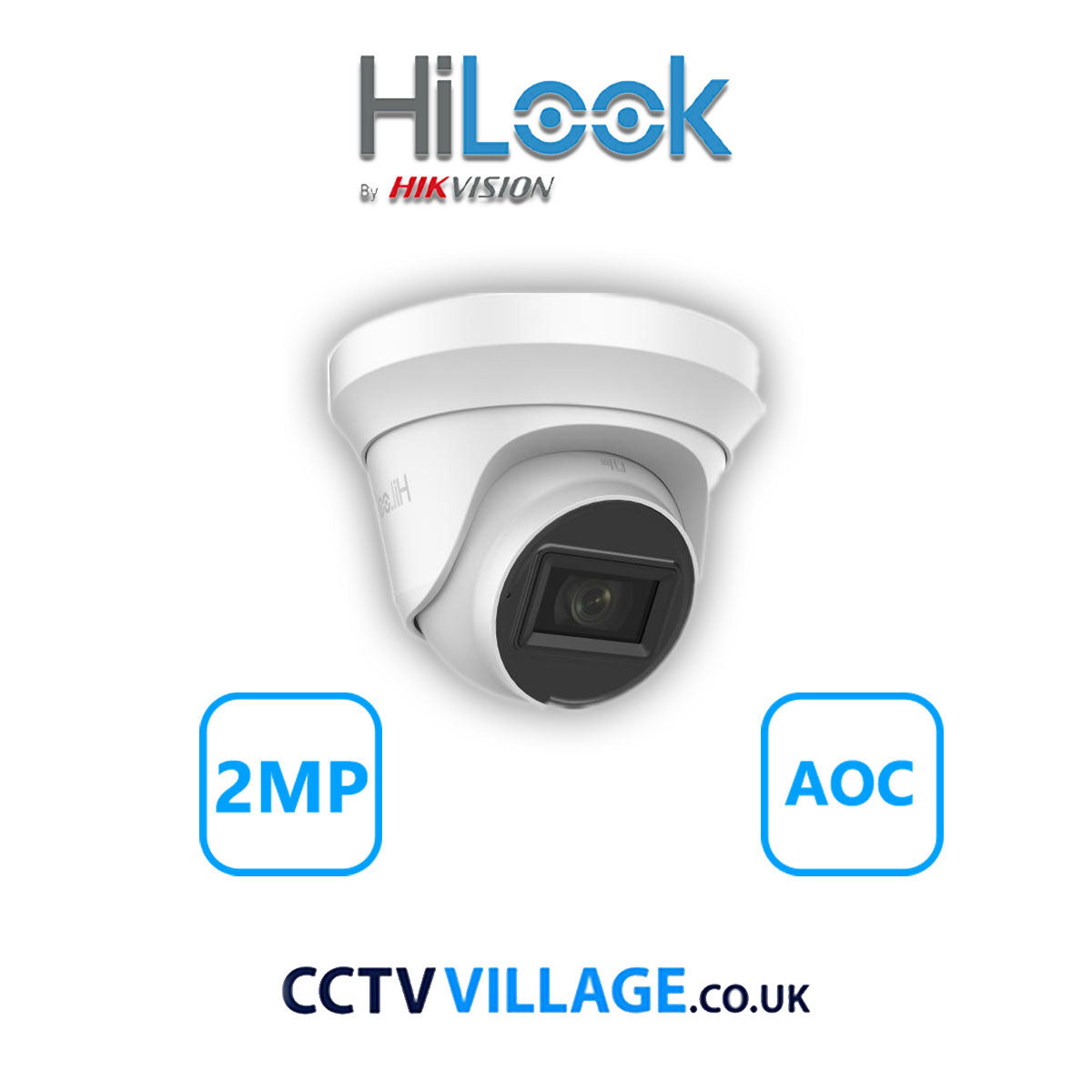

Camera's Technical Specifications :

Interface
Video Output
1 HD analog output
Switch Button
TVI/AHD/CVI/CVBS
Menu
Day/Night Mode
IR cut filter
DWDR (Digital Wide Dynamic Range)
Support
Language
English
Functions
Brightness, Sharpness, DNR, Mirror, Smart IR
Backlight Compensation
Support
Camera
Image Sensor
2 MP CMOS image sensor
Signal System
PAL/NTSC
Frame Rate
PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution
1920 (H) × 1080 (V)
Shutter Time
1/25 (1/30) s to 1/50,000 s
Min. Illumination
0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens
2.8 mm, 3.6 mm
Horizontal Field Of View
103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
Lens Mount
M12
Day & Night
IR cut filter
Synchronization
Internal synchronization
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
Power Supply
12 VDC ± 15%
Power Consumption
Max. 4 W
Material
Metal
IR Range
Up to 40 m
Dimensions
Ø 127.92 mm × 102.26 mm (Ø 5.04" × 4.03")
Weight
450 g (0.99 lb.)
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress Protection
IP66
