HiLook 2MP system three cameras with audio without HDD

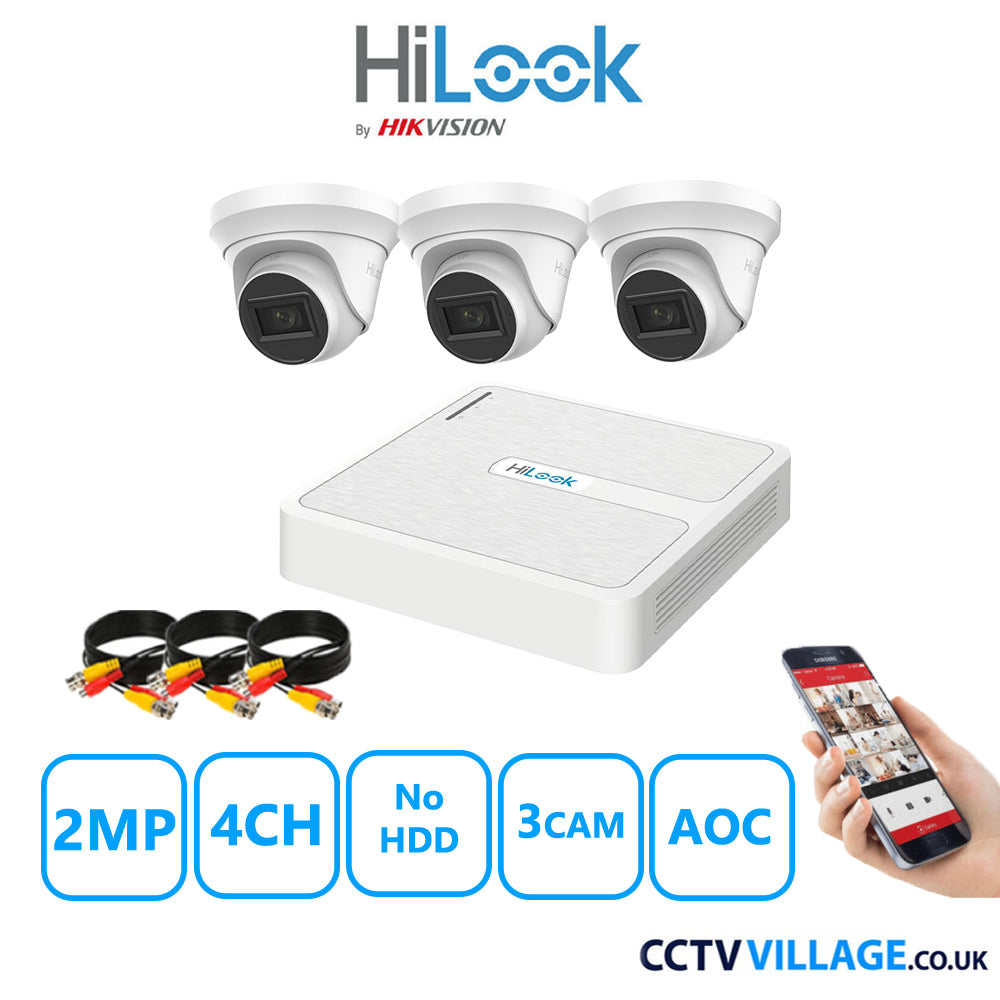

What is included in the box?

1x HiLook DVR 4 channel - (DVR-104G-K1)

(No HDD Included)

3x HiLook 2MP cameras in White (THC-T220-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

---------------------------------------------------------

DVR's Technical Specifications :

Perimeter Protection
Line Crossing Detection/Intrusion Detection
2-ch

Enhanced VCA mode on: 16-ch

Video And Audio
IP Video Input
8-ch (up to 24-ch)

Enhanced IP mode on:

16-ch (up to 32-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback
16-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bitrate
32 Kbps to 10 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
2 SATA interfaces
Capacity
Up to 10 TB capacity for each disk
USB Interface
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

General
Power Supply
12 VDC, 5 A
Consumption
≤ 25 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight
≤ 2 kg (4.4 lb.)

-------------------------------------------

Camera's Technical Specifications :

Interface
Video Output
1 HD analog output
Switch Button
TVI/AHD/CVI/CVBS
Menu
Day/Night Mode
IR cut filter
DWDR (Digital Wide Dynamic Range)
Support
Language
English
Functions
Brightness, Sharpness, DNR, Mirror, Smart IR
Backlight Compensation
Support
Camera
Image Sensor
2 MP CMOS image sensor
Signal System
PAL/NTSC
Frame Rate
PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution
1920 (H) × 1080 (V)
Shutter Time
1/25 (1/30) s to 1/50,000 s
Min. Illumination
0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens
2.8 mm, 3.6 mm
Horizontal Field Of View
103°(2.8 mm), 80.7°(3.6 mm), 50.1°(6 mm)
Lens Mount
M12
Day & Night
IR cut filter
Synchronization
Internal synchronization
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
General
Power Supply
12 VDC ± 15%
Power Consumption
Max. 4 W
Material
Metal
IR Range
Up to 40 m
Dimensions
Ø 127.92 mm × 102.26 mm (Ø 5.04" × 4.03")
Weight
450 g (0.99 lb.)
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Ingress Protection
IP66
