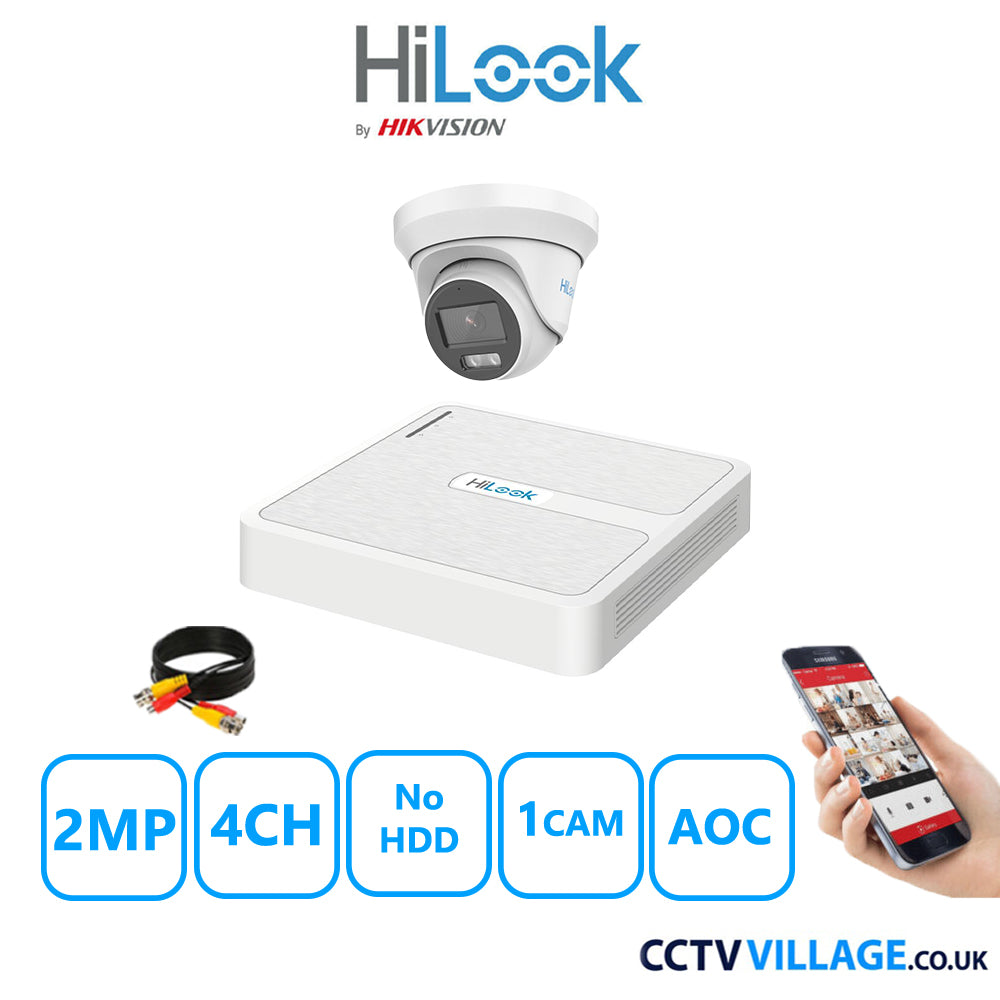

HiLook 2MP system one camera with audio without HDD

What is included in the box?

1x HiLook DVR 4 channel - (DVR-104G-M1)

(No HDD Included)

1 x HiLook 2MP camera in White (THC-T229-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

-------------------------------------------------------------------

DVR's Technical Specifications :

Key Feature

Deep learning based human and vehicle targets classification of
Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 1080p)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Smart Function
Deep learning-based motion detection 2.0
Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
Storage and Playback
1 SATA interface (up to 6 TB capacity per HDD)
Smart search for efficient playback
Network & Ethernet Access
HiLook Hikvision & DDNS (Dynamic Domain Name System) for easy network management
DVR-104G-M1
TURBO HD DVR

Specification

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it
can classify human and vehicle, and extremely reduce false alarms caused by objects like
leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback 4-ch
Network
Total Bandwidth 64 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection 32
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 16 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight ≤ 0.8 kg (without HDD, 1.8 lb.)

----------------------------------------------------------

Camera's Technical Specifications :

2MP ColorVu Audio Fixed Turret Camera
2MP ColorVu Audio Fixed Turret Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)

Available models:

THC-T229-MS(2.8mm)(HiLook STD)
THC-T229-MS(3.6mm)(HiLook STD)
Specification
Camera
Lens
Illuminator
Interface
General
Approval
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°

3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°

Lens Mount
M12
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night Mode
Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR, BLC, HLC, Global
Noise Reduction
3D DNR/2D DNR
White Balance
Auto, Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm (White Light)
General
Material
Metal
Power
12 VDC ± 25%, max. 3.2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimension
Ø127.9 mm × 97.8 mm (5.04" × 3.86")
Weight
Approx. 473 g (1.04 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
