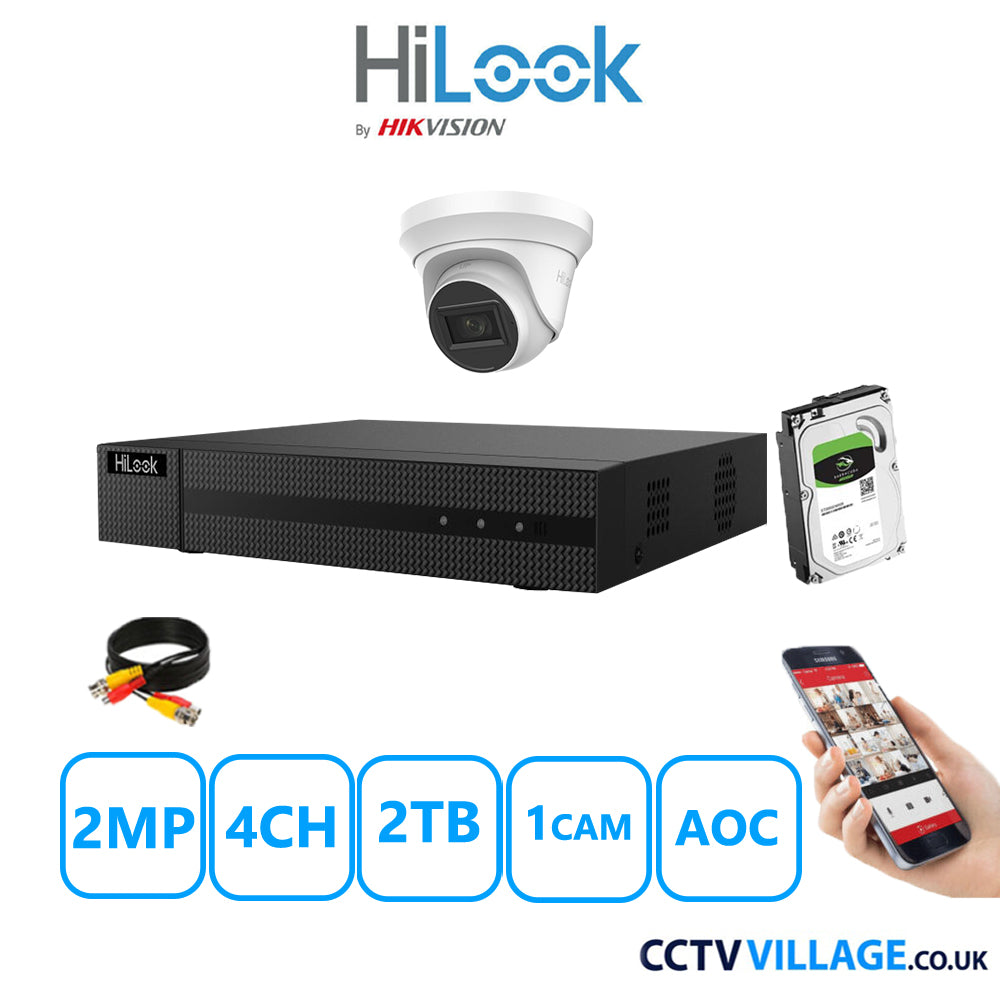

HiLook 2MP system one cameras with audio 2TB

What is included in the box?

1x HiLook DVR 4 channel (DVR-204G-M2)

2TB HDD Installed Inside the DVR

1x HiLook 2MP cameras in White (THC-T220-MS)

Cables for each camera (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

----------------------------------------------------

 DVR's Technical Specifications:

The HiLook DVR-204G-M1 is a 4-channel hybrid digital video recorder (DVR) designed for homes and small businesses. It supports both traditional analog and modern IP cameras, featuring deep learning-based human/vehicle classification to reduce false alarms and H.265 compression to maximize storage space.
Key FeaturesCamera Compatibility: Supports up to 4 analog channels (HDTVI, AHD, HDCVI, and CVBS) and up to 5 IP camera inputs (up to 2 MP).
Motion Detection 2.0: Deep learning-based human and vehicle classification filters out irrelevant movements (like pets or trees) to prevent false alarms.
Efficient Compression: Uses H.265 Pro+/H.265 video compression, significantly reducing bandwidth and required hard drive space.
Audio Over Coax:Supports both audio transmission and two-way audio over coaxial cable, simplifying installation.
SpecificationsEncoding Resolution: Up to 1080p lite @ 15 fps or 30 fps depending on the exact model variant.
Storage: 1 SATA interface supporting hard drives up to 4 TB.
Network & Interfaces: RJ45 10/100 Mbps Ethernet interface for remote viewing via HiLookVision.
Power Supply: 12 VDC, 1.5 A.
Dimensions: 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inches).

----------------------------------------------------

Camera's Technical Specifications:

Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount
M12
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate
TVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR;BLC;HLC;Global
Noise Reduction
2D DNR
White Balance
Auto/Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Built-In Microphone
Yes
General
Power
12 VDC ± 25%, max. 3.7 W
Material
Metal
Dimension
Φ 127.92 mm × 100.15 mm (Φ 5.04" × 4.03")
Weight
Approx. 450 g (0.99 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
