Govision 5MP CCTV System with 16CH DVR

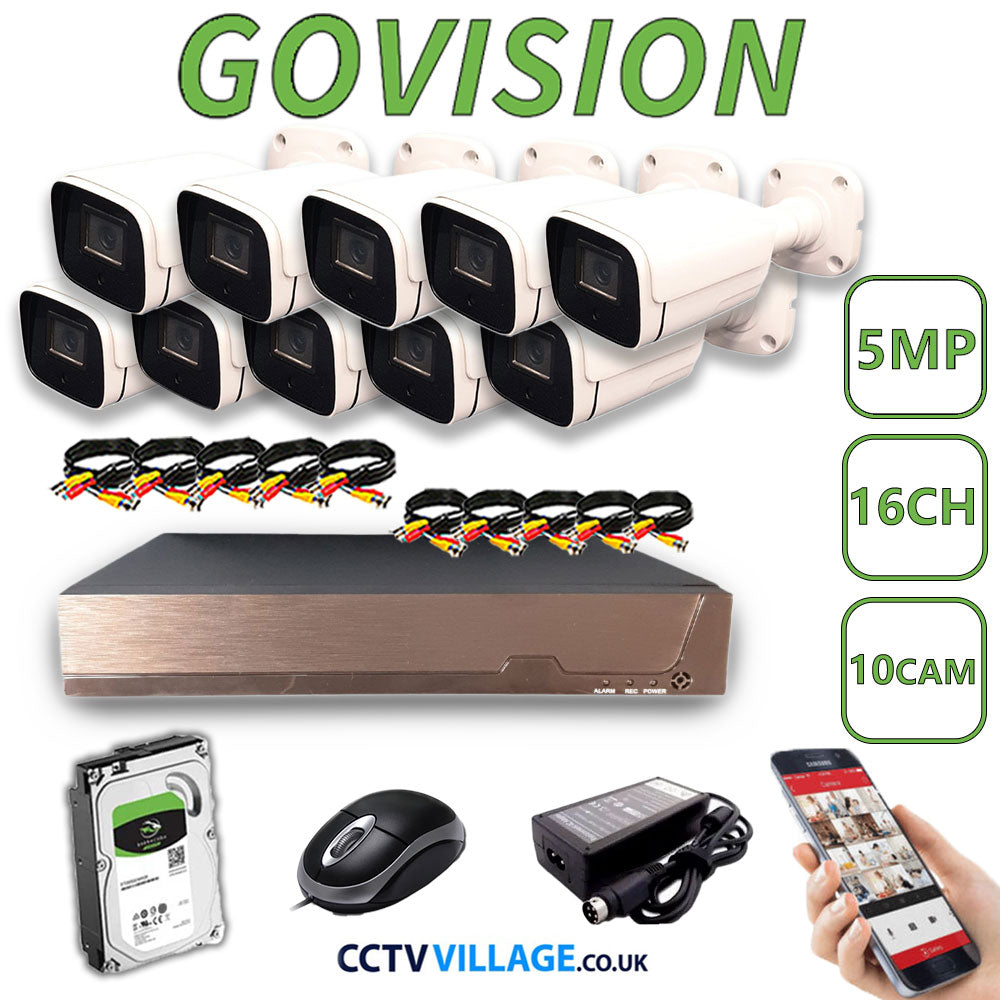

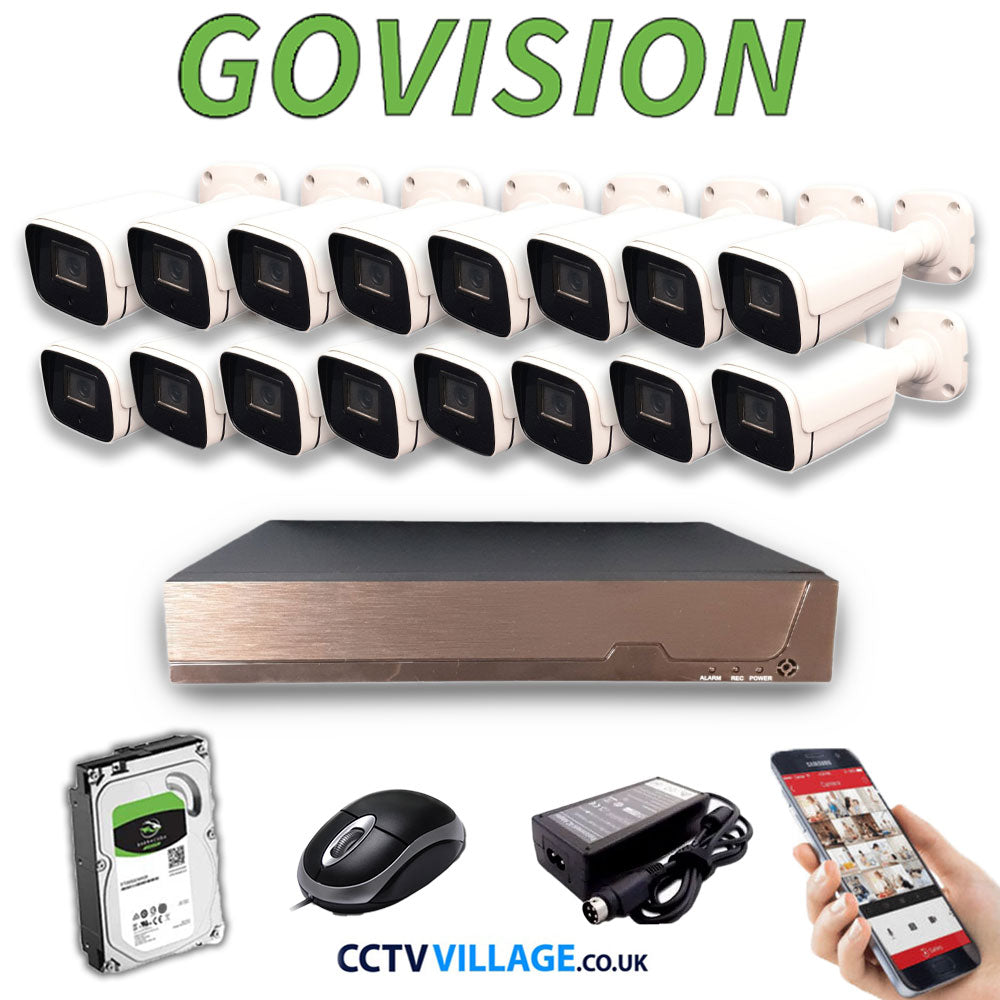

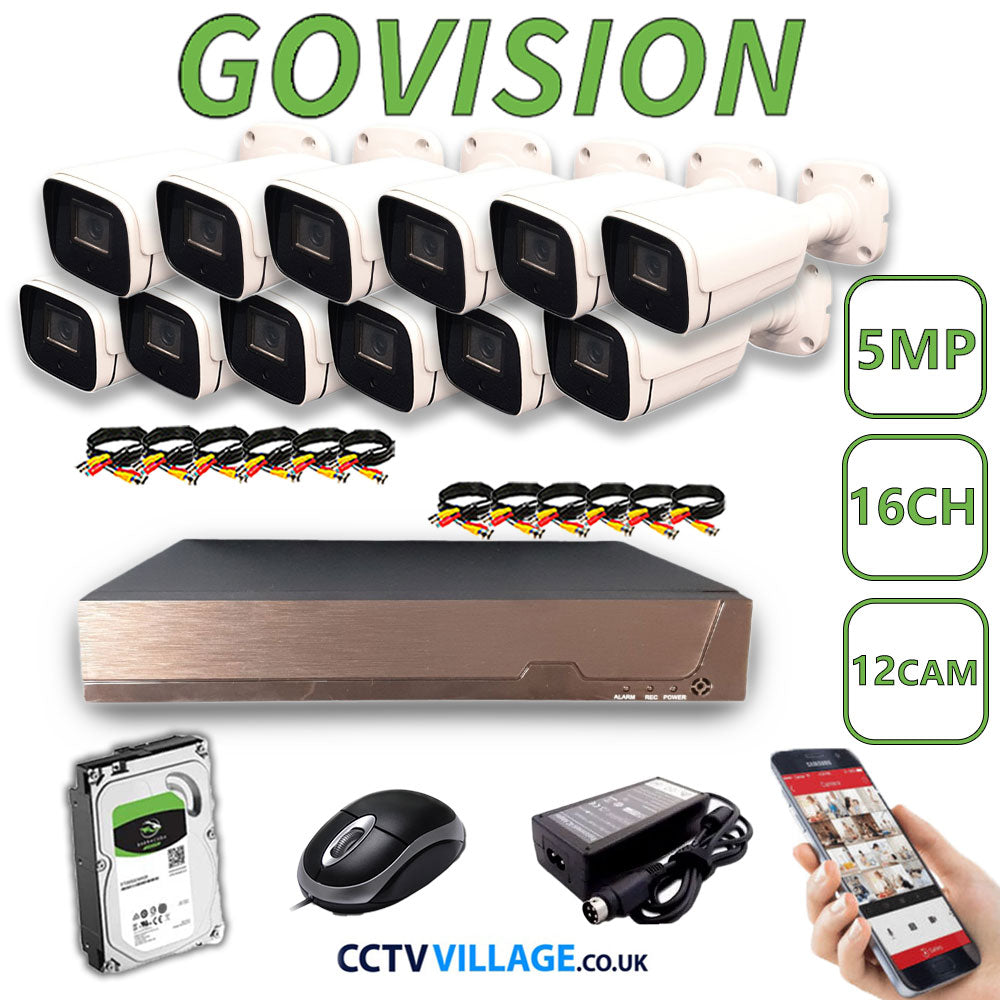

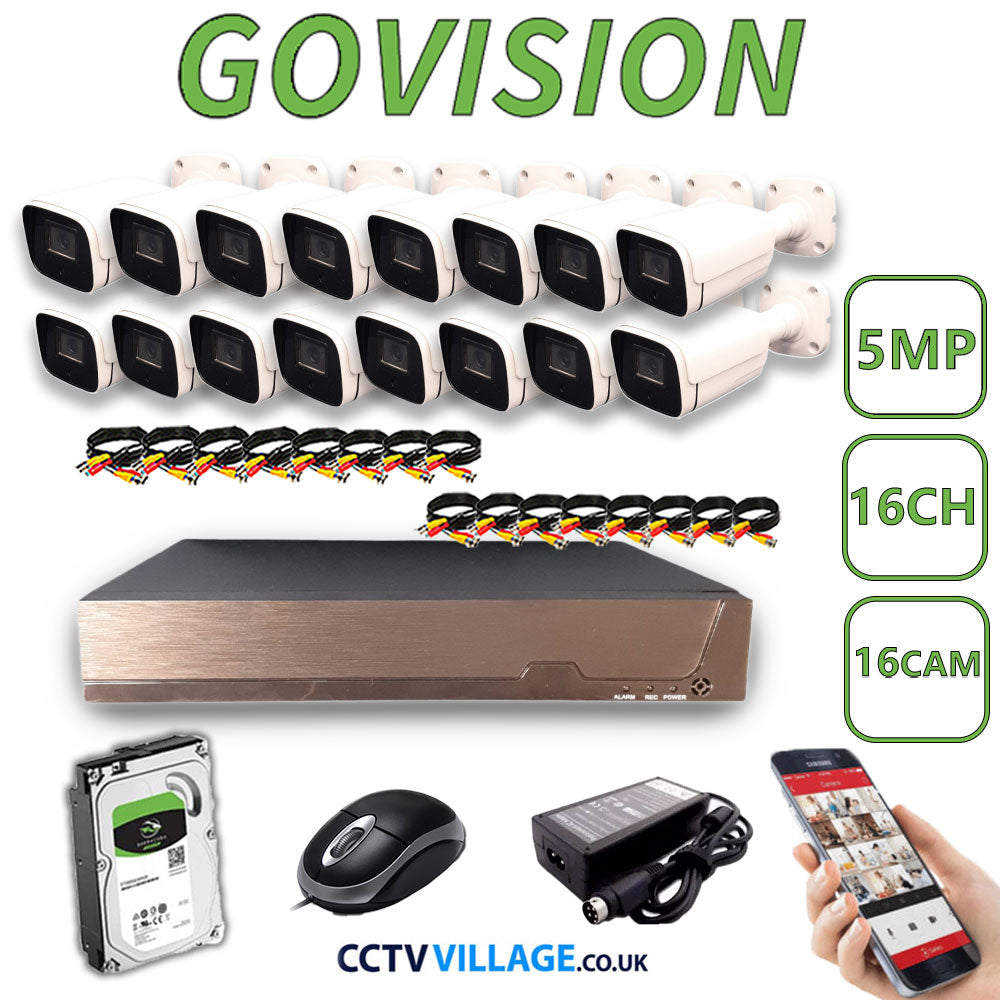

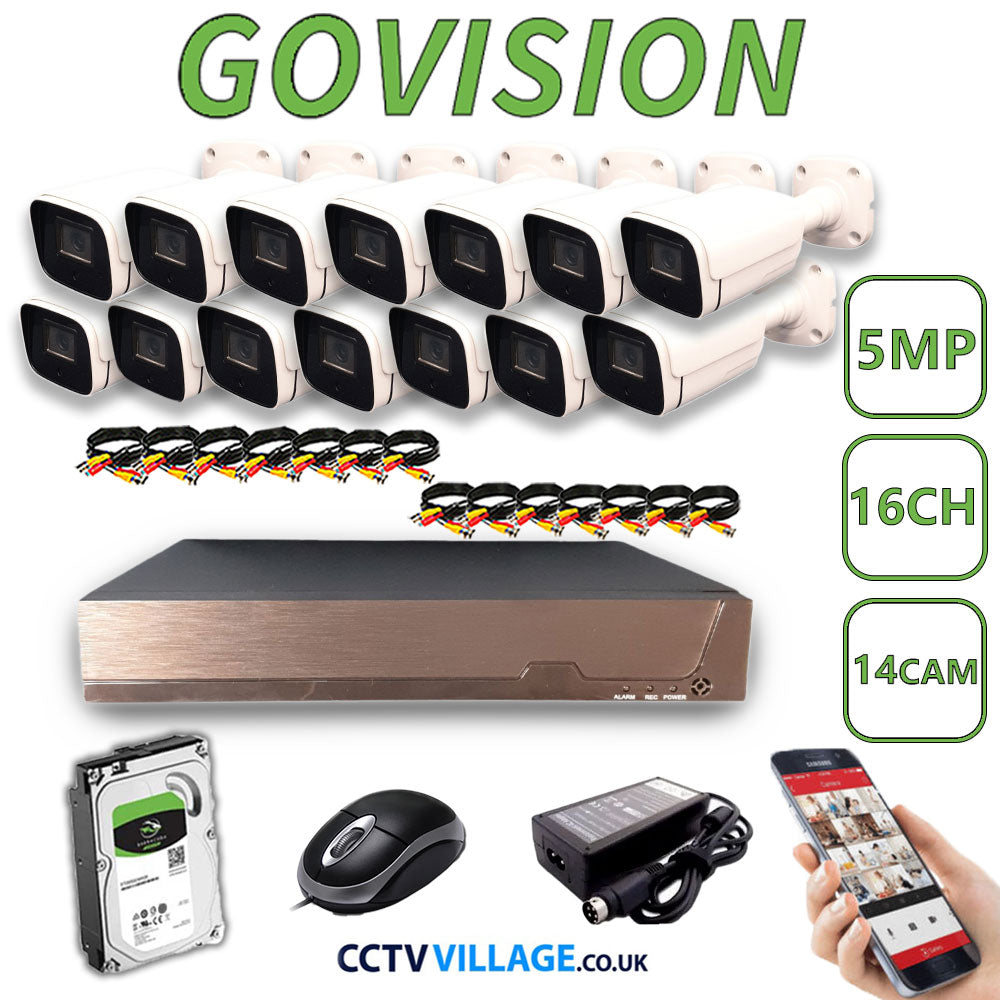

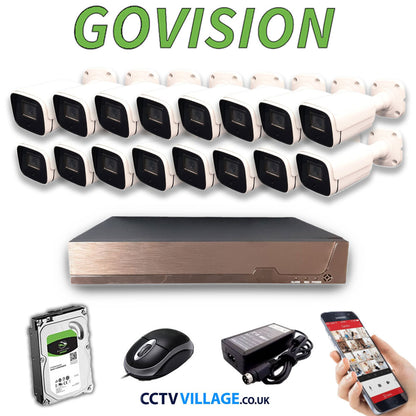

What is included in the box?

1x Govision DVR 16 channel - (DVR-D3016H-5MP)

Up to 16x Govision 5MP camera in white (GV135BW-5MP)

1TB , 2TB or 4TB HDD installed inside the DVR

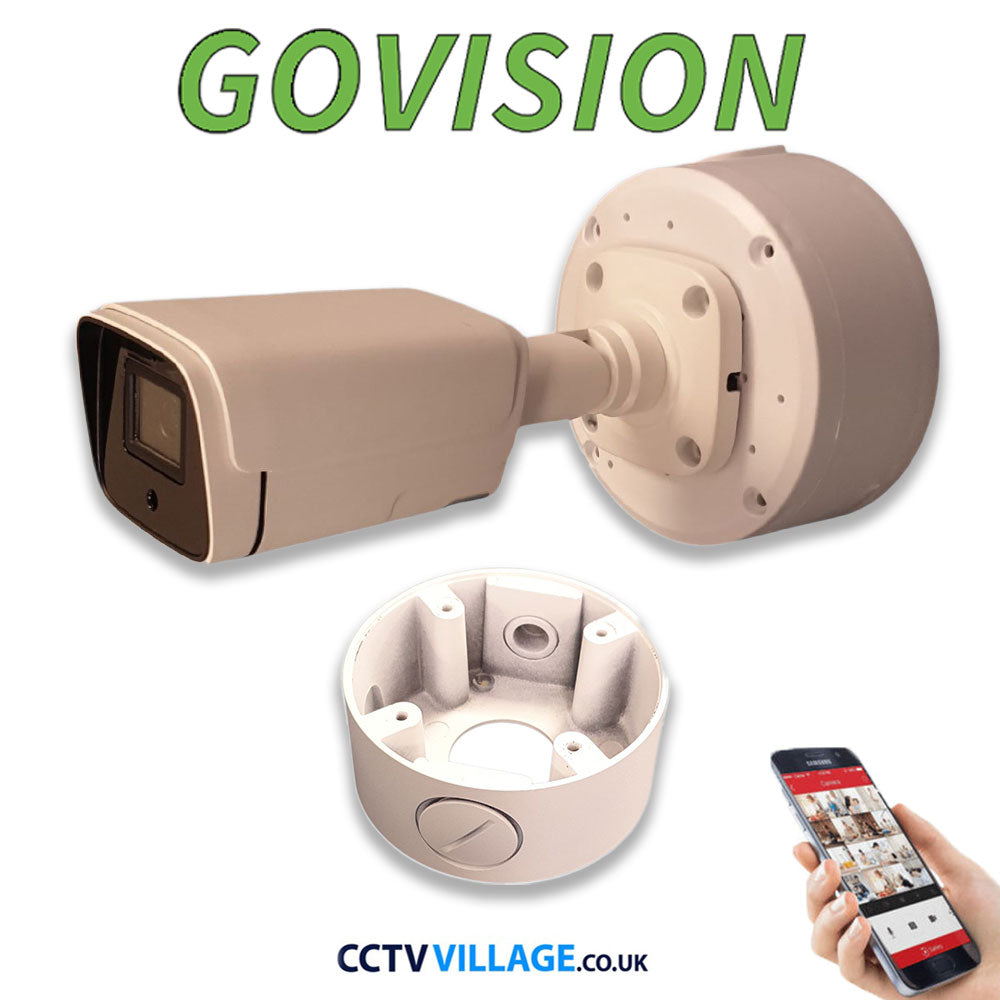

10,12,14 or 16 base for each camera (if you choose the option)

Camera power supply

Power supply & mouse for DVR

20m BNC cable for each camera

NOTE:

If you include the hard drive option, recording will work out of the box.

If you don’t, you must connect your own hard drive; otherwise, the system will only display video and won’t record.

Camera's Technical Specifications:

Specifications:
GV3004-5MP
Main Processor    Embedded processor
Operating System    Embedded LINUX
Video & Audio
Input    4 Channel, BNC
HDCVI Camera    5MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera    5MP, 1080P@25/30, 720P@25/30fps
TVI Camera    5MP, 1080P@25/30, 720P@25/30fps
CVBS Camera    PAL/NTSC
IP Camera Input    Up to 5MP
Audio In/Out    1/1 RCA, Audio over co-ax supported on all BNC Channels
Two-way Talk    Reuse audio in/out, RCA
Display
Interface    1 HDMI, 1 VGA
Resolution HDMI    2048x1536, 1920×1080, 1280×1024, 1280×720
Resolution VGA    2048x1536, 1920×1080, 1280×1024, 1280×720
Display Split    1/4/8/9
OSD    Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression    H.265+/ H.265/ H.264+/ H.264
Resolution    2K, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate - Main Stream    2K, 1080P (1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps)
Record Rate - Sub Stream    D1/ CIF (1~25fps)
Bit Rate    32Kbps~6144Kb/s
Record Mode    Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval    1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio Compression    AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate    8KHz, 16 bit Per Channel
Audio Bit Rate    64Kbps Per Channel
Video Detection
Trigger Events    Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection    Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback & Backup
Sync Playback    1/4/9
Search Mode    Time/Date, MD & Exact search (accurate to second)
Playback Functions    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode    USB Device/Network
Network
Ethernet    RJ-45 port (100M)
Network Functions    HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,DDNS, FTP, Alarm Server, P2P,IP Search
Max. User Access    128 users
Smart Phone    iPhone, iPad, Android Phone
Interoperability    ONVIF 16.12, CGI Conformant
Storage
Internal HDD    1 SATA port, up to 6TB
Auxiliary Interface
USB Interface    1 USB Port (USB 2.0)
RS485    1 port, For PTZ Control
General
Power Supply    DC12V/2A
Power Consumption    <10W (without HDD)
Working Environment    -10°C ~+55°C / 10%~90%RH
Dimensions    Compact 1U, 260mm × 236mm × 48mm
Weight    1KG (with HDD)

DVR's Technical Specifications:

16-ch
Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    16CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input    5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVI Input    4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input    Support
IP Video Input    4-ch Up to 6MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate    Main stream:
8 MP@8fps / 5 MP@12fps/4 MP@15fps/3 MP@18fps / 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)
Sub-stream:
WD1/4CIF/CIF@25fpss
Video bit rate    32 Kbps - 10 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    16CH
Network Management
Remote Connections    128
Network Protocols    TCP/IP,DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    2 SATA interface
Capacity    Up to 8 TB capacity each disk
External Interface
Network interface    1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB interface    Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power supply    12v DC
Consumption    Max 25W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    380 × 320 × 48 mm
Weight    Approx. 2Kg
