Hikvision 8MP system six cameras with audio without HDD

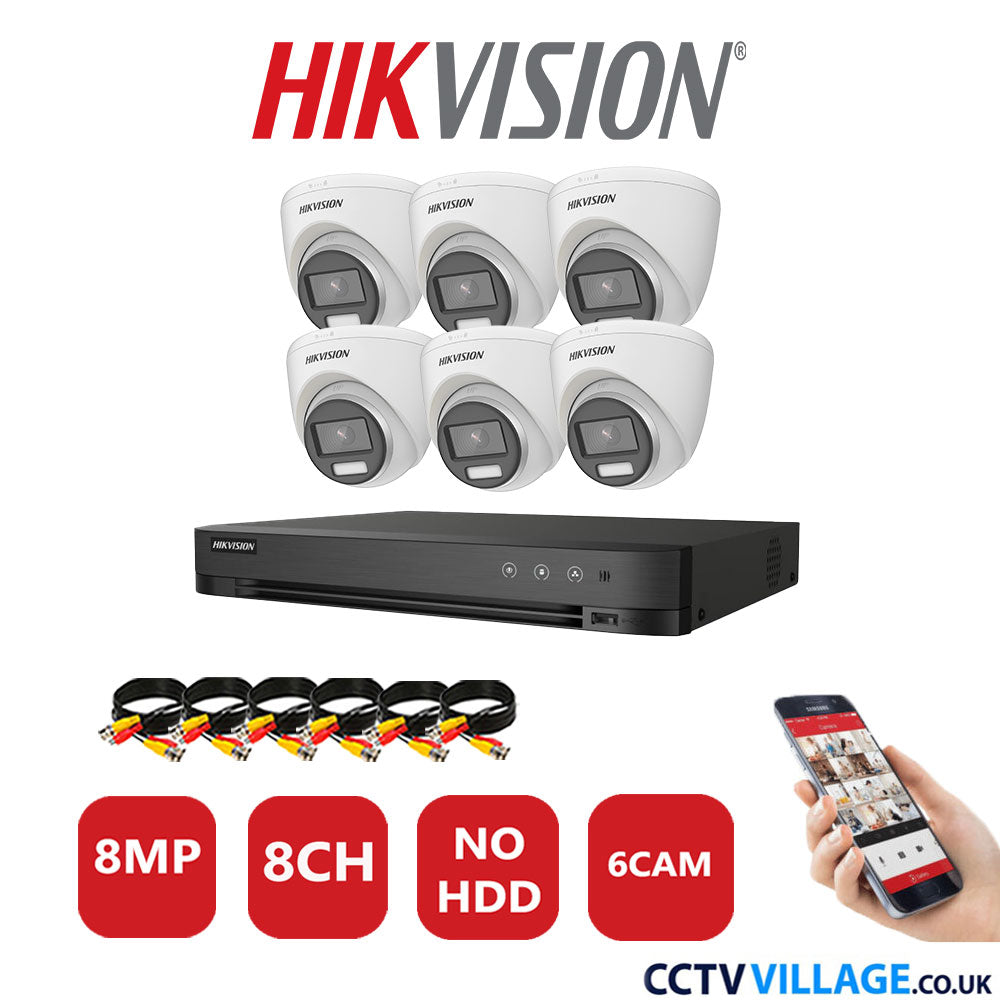

What is included in the box?

1x Hikvision  DVR 8 channel (DVR-iDS-7208HUHI-M1/S)

(No HDD Included)

6x Hikvision 8MP cameras in White (DS-2CE72UF3T-E)

Cables for each cameras (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

-----------------------------------------------------------

DVR's Technical Specifications :

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis
Up to 4-ch
Facial Detection
Facial Detection And Capture
Face picture detection, face picture search
Video And Audio
IP Video Input
4-ch (up to 12-ch)

Up to 8 MP resolution

Enhanced IP mode on:

8-ch (up to 16-ch), each up to 4 Mbps

;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback
8-ch
HDTVI Input
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input
5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
VGA Output
1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDCVI Input
8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate
32 Kbps to 10 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
128Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection
64
Network Interface
1,RJ45 10M/100M/1000M self-adaptive

Ethernet interface

Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Serial Interface
RS-485 (half-duplex)
USB Interface
1 × USB 2.0；

1 × USB 3.0

Alarm In/Out
N/A
General
Power Supply
12 VDC
Consumption
≤ 10 W
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight
≤ 2 kg (4.4 lb)

-------------------------------------------------------

Camera's Technical Specifications :

Image Sensor
8 MP CMOS
Signal System
PAL/NTSC
Resolution
3840 (H) × 2160 (V)
Frame Rate
TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
Min. Illumination
0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Lens
2.8 mm, 3.6 mm fixed focal lens
Field Of View
2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°

3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°

Lens Mount
M16
Light Alarm
Solid Light Alarm (White Light)
Day & Night
24/7 Color Imaging
WDR (Wide Dynamic Range)
≥130 dB
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White Light
Auto/Off
Image Mode
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Day/Night Mode
Color
White Balance
Auto/Manual
AE (Auto Exposure) Mode
WDR;BLC;HLC;Global;HLS
Privacy Mask
4 programmable privacy masks
Motion Detection
4 programmable motion areas
Noise Reduction
3D DNR/2D DNR
Language
English
Function
Sharpness;Mirror;Brightness;Anti-Banding;Smart Light;Contrast
Interface
Video Output
1 HD analog output
General
Operating Conditions
-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%/PoC.at

*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

Consumption
Max. 5.1 W
Protection Level
IP67
Material
Main body: Metal, Enclosure: Plastic
White Light Range
Up to 40 m
Communication
HIKVISION-C
Dimension
194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
Weight
Approx. 350 g (0.77 lb.)
