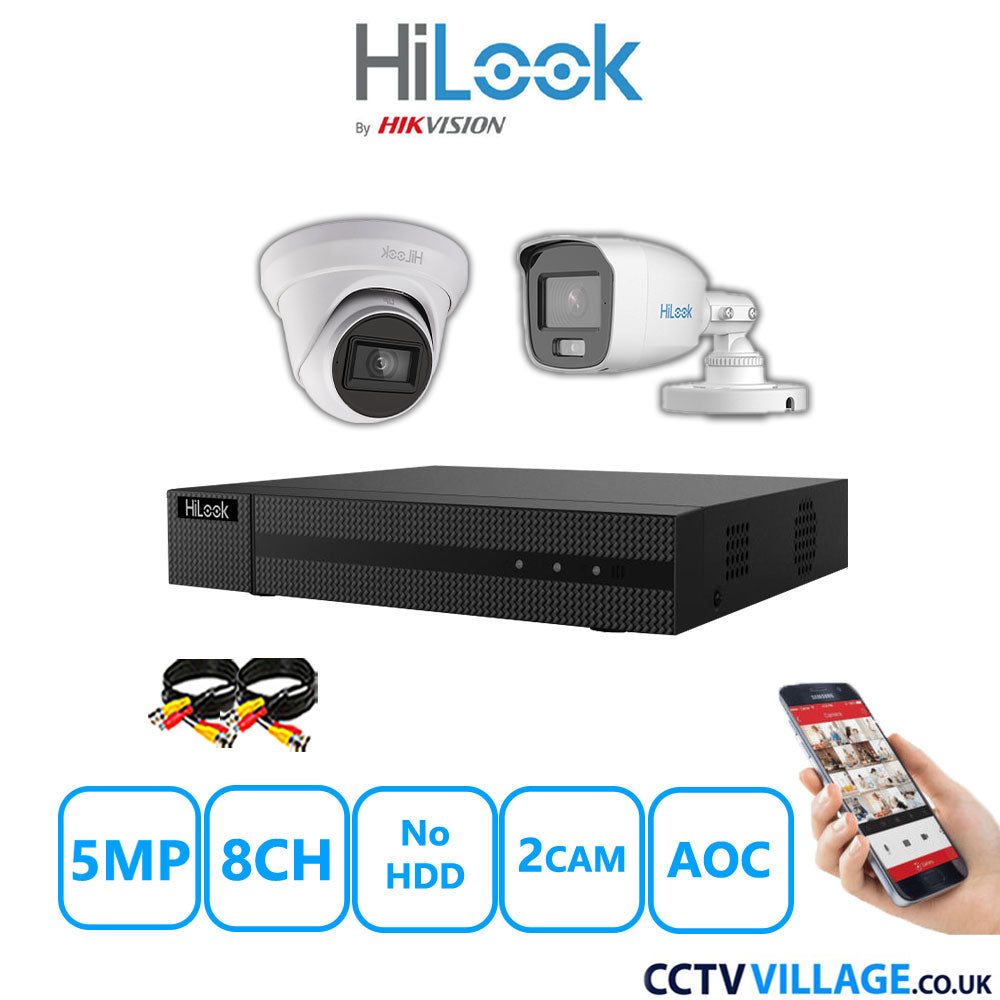

What is included in the box?

1x HiLook DVR 8 channel (DVR-208Q-M1)

(No HDD Included)

1x HiLook 5MP camera in White(THC-T250-MS)

1x HiLook 5MP camera in White (THC-B159-MS)

Cables for each cameras (if you choose the option)

Camera Power Supply (if you choose the option)

Power supply & mouse for the DVR

---------------------------------------------------------------------------

DVR's Technical Specifications :

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video And Audio
IP Video Input
2-ch (up to 10-ch)

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input
5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input
5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Video Output Mode
HDMI/VGA simultaneous output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback
8-ch
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate
Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate
32 Kbps to 6 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
96 Mbps
Remote Connection
64
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Real panel: 2 × USB 2.0
General
Power Supply
12 VDC, 1.33 A
Consumption
≤ 12 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight
≤ 1 kg (without HDD, 2.2 lb.)

-----------------------------------------------------------

Camera's Technical Specifications:

Turret Camera

Camera
Image Sensor
5 MP CMOS
Max. Resolution
2560 (H) × 1944 (V)
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°

3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°

Lens Mount
M12
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
White Balance
ATW/MANUAL
AGC
Support
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Built-In Microphone
Yes
General
Material
Metal
Dimension
Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
Weight
Approx. 450 g (0.66 lb.)
Operating Condition
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption
Max. 3.7 W

IR Range
Up to 40 m
Approval
Protection
IP67

Bullet Camera

Image Sensor
3K CMOS
Signal System
PAL/NTSC
Resolution
2960 (H) × 1665 (V)
Frame Rate
TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps

AHD: 4 MP @ 25 fps/30 fps

CVI: 4 MP @ 25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens
2.8 mm/3.6 mm fixed focal lens
Field Of View
2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°

3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°

Lens Mount
M12
Light Alarm
Solid Light Alarm (White Light)
Day & Night
24/7 Color Imaging
WDR (Wide Dynamic Range)
Digital WDR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White Light
Auto/Off
Image Mode
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Day/Night Mode
Color
White Balance
Auto/Manual
AE (Auto Exposure) Mode
DWDR;BLC;HLC;Global
Noise Reduction
2D DNR
Language
English
Function
Brightness;Sharpness;Anti-Banding
Lighting Mode
White Light
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption
Max. 2.9 W
Protection Level
IP66
Material
Metal
White Light Range
Up to 20 m
Dimension
161.2 mm × 70 mm × 70 mm (6.4" × 2.8" × 2.8")
Weight
Approx. 265 g (0.58 lb.)
