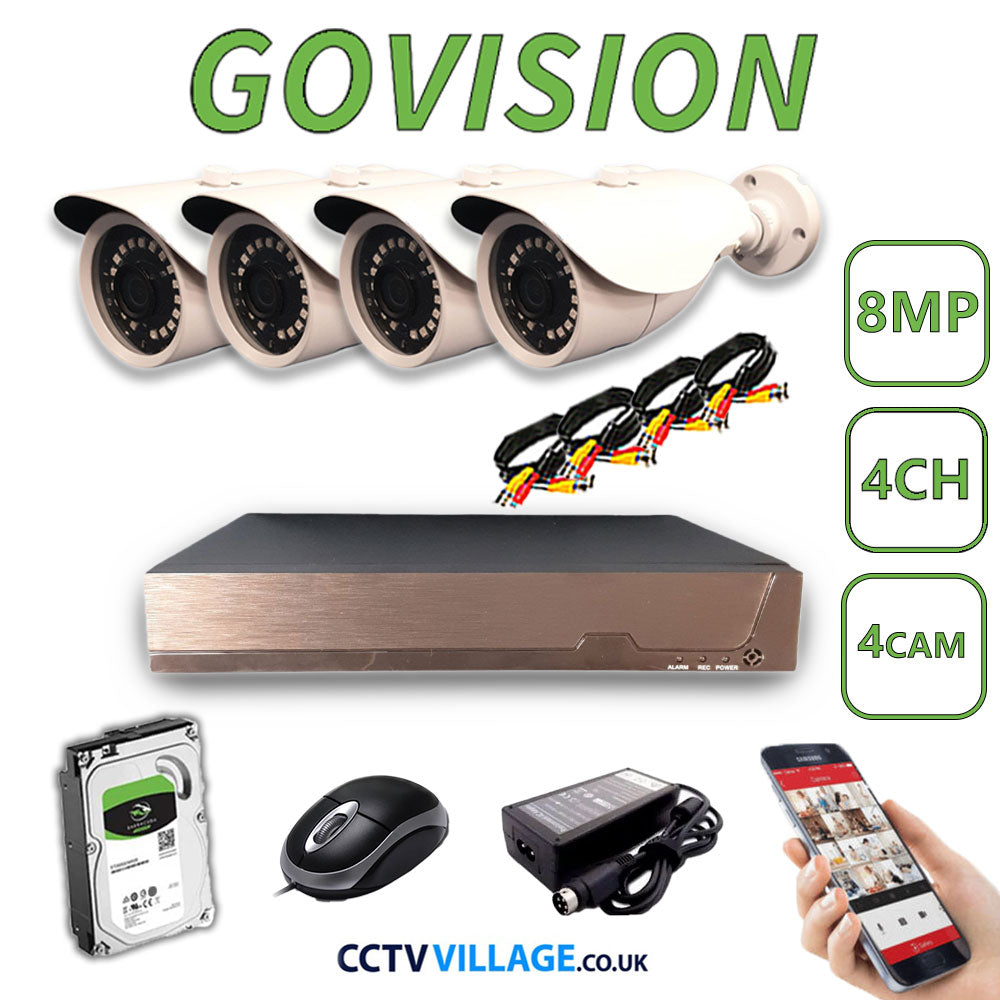

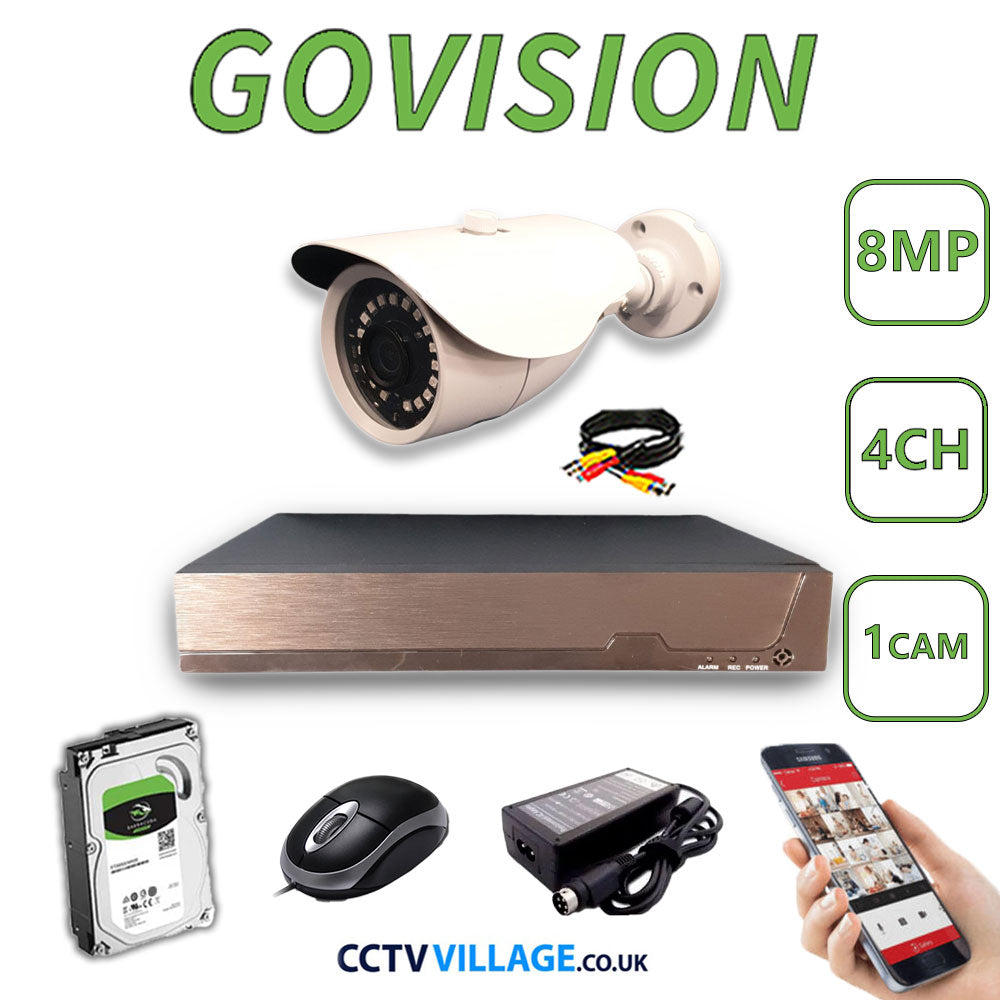

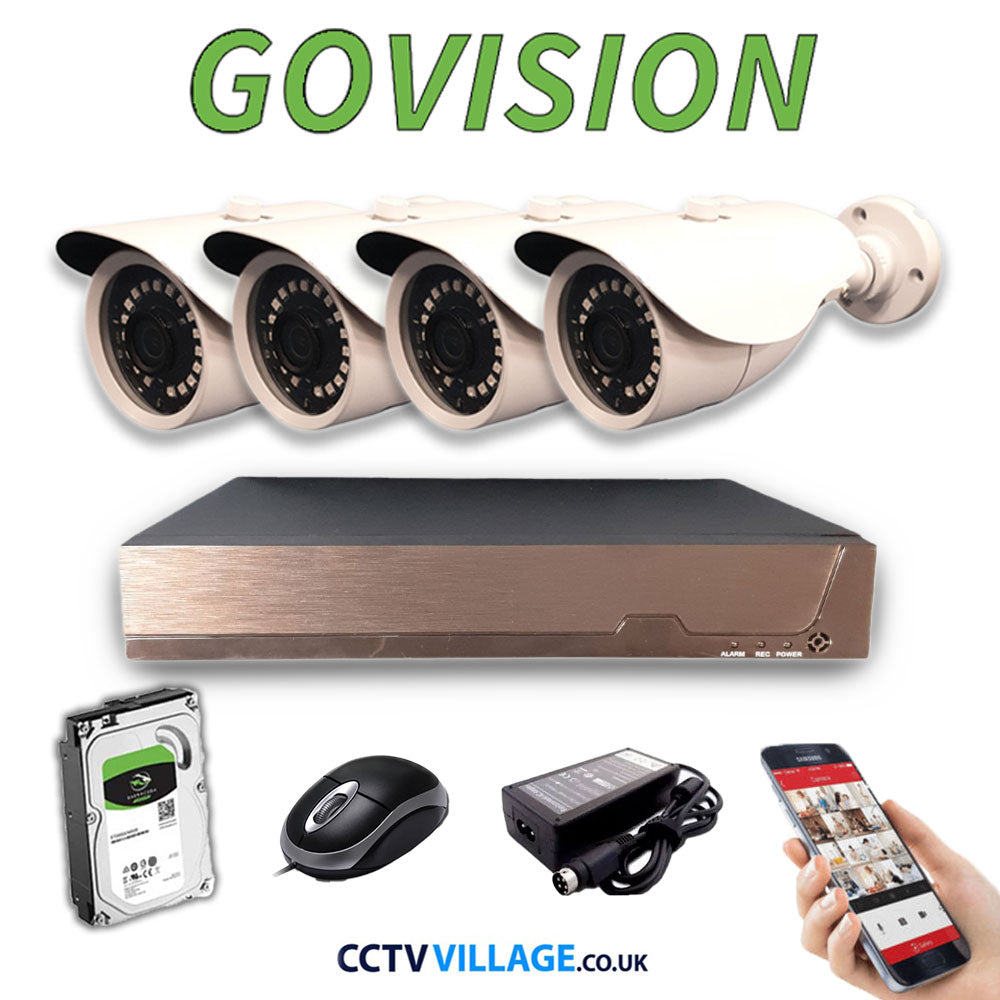

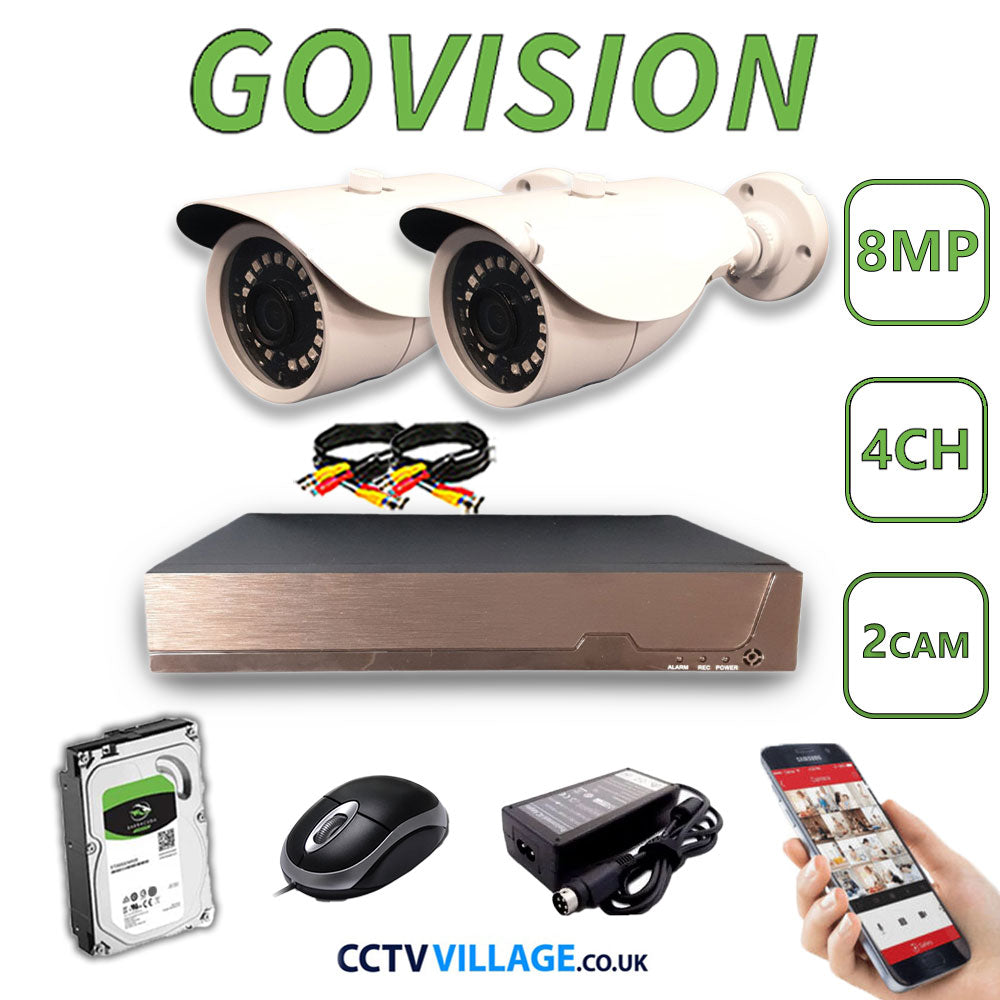

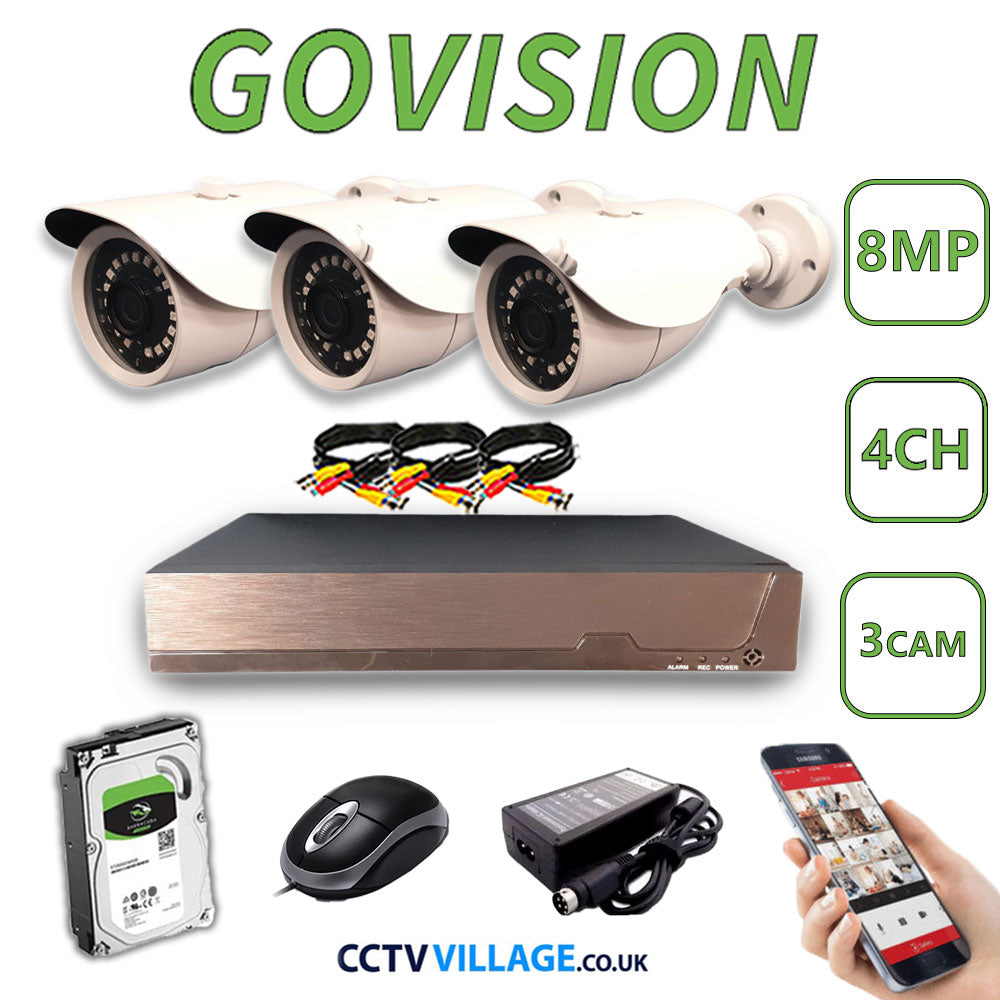

Govision 8MP CCTV System with 4CH DVR

What is included in the box?

1x Govision DVR 4 channel - (DVR-D3004H-8MP)

UP TO 4x Govision 8MP camera in White (GV144BW-8MP)

1TB OR 2TB HDD Installed Inside the DVR

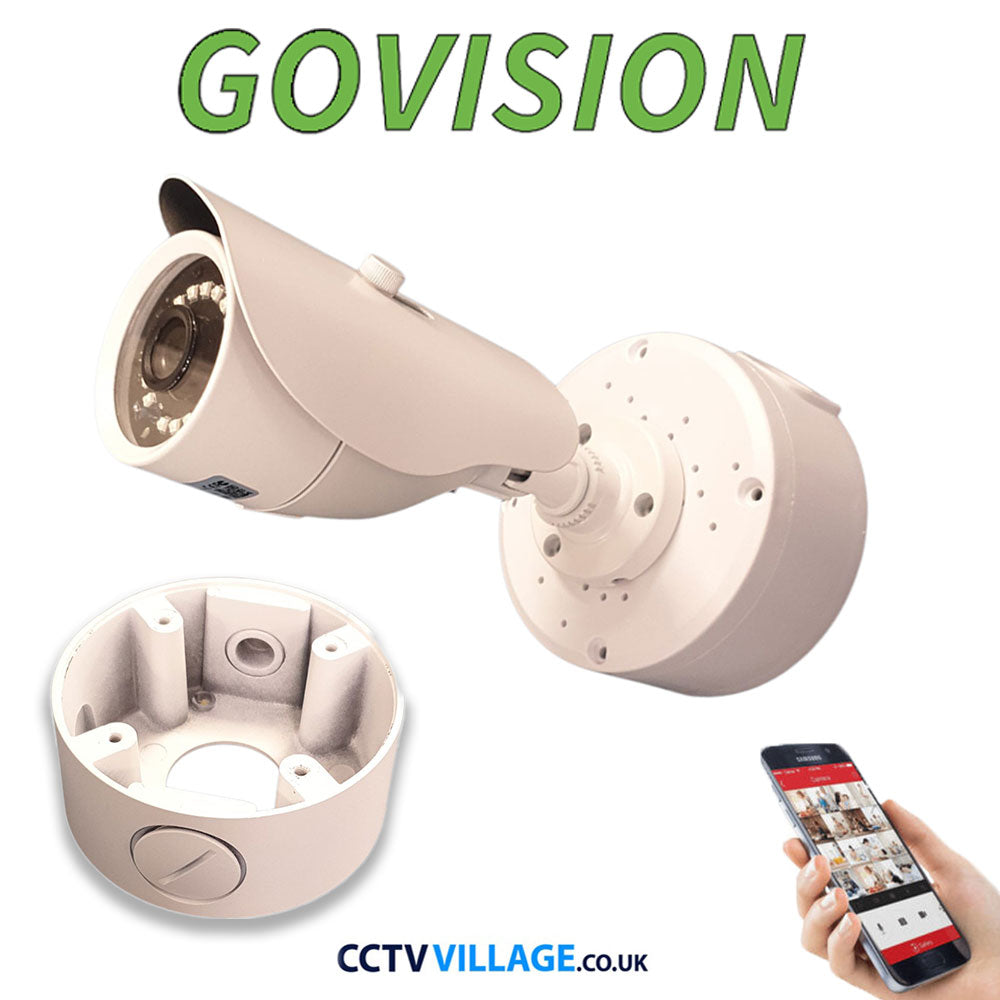

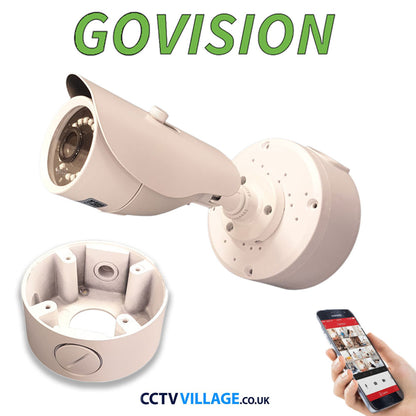

1,2,3 or 4 base for each camera(if you choose the option)

Camera Power Supply

Power supply & mouse for DVR

20m BNC Cable for each camera

NOTE:

If you include the hard drive option, recording will work out of the box.

If you don’t, you must connect your own hard drive; otherwise, the system will only display video and won’t record.

Camera's Technical Specifications:

Camera               GV144BG
Image Sensor:

CMOS Image Sensor
Effective Pixels:

1920 (H) × 1080P (V)
Shutter Time:

Auto 1/30s to 1/50,000 s
Housing COlor:

Grey or White
Adjustment Range:

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day& Night:

IR cut filter with auto switch
Video Frame Rate:

1920 (H) × 1080P (V) @ 15fps
HD Video Output:

1 Analog HD output
Synchronization:

Internal Synchronization
Menu
D/N Mode:

Auto / Color / B/W
Auto White Balance:

Auto/MWB
BLC:

Support
AGC:

Support
Language:

English
General
Operating Conditions:

-10 °C + 55 °C
Humidity 85% RH
Power Supply:

DC12V+/-1V
Weather Proof:

IP67
IR Range:

Up to 20m
Transmission Distance:

75-5 300M
Lens:

3.6mm
Weight:

Approx. 350 g (0.77 lb.)

DVR's Technical Specifications:

4-ch
Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    4CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input    5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVI Input    4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input    Support
IP Video Input    2-ch Up to 6MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate    Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps / 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)
Sub-stream:
WD1/4CIF/CIF@25fpss
Video bit rate    32 Kbps - 10 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    4CH
Network Management
Remote Connections    32
Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    1 SATA interface
Capacity    Up to 8 TB capacity
External Interface
Network interface    1; 10M / 100M self-adaptive Ethernet interface
USB interface    Rear panel: 2 x USB2.0
General
Power supply    12v DC
Consumption    Max 10W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    315 × 242 × 45 mm
Weight    Approx. 1.2Kg
