Govision 8MP CCTV System with 16CH DVR

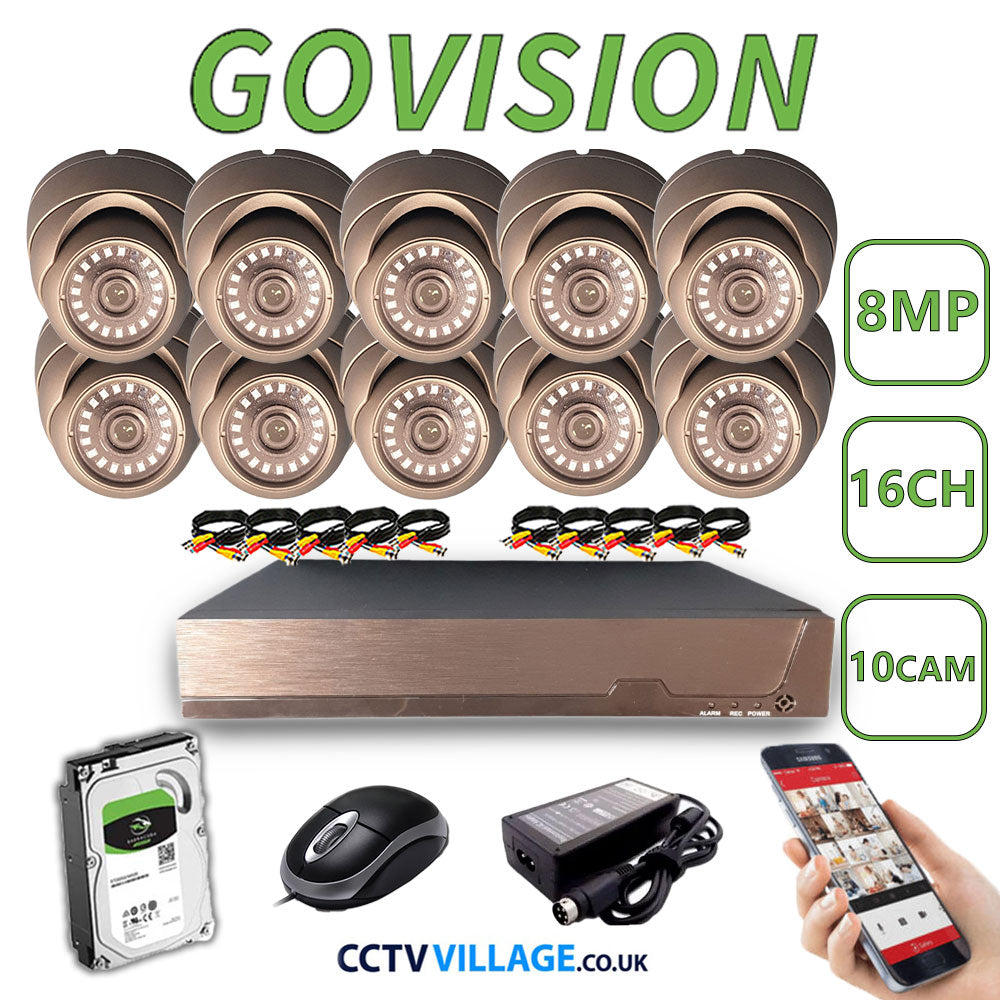

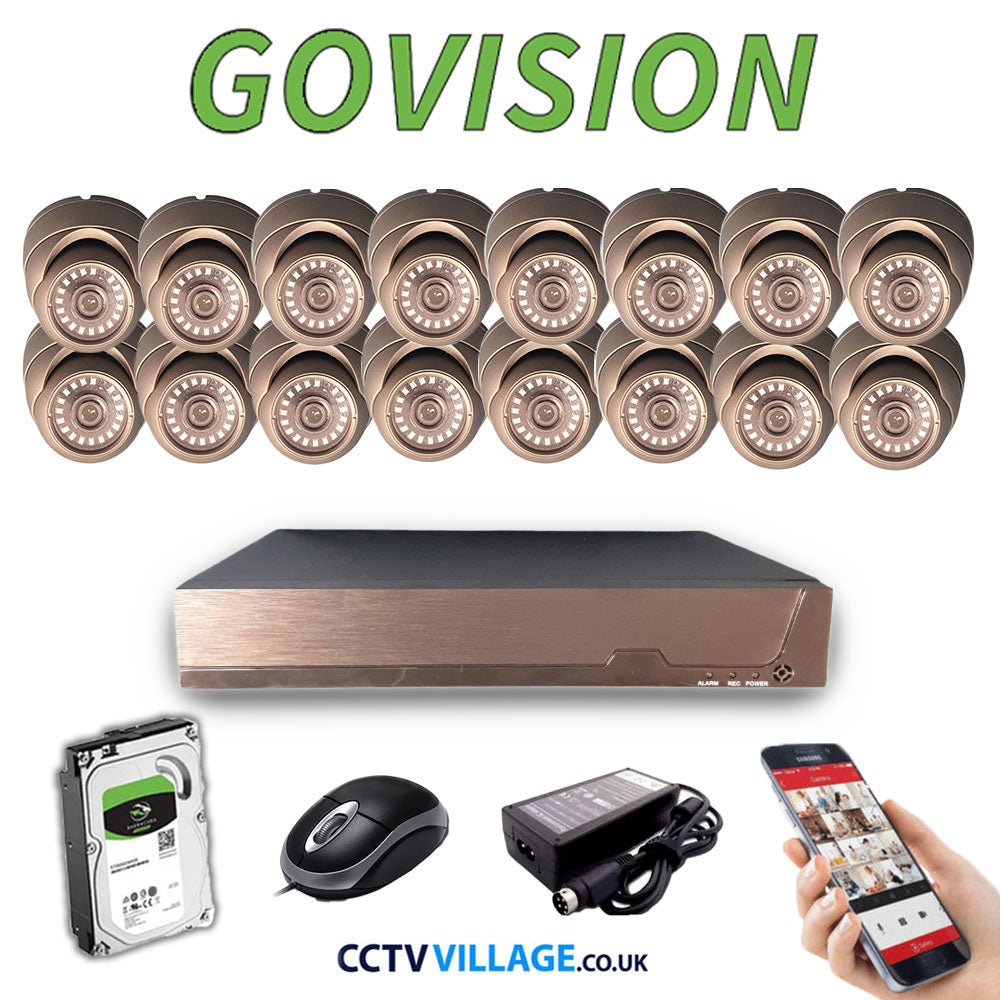

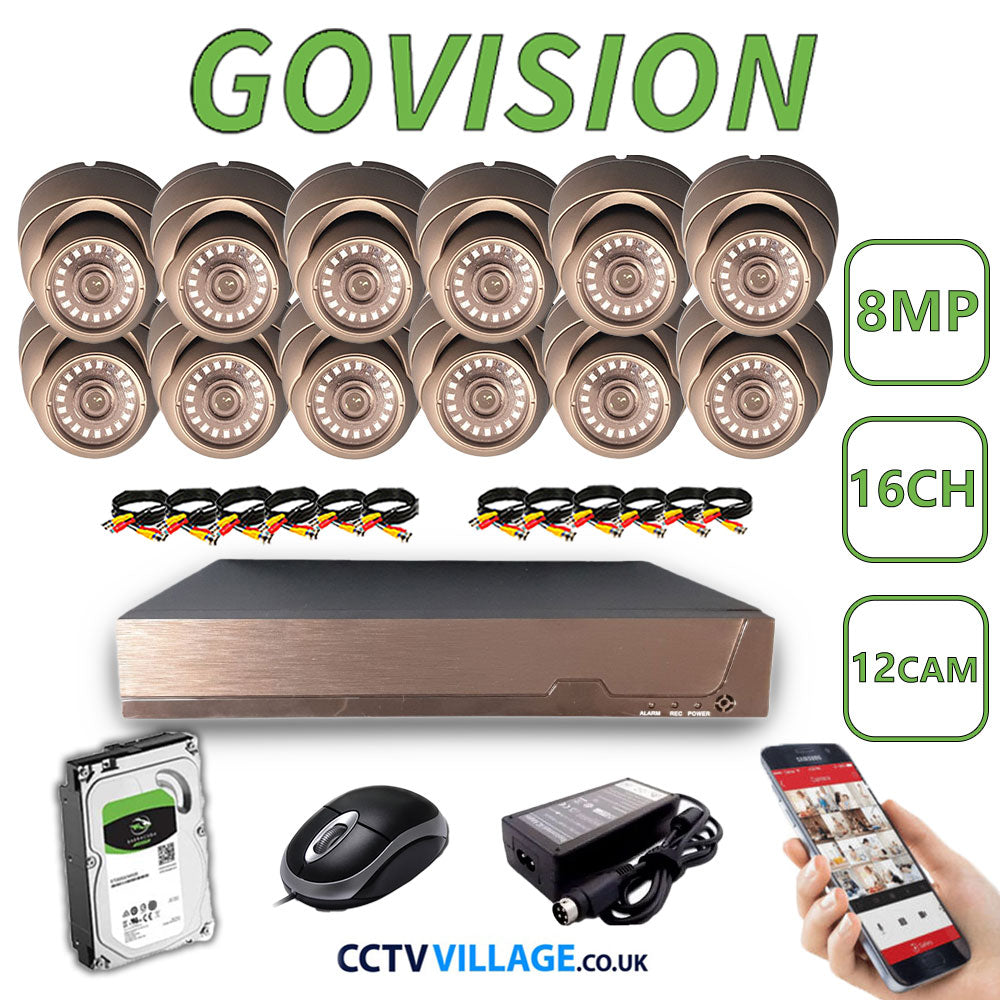

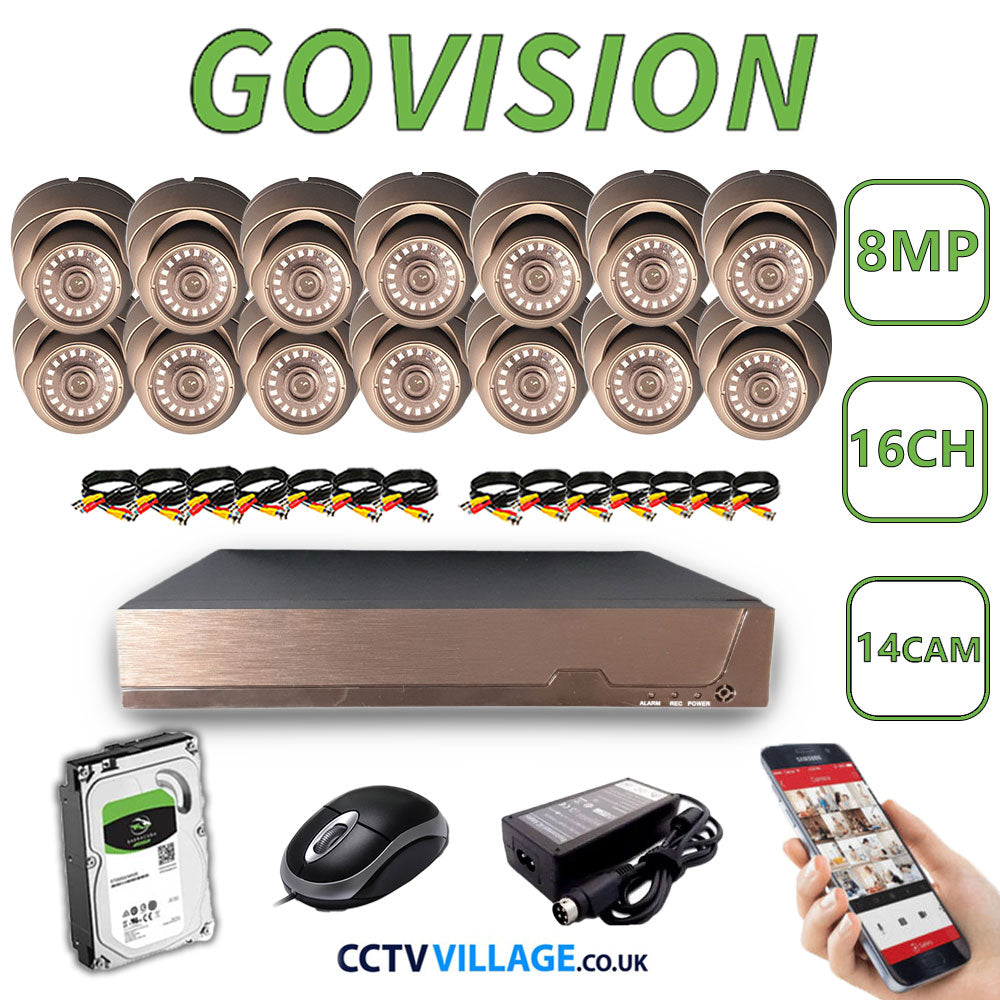

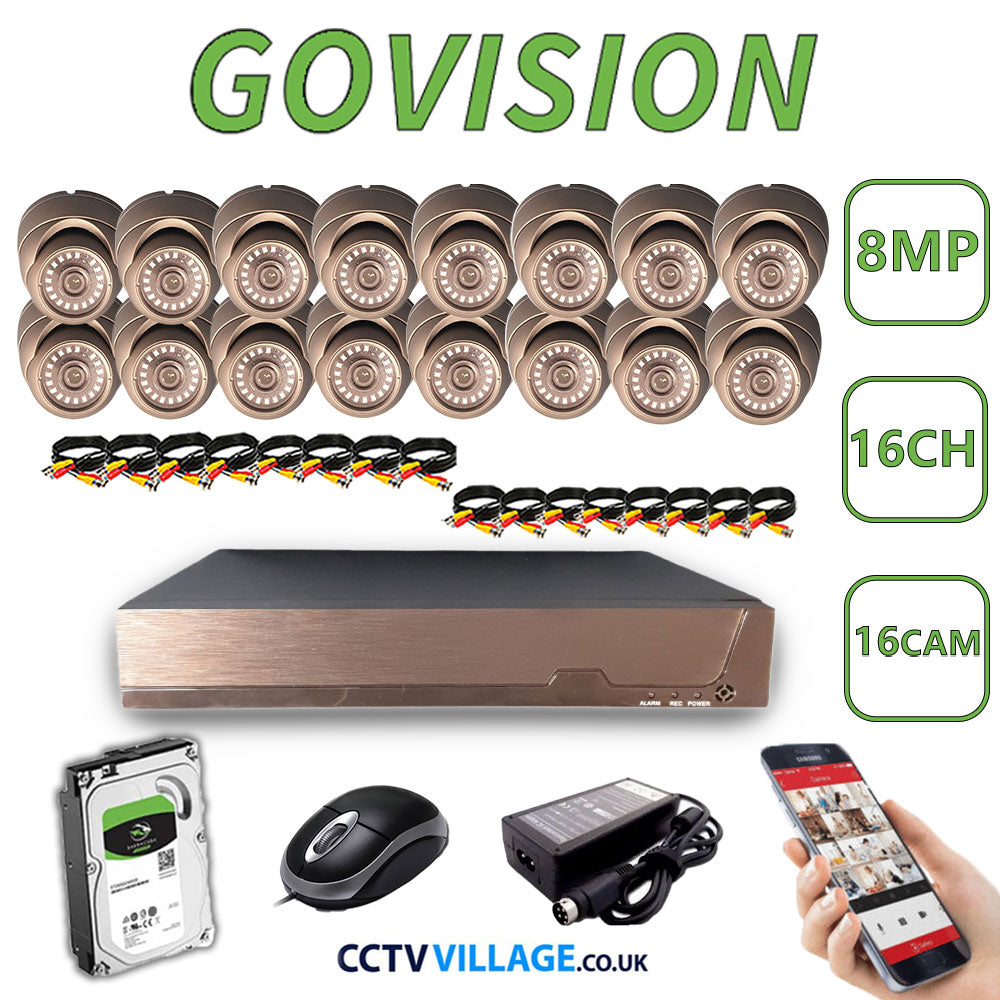

What is included in the box?

1x Govision DVR 16 channel - (DVR-D3016H-8MP)

Up to 16x Govision 8MP camera in grey (GV503TG-8MP)

1TB , 2TB or 4TB HDD installed inside the DVR

10,12,14 or 16 base for each camera (if you choose the option)

Camera power supply

Power supply & mouse for DVR

20m BNC cable for each camera

NOTE:

If you include the hard drive option, recording will work out of the box.

If you don’t, you must connect your own hard drive; otherwise, the system will only display video and won’t record.

Camera's Technical Specifications:

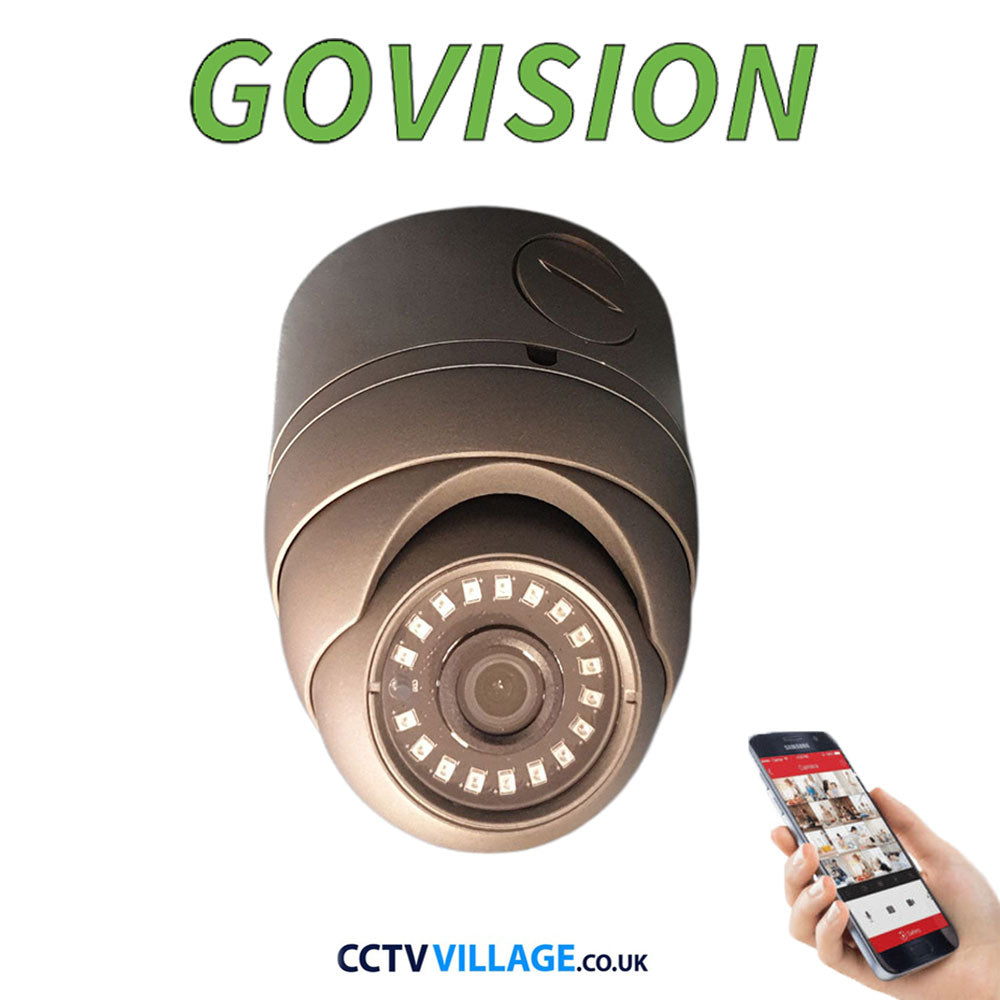

Eyeball Camera

GOVISION 8MP Camera Specification

Image Sensor

8.29 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

TVI:  8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI:  8MP@12.5fps, 8MP@15fps

AHD: 8MP@12.5fps, 8MP@15fps

Resolution

3840 (H) x 2160 (V)

Min. Illumination

Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s

Lens

3.6 mm fixed lens

Horizontal Field of View

102.2°

Lens Mount

M16

Day & Night

IR cut filter

Angle Adjustment (Bracket)

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Synchronization

Internal synchronization

DWDR (Digital Wide Dynamic Range)

105 dB

Menu

AGC

Yes

Day/Night Mode

Auto/ Color/ BW (Black and White)

BLC (Backlight Compensation)

Yes

Language

English

Functions

Brightness, Sharpness DNR, Mirror, Smart IR, HLC

Interface

Video Output

1 HD analog output

Switch Button

TVI/ AHD/ CVI/ CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera

Power Consumption

Max. 5.3W

Protection Level

IP67

Material

Metal

IR Range

Up to 30 m

Communication

Up the coax, Protocol: Hikvision-C (TVI output)

Dimensions

90 mm x 79.37 mm (3.54” x 3.12”)

Weight

Approx. 310 g (0.68 lb.)

Item specifics

Condition
New: A brand-new, unused, unopened and undamaged item in original retail packaging (where packaging ... Read moreabout the condition
Items Included
Camera
MPN
Does not apply
Smart Home Compatibility
DVR 8Mp
Brand
GOVISION
Type
Surveillance Camera
Maximum Resolution
8MP
Model
GOVISION GV503-8MP
Connectivity
BNC
Features
Weatherproof, EXIR Technology
Storage Capacity
NA
Smart Home Protocol
EXIR
Operating Sound Rating
NA
Power
12V
Location
Indoor/Outdoor
Surveillance Technology
CCTV

DVR's Technical Specifications:

16-ch
Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    16CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input    5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVI Input    4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input    Support
IP Video Input    4-ch Up to 6MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate    Main stream:
8 MP@8fps / 5 MP@12fps/4 MP@15fps/3 MP@18fps / 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)
Sub-stream:
WD1/4CIF/CIF@25fpss
Video bit rate    32 Kbps - 10 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    16CH
Network Management
Remote Connections    128
Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    2 SATA interface
Capacity    Up to 8 TB capacity each disk
External Interface
Network interface    1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB interface    Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power supply    12v DC
Consumption    Max 25W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    380 × 320 × 48 mm
Weight    Approx. 2Kg
