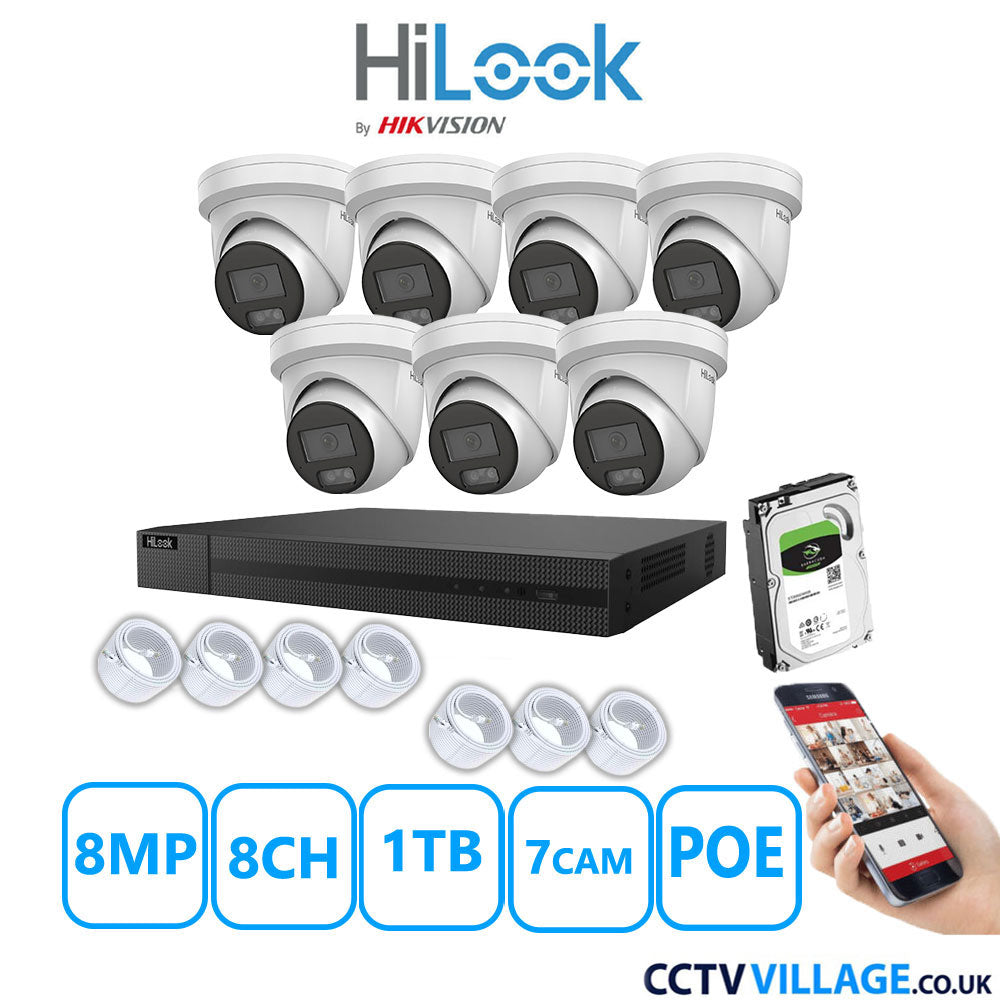

HiLook 8MP IP system seven cameras with audio 1TB

What is included in the box?

1x HiLook NVR 8 channel - (208MH-C/8P)

1TB HDD Installed Inside the NVR

7x HiLook 8MP cameras in White (IPC-T289H-MU)

Cables for each camera (if you choose the option)

Power supply & mouse for the NVR

----------------------------------------------------------------

NVR's Technical Specifications :

Motion Detection 2.0
Human/Vehicle Analysis
4-ch

Video And Audio
IP Video Input
8-ch

Incoming Bandwidth
80 Mbps

Outgoing Bandwidth
80 Mbps

HDMI Output
1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode
HDMI/VGA simultaneous output

Audio Output
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding Format
H.265+,H.265,H.264+,H.264

Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback
8-ch

Decoding Capability
5 x1080P;4-ch@1080p;1-ch@8 MP (30 fps)/3-ch@4MP (30 fps)/6-ch@1080p (30 fps)

Network
Remote Connection
32

Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power
≤ 80 W

Standard
IEEE 802.3 af/at

Auxiliary Interface
SATA
2 SATA interfaces

Capacity
Up to 8 TB capacity for each disk

USB Interface
2 × USB 2.0

General
Power Supply
48 VDC, 2.5 A

Consumption
≤ 15 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity
10 to 90 %

Chassis
1U chassis

Dimension (W × D × H)
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight
≤ 2.6 kg (without HDD, 5.7 lb.)

------------------------------------------------------------------------------

Camera's Technical Specifications :

Camera

Image Sensor
1/2.8" Progressive Scan CMOS

Max. Resolution
3840 × 2160

Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time
1/3 s to 1/100,000 s

Day ＆ Night
24/7 colour imaging

Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Audio
Built-in mic

Lens

Lens Type
Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°

Lens Mount
M12

Iris Type
Fixed

Aperture
F2.0

DORI
DORI
2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m

Illuminator
Supplement Light Type
IR

Supplement Light Range
Up to 30 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video
Main Stream
50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.26

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate
32 Kbps to 16 Mbps

Video Bit Rate
32 Kbps to 16 Mbps

H.264 Type
32 Kbps to 16 Mbps

H.264 Type
Baseline Profile/Main Profile/High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR/VBR

Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream

Audio
Audio Type
Mono sound

Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View
Up to 6 channels

API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users 3 user levels: administrator, operator, and user

Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200, HiLookVision Web Client, HiLookVision App

Web Browser
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch
Yes
Day/Night Switch
Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)
130 dB

SNR
≥ 52 dB

Image Enhancement
BLC, HLC, 3D DNR

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone
Yes

Reset Key
Yes

Event
Basic Event
Motion detection, video tampering alarm, exception

General
Power
12 VDC ± 25%, 0.69 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity

 protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27A to 0.17 A, max: 10 W

Material
Metal
Dimension
Ø138.6mm × 115.2m (Ø5.4" × 4.5")

Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight

Approx. 770 g (1.7 lb.)

With Package Weight
Approx. 1040 g (2.3 lb.)

Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language
English, Ukrainian

Approval

EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, FCC: 47 CFR Part 15, Subpart B

Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013
