Govision 2MP CCTV System with 8CH DVR

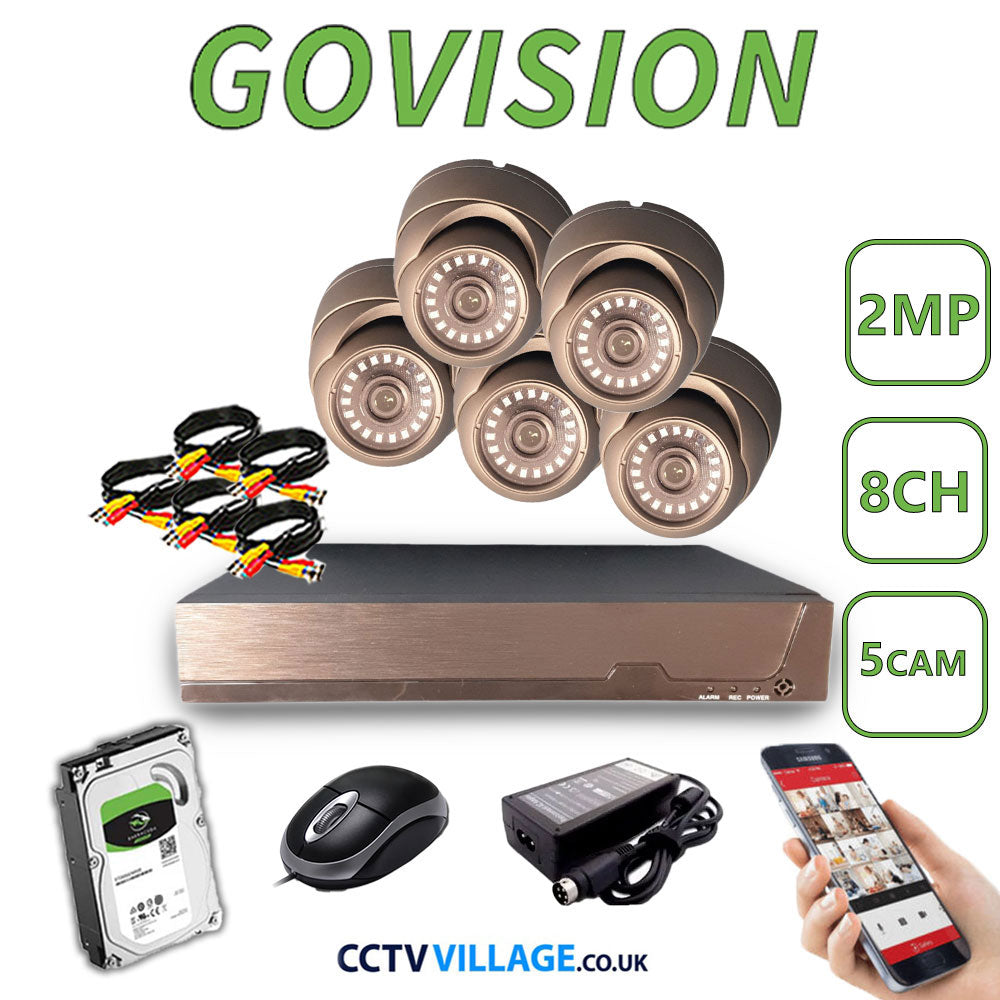

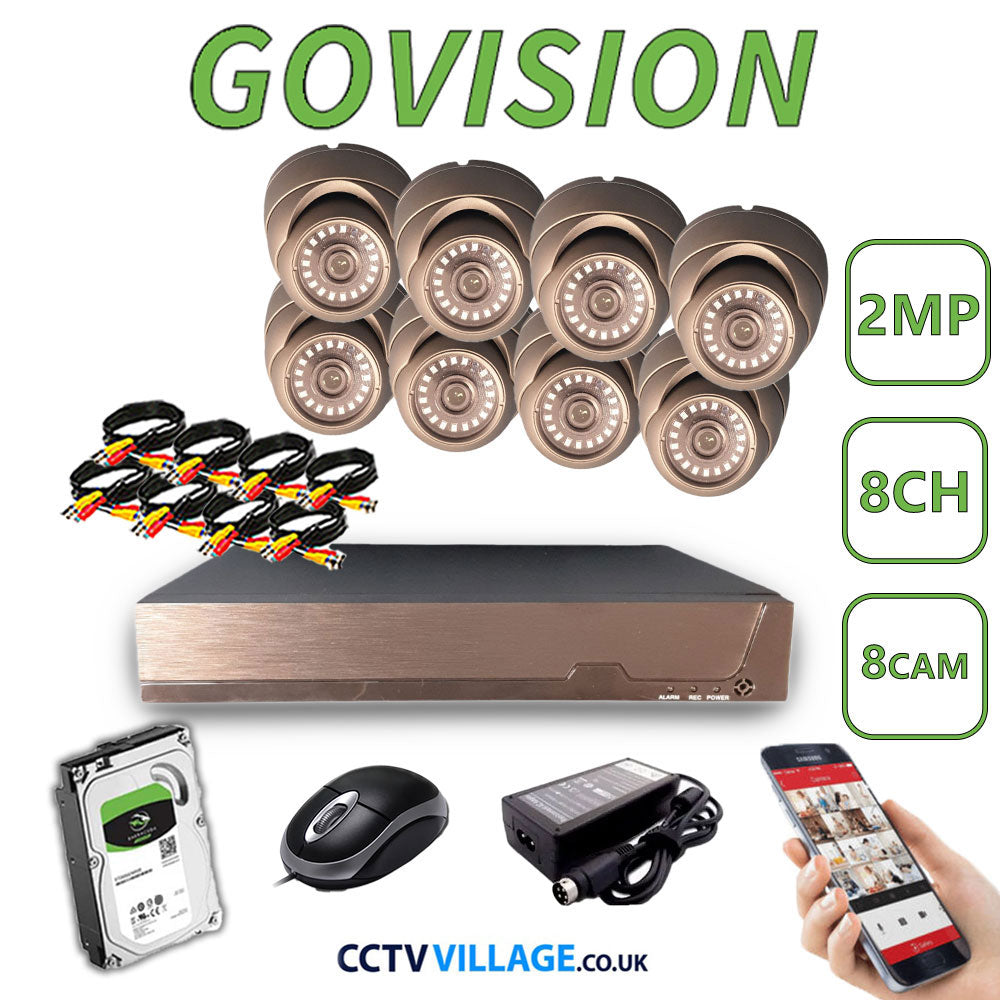

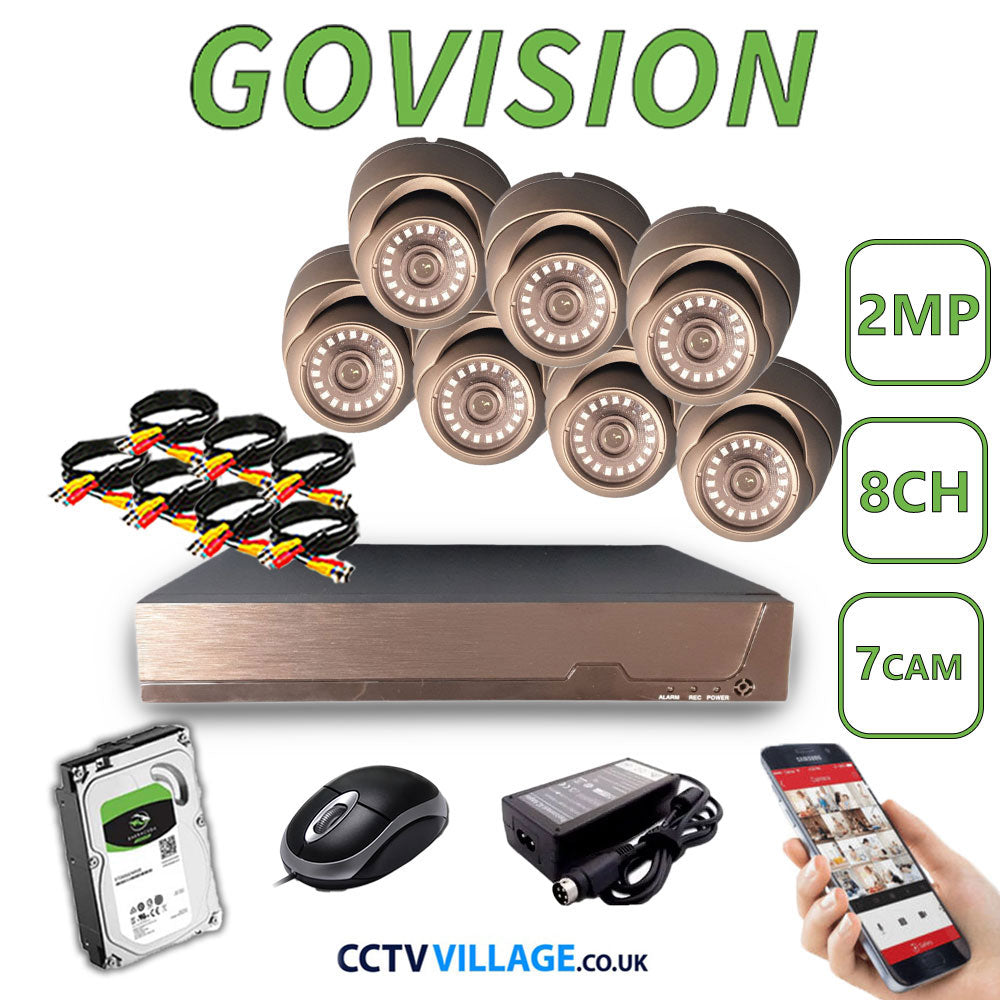

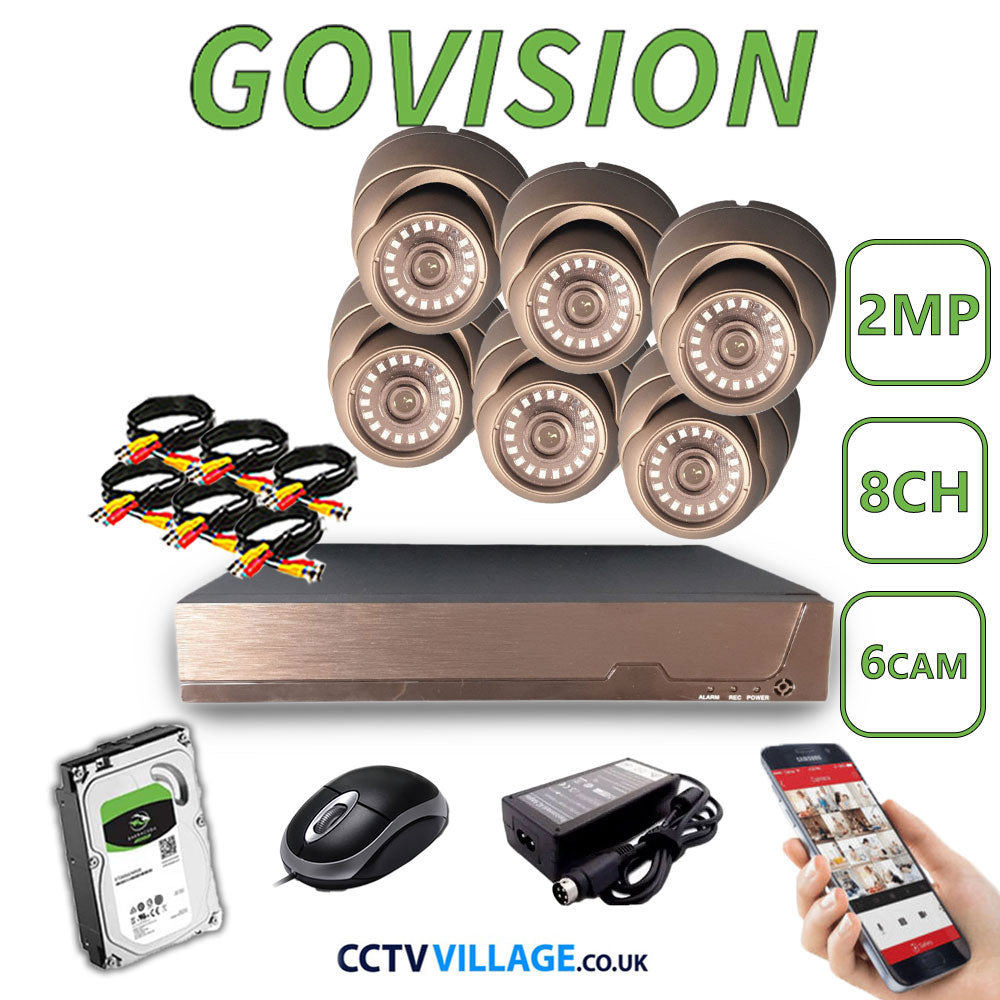

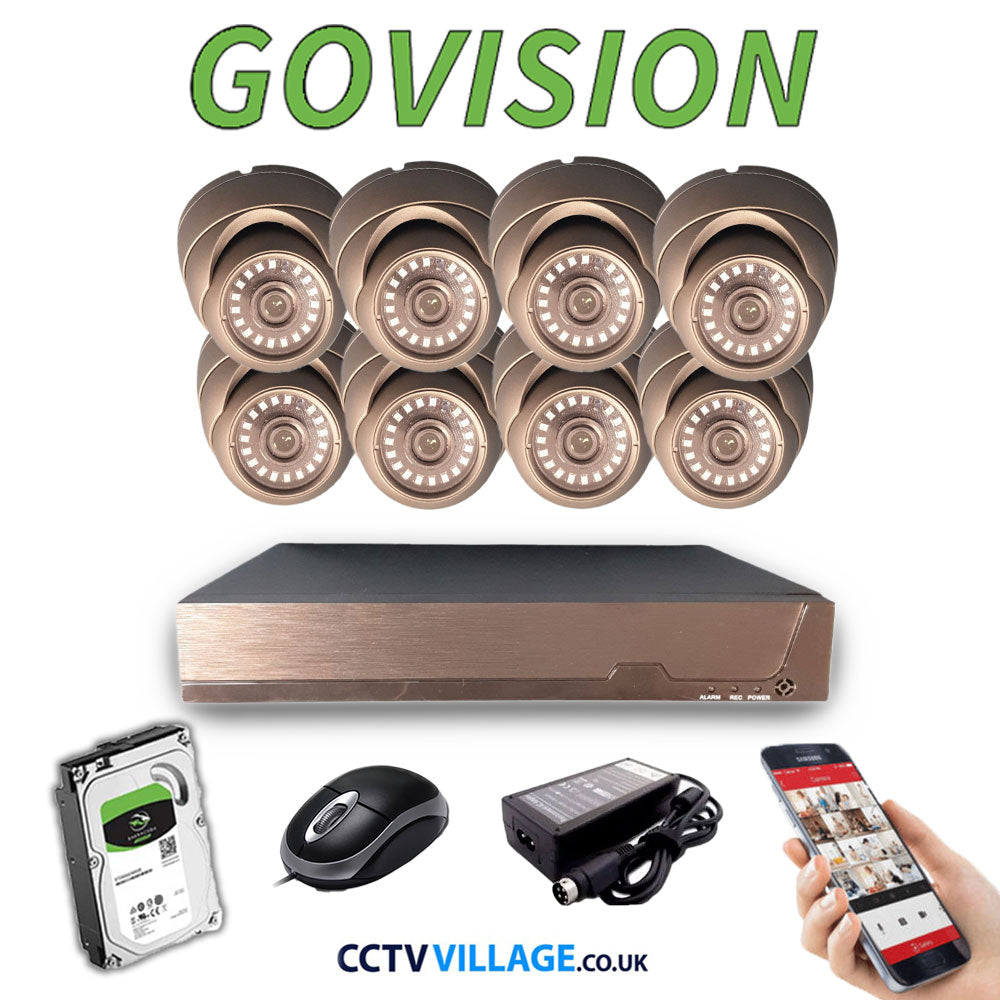

What is included in the box?

1x Govision DVR 8 channel - (DVR-D3008H-2MP)

Up to 8x Govision 2MP camera in grey (GV503TG-2MP)

1TB , 2TB or 4TB HDD installed inside the DVR

5,6,7 or 8 base for each camera (if you choose the option)

Camera power supply

Power supply & mouse for DVR

20m BNC cable for each camera

NOTE:

If you include the hard drive option, recording will work out of the box.

If you don’t, you must connect your own hard drive; otherwise, the system will only display video and won’t record.

Camera's Technical Specifications:

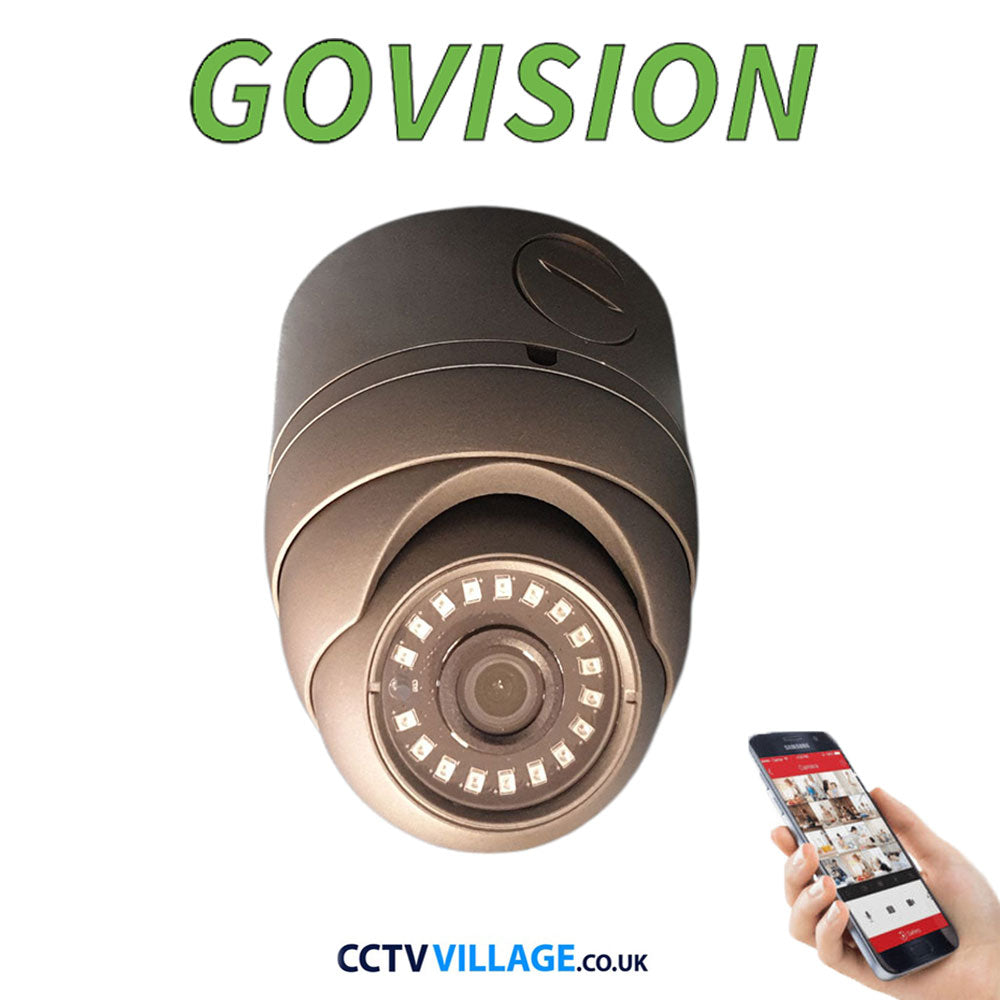

Eyeball Camera

GOVISION 2MP Camera Specification

Image Sensor

8.29 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

TVI:  8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

CVI:  8MP@12.5fps, 8MP@15fps

AHD: 8MP@12.5fps, 8MP@15fps

Resolution

3840 (H) x 2160 (V)

Min. Illumination

Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/12.5 s to 1/50,000 s

NTSC: 1/15 s to 1/50,000 s

Lens

3.6 mm fixed lens

Horizontal Field of View

102.2°

Lens Mount

M16

Day & Night

IR cut filter

Angle Adjustment (Bracket)

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Synchronization

Internal synchronization

DWDR (Digital Wide Dynamic Range)

105 dB

Menu

AGC

Yes

Day/Night Mode

Auto/ Color/ BW (Black and White)

BLC (Backlight Compensation)

Yes

Language

English

Functions

Brightness, Sharpness DNR, Mirror, Smart IR, HLC

Interface

Video Output

1 HD analog output

Switch Button

TVI/ AHD/ CVI/ CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera

Power Consumption

Max. 5.3W

Protection Level

IP67

Material

Metal

IR Range

Up to 30 m

Communication

Up the coax, Protocol: Hikvision-C (TVI output)

Dimensions

90 mm x 79.37 mm (3.54” x 3.12”)

Weight

Approx. 310 g (0.68 lb.)

DVR's Technical Specifications:

8-ch
Video / Audio Input
Video compression    H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input    8CH; BNC interface (1.0Vp-p, 75 Ω)
HD-TVI Input    8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input    5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVI Input    4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input    Support
IP Video Input    4-ch Up to 6MP resolution
Audio compression    G.711u
Audio input / Two-way audio in    1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output    HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1024 × 768/60Hz
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution    8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate    Main stream:
8 MP@8fps / 5 MP@12fps/4 MP@15fps/3 MP@18fps / 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)
Sub-stream:
WD1/4CIF/CIF@25fpss
Video bit rate    32 Kbps - 10 Mbps
Audio output    1-ch, RCA (Linear, 1KΩ)
Audio bit rate    64 Kbps
Dual-stream    Support
Stream type    Video, Video & Audio
Synchronous playback    8CH
Network Management
Remote Connections    64
Network Protocols    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA    1 SATA interface
Capacity    Up to 8 TB capacity
External Interface
Network interface    1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB interface    Rear panel: 2 x USB2.0
General
Power supply    12v DC
Consumption    Max 20W
Working temperature    -10 °C ~ +55 °C
Working humidity    10% ~ 90%
Dimensions (W x D x H)    315 × 242 × 45 mm
Weight    Approx. 2Kg
