Installing a home CCTV (Closed-Circuit Television) system can seem daunting, but with some planning, basic tools, and a little patience, you can achieve a professional-grade setup on your own. This guide will walk you through each stage of the process—planning your installation, choosing the right equipment, running cables, mounting cameras, configuring your recorder and network settings, and performing ongoing maintenance—all in clear, narrative form.
Why Install a CCTV System Yourself?
Choosing to install your own CCTV system offers several benefits. Financially, you avoid paying for professional labor, keeping more of your budget available for quality cameras, recorders, and accessories. Beyond cost savings, a DIY installation gives you complete control over camera placement, system topology, and accessory selection, ensuring the final setup perfectly aligns with your specific security requirements. Furthermore, by handling every step yourself, you’ll gain a deeper understanding of how CCTV technology works, which empowers you to troubleshoot, upgrade, and maintain your system over time without relying on outside help. And best of all, you can work on your own schedule, bypassing the delay often involved in coordinating with a technician’s availability.
Planning Your CCTV Installation
Every successful CCTV project begins well before you break out the drill. Start by taking a close look at your property to understand exactly what you need to protect. Note all entry points—doors, windows, garage doors, and any other places someone might try to gain access. Next, identify areas that face higher risk, such as driveways, backyards, or any blind spots caused by fences, landscaping, or architectural features. Jot these down on a rough sketch or printed floor plan, indicating where a camera’s field of view could cover each spot.
Once you have a map of potential problem areas, decide whether a wired or wireless system makes the most sense. A wired installation—though more laborious due to cable routing—tends to offer superior reliability, especially in environments with spotty Wi-Fi. Wireless systems, on the other hand, allow more flexibility and a quicker setup, but they depend on strong network coverage and may share bandwidth with other devices on your home network. Your choice here will influence the types of cameras you select and the overall installation workflow.
Selecting the Right Equipment
With your plan in hand, it’s time to choose hardware. Bullet cameras—long, cylindrical devices—are ideal for outdoor areas where visibility itself deters intruders, thanks to their conspicuous shape. Dome cameras, which tuck neatly into a dome-shaped housing, provide a subtler, more vandal-resistant option for indoor corners or ceilings. If you need to observe large expanses or follow moving subjects, a PTZ camera (one that can pan, tilt, and zoom under remote control) might be worth the investment. For covert surveillance, tiny hidden cameras can blend into everyday objects.
Beyond cameras, you’ll need either a Digital Video Recorder (DVR) for analog CCTV or a Network Video Recorder (NVR) for IP cameras. DVRs leverage coaxial cables and are often more budget-friendly, though they usually support lower resolutions. NVRs connect via Cat5e or Cat6 Ethernet cables, enabling higher-definition video and simpler integration with remote viewing apps. Your power solution can involve individual adapters for each camera, a centralized power supply box feeding multiple units, or Power over Ethernet (PoE) switches and injectors that deliver data and power over a single cable. Finally, stock up on high-quality cables and connectors—RG59 coaxial or Cat6 Ethernet runs, BNC and RJ45 connectors, DC power plugs—along with basic tools: a power drill, masonry bits, a fish tape for cable pulls, and a good crimping tool.
Preparing for Installation
Before climbing ladders or opening walls, gather all your tools and read through your camera manuals. Safety is paramount: always shut off power before working on electrical connections, use protective eyewear when drilling into masonry, and have someone spot you if you’re on a tall ladder. To decide exact mounting locations, consider temporarily taping up each camera or using a makeshift bracket to preview its field of view. Check these live views through your recorder or mobile app to confirm you’re capturing the intended area. Making adjustments while everything is still temporary will save time later.
Running Cables and Wiring
If you’ve opted for wired cameras, you’ll spend a significant portion of your time running cables. RG59 coaxial cables carry video but require a separate power run, whereas Cat5e or Cat6 Ethernet cables can handle both power (via PoE) and data simultaneously. Plan cable routes that avoid electrical lines to minimize interference, and use wall cavities, attic spaces, or conduits to conceal your runs neatly. When drilling through exterior walls, protect the opening with weatherproof grommets and seal with silicone caulk to keep moisture out. Inside junction boxes, make your BNC, RJ45, and DC power terminations cleanly, secure the cables, and close the covers to guard against accidental pulls or rodents.

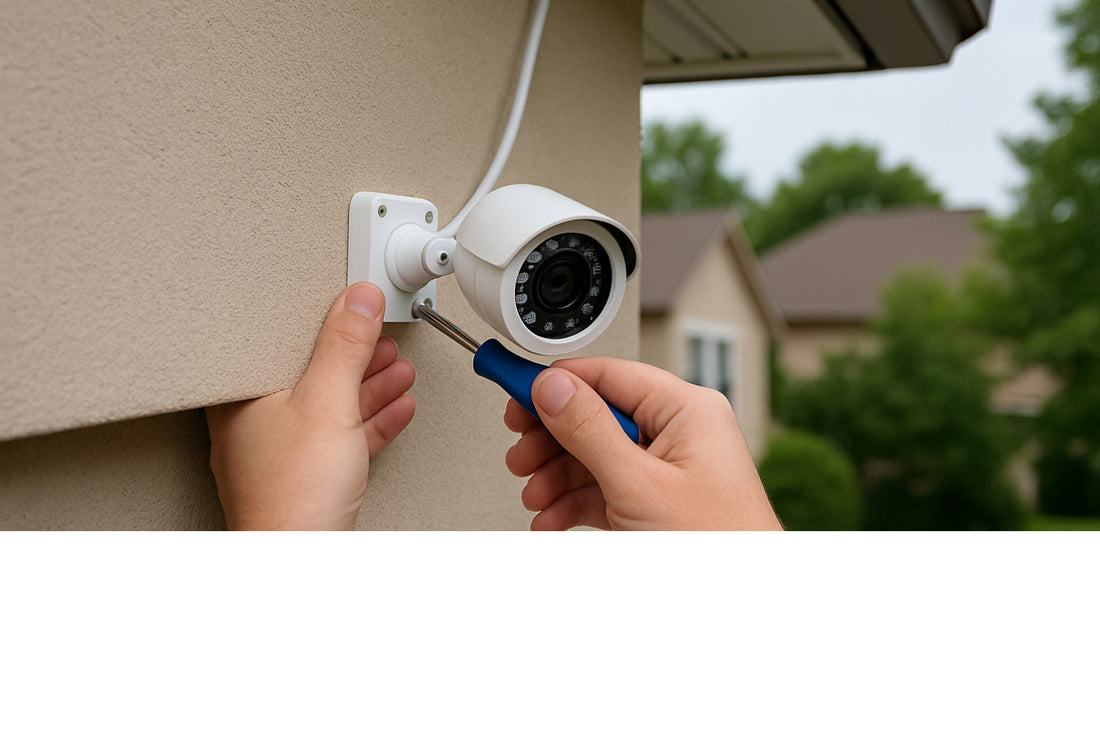

Mounting the Cameras
Mounting methods vary depending on the surface. Wood surfaces take ordinary wood screws and anchors, while brick or concrete requires masonry anchors and appropriately sized bits. Vinyl or aluminum siding installations often involve specialized siding mounts or fasteners that anchor to the structural backing. Always predrill pilot holes to prevent splitting or cracking. As you fasten each camera, use a level to guarantee the housing is straight—crooked mounts lead to off-kilter footage. After securing the unit, seal any exposed edges with silicone to keep water from seeping into housings or cable entry points.
Connecting Your Recorder and Network
Once your cameras are in place, run each video cable back to your DVR or NVR. On analog systems, BNC connectors snap into place; on IP systems, RJ45 plugs click into network ports. Power up your recorder and connect it to a monitor via HDMI or VGA to walk through the initial setup wizard. For remote viewing, assign a static local IP address to the recorder to prevent your router’s DHCP from changing it periodically. In your router’s settings, forward the necessary ports—typically HTTP (port 80) for viewing web interfaces and RTSP (port 554) for streaming video. If your internet service provider issues a dynamic public IP, consider a Dynamic DNS service to link your fluctuating address to a consistent domain name.
Powering Your System
Power-over-Ethernet provides the cleanest installation, combining data and power in one Cat6 cable, but requires a PoE-capable switch or injector. If your cameras aren’t PoE-compatible, you can choose separate DC adapters for each unit or a central power distribution box that feeds multiple cameras from one transformer. In remote or off-grid scenarios, solar panels paired with a charge controller and battery bank can keep cameras running—just ensure your solar setup is sized to meet or exceed the cameras’ power draw, including night-time usage.
Configuring and Optimizing Camera Settings
With hardware connected, dive into your cameras’ settings to fine-tune performance. Select a resolution that balances image clarity with storage capacity; while 4K recording yields exceptionally detailed footage, it also consumes storage rapidly. Set frame rates between 15 and 25 frames per second for smooth motion without overwhelming file sizes. Define motion-detection zones to focus on relevant areas—ignore the busy street or swaying tree branches and catch movement only where it matters. Adjust infrared (IR) levels or consider adding external lighting for clearer night vision. Finally, employ privacy masks to block any neighboring properties or public spaces from recording, respecting privacy regulations.
Testing and Troubleshooting
Before calling your project complete, thoroughly test every component. Switch to each camera’s live view to verify proper positioning, focus, and clarity. Record sample clips and play them back to confirm timestamps, resolution, and smooth playback. Trigger motion alerts and make sure notifications arrive on your phone or email as configured. If you have an alarm or warning light integration, activate it to ensure it responds correctly. Should any cameras lose signal, reexamine cable connections, verify PoE power levels, and check for network congestion. For image issues, clean lenses, adjust bitrate settings in your recorder, or reposition IR illuminators.
Maintenance and Firmware Updates
A CCTV system is far from a “set-and-forget” project; regular upkeep preserves its reliability. Every three to six months, wipe camera lenses and housings clean of dust, debris, or spider webs. Inspect junction boxes, power supplies, and connectors for signs of corrosion, wear, or rodent damage. Log in to your recorder’s interface periodically to check for firmware updates, install patches that close security vulnerabilities, and benefit from new features manufacturers release.
Legal and Privacy Considerations
Before gearing up your cameras, familiarize yourself with local laws regarding video surveillance. Many jurisdictions restrict recording in certain areas—pointing cameras at public sidewalks, neighboring homes, or sensitive zones like dressing areas may breach privacy regulations. Configure your system to avoid infringing on these areas, use clear signage if required, and secure your network with strong, unique passwords and encryption to prevent unauthorized footage access.
Conclusion
Tackling a DIY CCTV installation transforms a potentially costly professional service into a rewarding home improvement project. By carefully planning camera placement, selecting the right hardware, running cables discreetly, and refining system settings, you’ll achieve a surveillance system that not only deters intruders but also provides high-quality evidence if an incident occurs. With periodic maintenance and mindful legal compliance, your DIY CCTV setup will continue safeguarding your home for years to come.
